Shop Legrand CTX³ 3-Pole Motor Contactor 85A AC-3 Modular | 416214 In Iraq Best Prices
Professional 3-pole motor contactor with 85A AC-3 rating, 45kW capacity, modular design, and advanced auxiliary contact configuration for industrial motor control applications.

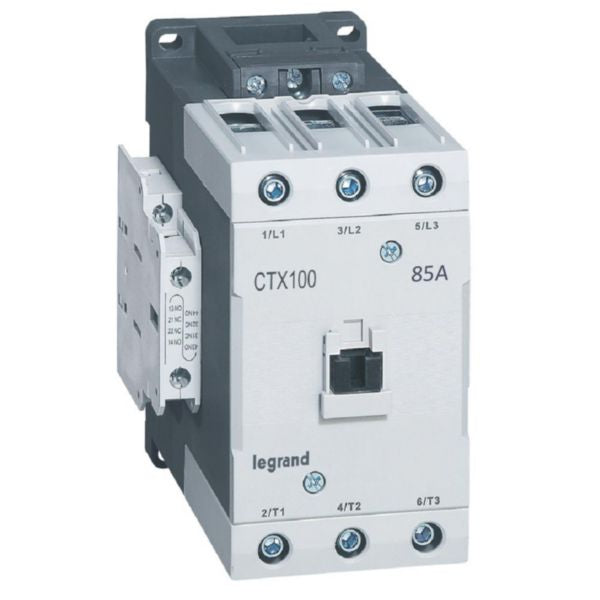

The Legrand CTX³ is a professional-grade 3-pole contactor designed for industrial and tertiary installations, specifically engineered for switching three-phase motors up to 45 kW at 415V. With an 85A AC-3 rating and 135A AC-1 capacity for resistive loads, this modular contactor delivers reliable performance for demanding applications. The device features 2NO + 2NC auxiliary contacts, with the NC auxiliary contact meeting the IEC 60947-4-1 standard definition of mirror contacts, making it ideal for complex control circuits.
Built for durability and longevity, the CTX³ contactor offers exceptional endurance with up to 12 million mechanical operations and 2 million electrical operations. The cage terminal design accommodates power connections from 2.5mm² to 70mm² (single terminal) or 2.5mm² to 50mm² (dual terminals), while coil and auxiliary circuits support 0.75mm² to 2.5mm² connections. Its compact modular design optimizes cabinet space while maintaining full compatibility with all Legrand CTX3 accessories and auxiliaries.
The contactor features flexible coil supply options with the ability to mount on either the top or bottom side, combined with a removable front cover for visual inspection of arc chambers and contacts. Compliant with IEC 60947-4-1 standards and designed with environmental consciousness, the CTX³ represents Legrand's commitment to sustainable, high-performance industrial solutions. The 35mm rail mounting capability and reduced footprint make installation straightforward in both new and retrofit applications.
Key Features
- 85A AC-3 rating for 3-phase motors up to 45 kW at 415V
- 135A AC-1 capacity for resistive loads with superior switching performance
- 2NO + 2NC auxiliary contacts with IEC 60947-4-1 compliant mirror contacts
- 12 million mechanical operations and 2 million electrical operations endurance
- Flexible coil supply on top or bottom with removable front cover for inspection
- Cage terminals supporting 2.5mm² to 70mm² power connections
- 35mm rail mounting for compact cabinet installation
- Full compatibility with Legrand CTX3 accessories and auxiliaries
- Environmentally conscious design with substance-restriction compliance
- Screw connection terminals for secure and reliable wiring
Technical Specifications
| Specification |
Value |
| Product Type | 3-Pole Motor Contactor |
| Model | CTX³ |
| SKU | 416214 |
| EAN Code | 3414970402127 |
| Rated Current AC-3 (400V) | 85 A |
| Rated Current AC-1 (400V) | 135 A |
| Rated Current AC-4 (400V) | 62 A |
| Rated Power AC-3 (415V) | 45 kW |
| Rated Power AC-4 (415V) | 30 kW |
| Control Supply Voltage AC 50Hz | 93.5-121 V |
| Control Supply Voltage AC 60Hz | 93.5-121 V |
| Actuating Voltage Type | AC |
| Main Contacts | 3 Normally Open (3NO) |
| Auxiliary Contacts | 2NO + 2NC |
| Connection Type | Screw Connection |
| Power Terminal Capacity | 2.5mm² to 70mm² (single) / 2.5mm² to 50mm² (dual) |
| Coil Terminal Capacity | 0.75mm² to 2.5mm² |
| Auxiliary Circuit Terminal Capacity | 0.75mm² to 2.5mm² |
| Mechanical Operations | 12 million |
| Electrical Operations | 2 million |
| Operation Cycles Per Hour (AC-3) | 1800 |
| Mounting Type | 35mm Rail Mount (IEC 60715) |
| Coil Supply Position | Top or Bottom |
| Compliance Standards | IEC 60947-4-1 |
| Carbon Footprint (Manufacturing) | 14.25 kg CO₂ eq. |
| Environmental Compliance | RoHS Compliant, REACH Declaration |
| Suitable for Distribution Board | Yes |
| Manufacturer | Legrand |
| Application | 3-Phase Motor Control and Protection |
Order Legrand CTX³ 3-Pole Motor Contactor 85A AC-3 Modular | 416214 at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
