Shop Legrand CTX³ 100A 3-Pole Motor Contactor AC-3 Modular | 416234 In Iraq Best Prices

Professional 100A 3-pole motor contactor with 55 kW capacity, AC-3 rated, featuring 2NO+2NC auxiliary contacts, modular design, and screw connections for reliable industrial motor control applications.

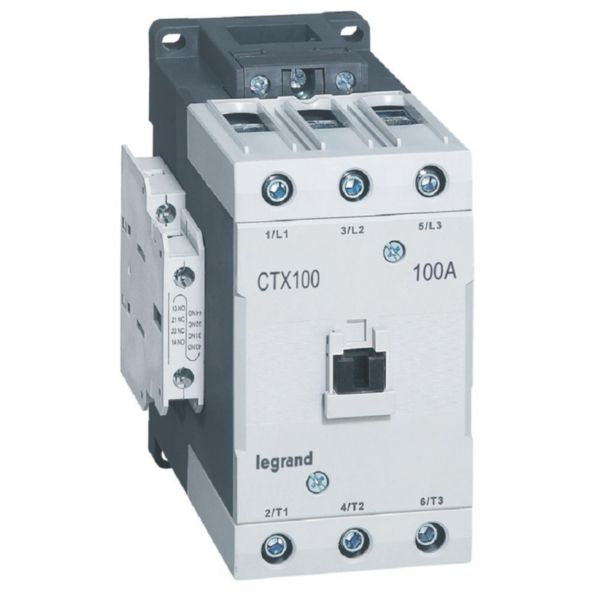

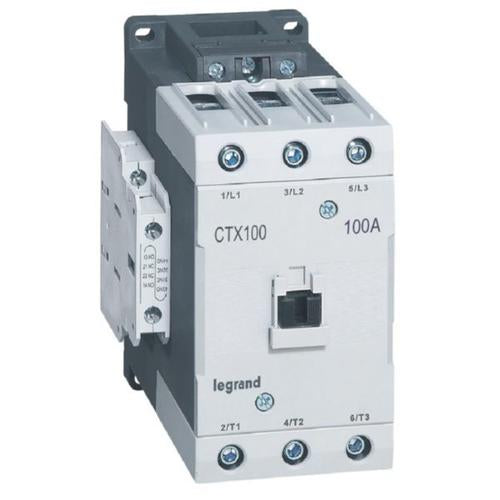

The Legrand CTX³ is a professional-grade 3-pole motor contactor designed for industrial and tertiary installations. With a 100A AC-3 rating, this contactor is engineered to switch 3-phase motors up to 55 kW at 415V, making it ideal for demanding motor control applications. The modular design features screw connections for reliable power distribution, with cage terminals accommodating power conductors from 2.5mm² to 70mm² (single) or 50mm² (dual). This contactor is equipped with 2 normally open (NO) and 2 normally closed (NC) auxiliary contacts, providing comprehensive control flexibility. The NC auxiliary contact meets the IEC 60947-4-1 standard definition of mirror contacts, ensuring precise control logic implementation. Built for exceptional durability and reliability, the CTX³ contactor offers up to 12 million mechanical operations and 2 million electrical operations, with a rated cycle capacity of 1800 operations per hour under AC-3 conditions. The device can handle resistive loads up to 160A at AC-1 rating, demonstrating its versatility across multiple load types. The coil supply can be positioned either on the top or bottom side for flexible installation configurations, and the removable front cover allows for easy visual inspection of arc chambers and contacts. All components are designed with environmental consciousness, complying with substance-restriction requirements and RoHS directives. The CTX³ integrates seamlessly with the complete Legrand CTX3 accessories and auxiliary contact range, allowing for customized configurations to meet specific application requirements. The compact modular design optimizes cabinet space utilization, while the robust construction ensures reliable performance in challenging industrial environments. Whether for motor protection, load switching, or complex control sequences, the CTX³ contactor delivers professional-grade performance backed by Legrand's reputation for electrical excellence.

Key Features

100A AC-3 rating for 3-phase motors up to 55 kW at 415V
2 normally open and 2 normally closed auxiliary contacts with mirror contact design per IEC 60947-4-1
Modular design with screw connections for power (2.5-70mm²) and auxiliary circuits (0.75-2.5mm²)
Exceptional durability: 12 million mechanical operations and 2 million electrical operations
Flexible coil supply positioning (top or bottom) with removable front cover for maintenance
160A resistive load capacity (AC-1) demonstrating versatile load handling
1800 operations per hour cycle rate under AC-3 conditions
Compatible with complete Legrand CTX3 accessories and auxiliary contact range
Space-optimized cabinet design with compact modular footprint
RoHS compliant and environmentally conscious manufacturing process

Technical Specifications

Specification	Value
Product Type	3-Pole Motor Contactor
Rated Control Supply Voltage AC 50 Hz	93.5-121 V (Min-Max)
Rated Control Supply Voltage AC 60 Hz	93.5-121 V (Min-Max)
Voltage Type for Actuating	AC (Alternating Current)
Number of Main Normally Open Contacts	3
Number of Main Normally Closed Contacts	0
Number of Auxiliary NO Contacts	2
Number of Auxiliary NC Contacts	2
Rated Operation Current (AC-1 at 400V)	160 A
Rated Operation Current (AC-3 at 400V)	105 A
Rated Operation Current (AC-4 at 400V)	75 A
Rated Operation Power (AC-3 at 400V)	55 kW
Rated Operation Power (AC-4 at 400V)	37 kW
Electrical Connection Type	Screw Connection
Power Cage Terminal Capacity	2.5mm² to 70mm² (single), 2.5mm² to 50mm² (dual)
Coil Cage Terminal Capacity	0.75mm² to 2.5mm²
Auxiliary Circuit Cage Terminal Capacity	0.75mm² to 2.5mm²
Mechanical Operations Endurance	Up to 12 million operations
Electrical Operations Endurance	Up to 2 million operations
Operations per Hour (AC-3)	1800 cycles
Installation Method	35mm 'top hat' mounting rail (IEC 60715) or mounting plate
Mounting Design	Modular with reduced size for cabinet space optimization
Coil Supply Positioning	Top or bottom side flexible mounting
Auxiliary Contact Configuration	2NO + 2NC factory assembled
Mirror Contact Compliance	NC auxiliary contact meets IEC 60947-4-1 definition
Front Cover	Removable for visual inspection of arc chambers and contacts
Coil Replacement	Easy replacement design with engineered accessibility
Suitable for Distribution Board	Yes
Standard Compliance	IEC 60947-4-1
Environmental Compliance	RoHS Directive compliant, environmentally conscious manufacturing
Product Reference	416234
EAN Code	3414970402523
Carbon Footprint (Manufacturing Phase A1-A3)	14.250 kg CO2 eq.
Accessories Compatibility	All Legrand CTX3 auxiliaries and accessories
Application	Motor control and protection for industrial and tertiary installations

Order Legrand CTX³ 100A 3-Pole Motor Contactor AC-3 Modular | 416234 at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
