Shop Legrand Control Transformer Single-Phase 1000 VA Screw | 44238 In Iraq Best Prices
Single-phase safety transformer with 1000 VA capacity, 230/400V primary to 24/48V secondary, screw terminals, IEC/UL/CSA certified for industrial control applications

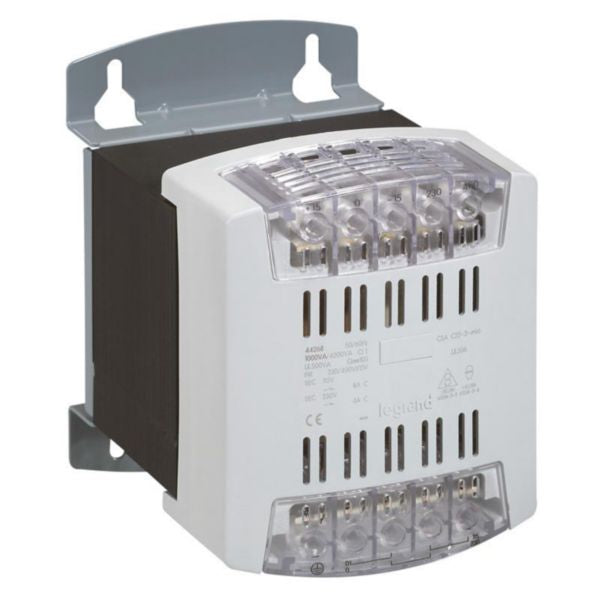

The Legrand Control Transformer (Model 044238) is a single-phase safety and isolating transformer designed for control, safety, and circuit isolation applications in industrial and building equipment. This transformer features primary voltage ratings of 230/400V and secondary voltage outputs of 24/48V, with a rated apparent power of 1000 VA. Built to conform to international standards including IEC EN 61558-2-2, IEC EN 61558-2-4, IEC EN 61558-2-6, UL506, and CSA C22-2 No 66, this transformer ensures reliable performance and safety compliance across multiple markets including USA and Canada.
The transformer is equipped with screw terminals for secure and reliable connections, and comes supplied with 2 coupling strips for flexible installation configurations. It features active parts protected by a cover up to 1000 VA capacity and includes interference filtering capabilities (except for specific catalog numbers). The unit has a degree of protection rated as IP 2X or XXB up to 400 VA, and IP XXA over 400 VA, with an impact strength rating of IK04. With instantaneous admissible power of 2000 VA at cos φ = 0.5, this transformer delivers robust performance for demanding industrial applications.
This control transformer is suitable for building equipment conforming to standards EN 61131-2, EN 60204-1, and EN 60439-1. The product dimensions are 150mm (width) x 199mm (height) x 206mm (depth), making it compact for space-constrained installations. With its comprehensive safety certifications, reliable construction, and versatile voltage conversion capabilities, the Legrand Control Transformer is an essential component for industrial control systems, machinery automation, and building management applications.
Key Features
- Safety and isolating transformer certified to IEC EN 61558-2-2, 2-4, 2-6, UL506, and CSA C22-2 No 66
- 1000 VA rated apparent power with 2000 VA instantaneous admissible power at cos φ = 0.5
- Primary voltage 230/400V ±15V with selectable secondary output 24V or 48V
- Screw terminal connections with supplied coupling strips for flexible installation
- Active parts protected by cover with interference filtering and IP 2X/XXB protection up to 400 VA
- Compact dimensions (150mm x 199mm x 206mm) suitable for DIN rail mounting
- Compliant with EN 61131-2, EN 60204-1, and EN 60439-1 building equipment standards
- Type B insulation material with IK04 impact strength rating
Technical Specifications
| Specification |
Value |
| Product Type | Single-phase control and safety transformer |
| Manufacturer | Legrand |
| Model/Reference | 044238 |
| EAN Code | 3245060442385 |
| Primary Voltage Options | 215V, 230V, 245V, 385V, 400V, 415V (±15V tolerance) |
| Secondary Voltage Options | 24V or 48V (selectable) |
| Rated Apparent Power | 1000 VA |
| Power according to UL Standard | 700 VA |
| Instantaneous Admissible Power | 2000 VA at cos φ = 0.5 |
| Insulation Material Type | Type B (IEC 85) |
| Short-circuit Proof | No |
| Relative Short Circuit Voltage | 2.37% |
| Width | 150 mm |
| Height | 199 mm |
| Depth | 206 mm |
| Degree of Protection (IP Rating) | IP 2X/XXB up to 400 VA; IP XXA over 400 VA |
| Impact Strength Rating (IK) | IK04 |
| Connection Type | Screw terminals |
| Terminal Marking | Yes |
| Ring Core | No |
| PCB Mounting Suitable | No |
| Distribution Board Mounting | No |
| Voltage Type | AC (Alternating Current) |
| Included Accessories | 2 coupling strips (0V secondary/earth connection) |
| Interference Filtering | Yes (except Cat.Nos 0 442 16/17/18) |
| Applicable Standards | IEC EN 61558-2-2, IEC EN 61558-2-4, IEC EN 61558-2-6, UL506, CSA C22-2 No 66, EN 61131-2, EN 60204-1, EN 60439-1 |
| Certifications | UL and CSA certified for USA and Canada |
| Active Parts Protection | Protected by cover up to 1000 VA |
