Shop Legrand Compact LED Beacon Red 1100 Candelas IP65 | 41387 In Iraq Best Prices
Professional compact LED beacon with red lamp hood, 1100 candelas brightness, IP65 protection, and 15 operational modes for industrial signaling applications.

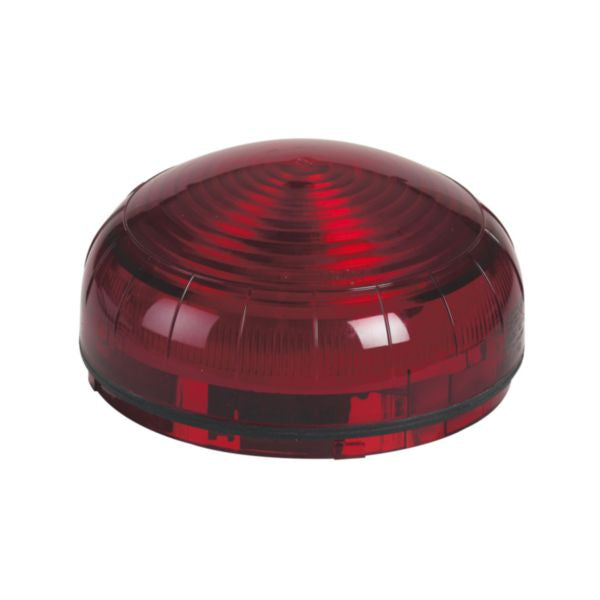

The Legrand Compact Size LED Beacon (Ref. 041387) is a professional-grade illuminated signaling device designed for industrial and commercial applications. This compact LED beacon features a red lamp hood and delivers an impressive 1100 candelas of luminous intensity, making it highly visible in various lighting conditions. With dimensions of 92mm width and 42.5mm height, it offers a space-efficient solution for signaling applications. The beacon is equipped with advanced control capabilities including adjustable light intensity with 3 levels and 5 separate light effects: steady, single flash, double flash, strobe effect, and random pattern.
This LED beacon is designed to be equipped with a compatible base (Cat.No 0 413 81/82/83) and can be controlled via independent electrical contacts and/or push-buttons. It operates on a nominal voltage of 12V AC/DC with a power consumption of 2.94W and an electricity consumption of 0.25A. The device features 15 different operational modes, allowing for flexible configuration based on specific application requirements. The LED light source is non-exchangeable, ensuring durability and consistent performance over an extended operational lifespan.
With its IP65 degree of protection and IK08 impact resistance rating, this beacon is suitable for demanding industrial environments. The plastic housing provides excellent corrosion resistance while maintaining lightweight construction. Operating in ambient temperatures ranging from -30°C to +55°C, the device is dimmable and can function reliably in harsh conditions. The compact design and versatile mounting options make it an ideal choice for manufacturing facilities, warehouses, emergency signaling systems, and other industrial applications requiring reliable visual indication.
Key Features
- Compact design with 92mm width and 42.5mm height for space-efficient installation
- High luminous intensity of 1100 candelas with adjustable brightness in 3 levels
- 5 separate light effects: steady, single flash, double flash, strobe, and random patterns
- 15 different operational modes for flexible configuration and control
- IP65 degree of protection and IK08 impact resistance for harsh industrial environments
- LED light source is non-exchangeable for durability and consistent performance
- Operates on 12V AC/DC with low power consumption of 2.94W
- Dimmable function with independent electrical contact and push-button control
- Operating temperature range from -30°C to +55°C for extreme conditions
- Plastic housing with excellent corrosion resistance
Technical Specifications
| Specification |
Value |
| Product Reference | 041387 |
| EAN Code | 3414971498044 |
| Brand | Legrand |
| Lamp Hood Color | Red |
| Luminous Intensity | 1100 Candelas |
| Width | 92 mm |
| Height | 42.5 mm |
| Degree of Protection | IP65 |
| Impact Resistance | IK08 |
| Nominal Voltage | 12V AC/DC |
| Power Consumption | 2.94 W |
| Electricity Consumption | 0.25 A |
| Lamp Type | LED (Non-exchangeable) |
| Housing Material | Plastic |
| Housing Color | Other |
| Mounting Method | Surface mounting |
| Number of Modes | 15 |
| Blinking Frequency | 720-1000 1/min |
| Ambient Temperature Range | -30°C to +55°C |
| Dimmable | Yes |
| Function - Flashing Light | Yes |
| Function - Blinking Light | Yes |
| Function - Continuous Light | Yes |
| Function - Rotating Light | No |
| Function - Pulsating Light | Yes |
| Solar Operation | No |
| Infrared Capability | No |
| ICAO Approval | No |
| Compatible Base Models | Cat.No 0 413 81/82/83 |
Order Legrand Compact LED Beacon Red 1100 Candelas IP65 | 41387 at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
