Shop Legrand Cam Switch Ammeter PR 12 16A 9 Contacts Screw Fixing | 27534 In Iraq Best Prices
Professional rotary cam switch for ammeter measurement applications with 16A rating, 9 contacts, positive opening, IP40 protection, and screw fixing installation on enclosure doors.

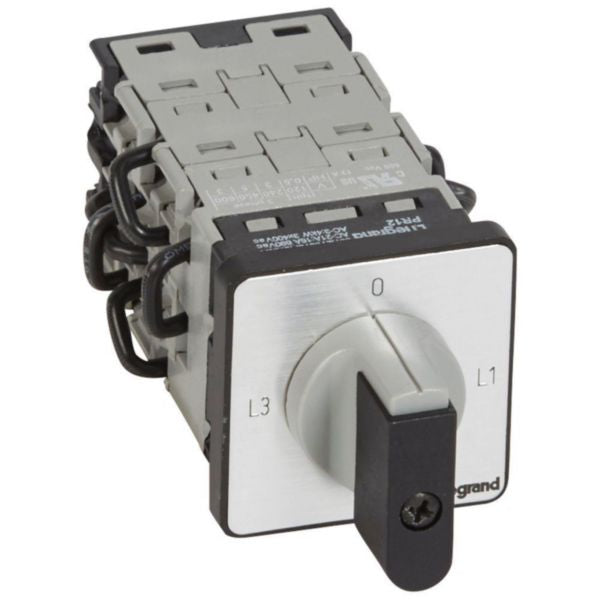

The Legrand Cam Switch Ammeter PR 12 is a professional-grade rotary selector switch designed for selective measurement and circuit status monitoring in industrial and commercial applications. This high-performance switch features 16A maximum rating with 9 contacts and is specifically engineered for ammeter applications without current transformers. The switch is equipped with positive opening contacts and double breaking of poles, ensuring reliable and safe operation in demanding environments. Built with a grey/black selector lever and aluminium faceplate with clear marking, this device provides intuitive operation and easy identification of equipment status. The cam switch is designed for screw fixing installation on enclosure doors, making it ideal for panel-mounted applications where space efficiency and accessibility are critical considerations.
This rotary cam switch complies with international standards IEC EN 60947-3 and carries approvals from UL and CSA for use in USA and Canada markets. The device offers an IP40 degree of protection at the front of the enclosure where the selector lever is located, and IP2X protection at the back of the enclosure up to PR 26 models. The three independent contact terminals with common point configuration provide flexible circuit switching capabilities for complex measurement and control systems. With its robust construction and reliable performance, this Legrand cam switch is ideal for applications requiring precise circuit selection and status indication in industrial control panels and electrical distribution boards.
The PR 12 model is part of Legrand's comprehensive range of cam switches and represents the perfect balance between functionality, reliability, and ease of installation. Whether used in power distribution systems, machinery control panels, or measurement applications, this switch delivers consistent performance and long service life. The product comes with comprehensive technical documentation and instruction manuals to ensure proper installation and operation.
Key Features
- 16A maximum rating AC 21 with 9 contact terminals for flexible circuit configuration
- Positive opening contacts with double breaking of poles for enhanced safety and reliability
- Three independent contact terminals with common point for ammeter applications without current transformers
- IP40 front protection and IP2X back protection for secure operation in industrial environments
- Compliant with IEC EN 60947-3 standard and approved by UL and CSA for international markets
- Grey/black selector lever with aluminium faceplate and clear marking for intuitive operation
- Screw fixing installation on enclosure doors for easy panel mounting and maintenance
- Robust construction designed for long service life in demanding industrial applications
Technical Specifications
| Specification |
Value |
| Product Type | Rotary Cam Switch - Ammeter Selector |
| Model | PR 12 |
| Maximum Rating AC 21 | 16 Amperes |
| Number of Contacts | 9 contacts |
| Contact Configuration | 3 independent contacts with common point, without current transformers |
| Contact Type | Positive opening with double breaking of poles |
| Installation Method | Screw fixing on enclosure door |
| Selector Lever | Grey/black with clear marking |
| Faceplate Material | Aluminium |
| Degree of Protection Front | IP40 |
| Degree of Protection Back | IP2X (up to PR 26) |
| Device Construction | Front installation on enclosure door |
| Control Element | Yes - Rotary selector lever |
| Zero Position | No |
| Standards Compliance | IEC EN 60947-3 |
| International Approvals | UL and CSA (USA and Canada) |
| Reference Number | 027534 |
| EAN Code | 3245060275341 |
| Manufacturer | Legrand |
| Application | Industrial control panels, distribution boards, measurement systems |
Order Legrand Cam Switch Ammeter PR 12 16A 9 Contacts Screw Fixing | 27534 at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
