Shop Legrand Auto-Transformer Single Phase Protected 400/230V 0.5kVA | 42284 In Iraq Best Prices
Premium single-phase auto-transformer with 400/230V conversion, 0.5kVA power rating, IP55 protection, and full reversibility for reliable voltage management in professional applications.

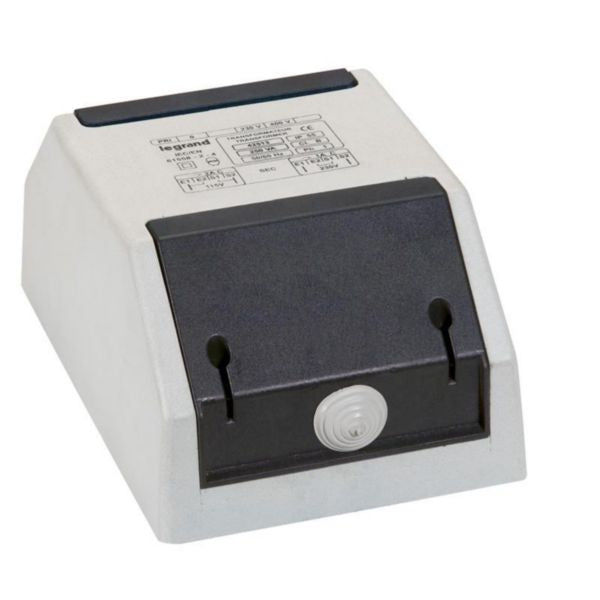

The Legrand Auto-Transformer Single Phase Protected is a premium quality transformer designed for efficient voltage conversion and power management in residential and commercial applications. This single-phase auto-transformer operates at 400/230V with a rated power of 0.5 kVA and features full reversibility, allowing it to step down from 400V to 230V or step up from 230V to 400V. The transformer is IP55 rated for environmental protection and complies with international standard IEC 61558-2-13, ensuring safety and reliability.
This energy-efficient transformer is constructed with Class II insulation material and features short-circuit protection capabilities. The unit is equipped with flexible cable terminals rated at 4 mm² on both primary and secondary sides, facilitating easy installation and connection. With dimensions of 207mm width, 100mm height, and 122mm depth, it offers a compact footprint suitable for various installation scenarios. The transformer delivers consistent performance with a relative short-circuit voltage of 9.5%, ensuring stable operation under normal and fault conditions.
Designed for professional use, this Legrand transformer meets all regulatory requirements including RoHS compliance and is backed by comprehensive technical documentation. The IP55 degree of protection ensures the unit remains operational in challenging environments with dust and moisture exposure. Whether for industrial control circuits, residential voltage conversion, or commercial applications, this auto-transformer provides reliable and efficient power distribution.
Key Features
- Full reversibility allowing 400V to 230V step-down or 230V to 400V step-up conversion
- IP55 degree of protection for dust and moisture resistance in demanding environments
- Class II insulation material for enhanced safety and reliability
- Compliant with international IEC 61558-2-13 standard for transformer safety
- Compact dimensions (207x100x122mm) with flexible 4mm² cable terminals for easy installation
- Energy-efficient design with 9.5% relative short-circuit voltage for stable operation
- RoHS compliant with comprehensive technical documentation
- Short-circuit protection capability for circuit integrity
Technical Specifications
| Specification |
Value |
| Product Type | Single-Phase Auto-Transformer |
| Primary Voltage | 400V AC |
| Secondary Voltage | 230V AC |
| Rated Apparent Power | 0.5 kVA (500 VA) |
| Reversibility | Yes - 400/230V or 230/400V |
| Insulation Class | Class II |
| Degree of Protection | IP55 |
| Primary Cable Terminal | Flexible cable 4 mm² |
| Secondary Cable Terminal | Flexible cable 4 mm² |
| Relative Short-Circuit Voltage | 9.5% |
| Width | 207 mm |
| Height | 100 mm |
| Depth | 122 mm |
| Short-Circuit Protection | No |
| Ring Core | No |
| PCB Mounting | Not suitable |
| Distribution Board Mounting | Not suitable |
| Safety Transformer | No |
| Isolating Transformer | No |
| Energy Saving Transformer | Yes |
| Compliance Standard | IEC 61558-2-13 |
| RoHS Compliance | Yes |
| Manufacturer | Legrand |
| Reference Number | 042284 |
| EAN Code | 3245060422844 |
Order Legrand Auto-Transformer Single Phase Protected 400/230V 0.5kVA | 42284 at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
