Shop Legrand Auto-Transformer Single Phase Protected 400/230V 0.25kVA | 42282 In Iraq Best Prices
Premium single-phase auto-transformer with 0.25kVA capacity, 400/230V reversible voltage conversion, IP55 protection, and Class B insulation for reliable industrial applications.

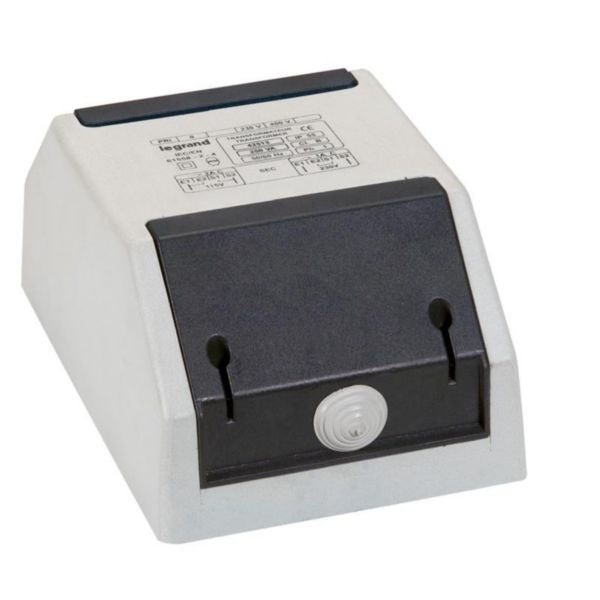

The Legrand Auto-transformer Single Phase Protected is a high-quality industrial transformer designed for single-phase applications with voltage conversion capabilities from 400V to 230V or vice versa through reversibility. With a rated apparent power of 0.25 kVA, this transformer is built to IEC 61558-2-13 standards and offers IP55 degree of protection, making it suitable for various industrial and commercial environments. The unit features flexible cable terminals with 4 mm² cross-section on both primary and secondary sides, ensuring secure and reliable connections.
This energy-saving transformer is constructed with Class B insulation material and includes built-in protection mechanisms. The compact design measures 182 mm in width, 92 mm in height, and 112 mm in depth, making it easy to integrate into existing installations. With a relative short circuit voltage of 7.3%, the transformer provides stable performance and reliable operation. The unit is fully compliant with safety standards and RoHS directives, ensuring environmental responsibility and safety compliance.
The auto-transformer's reversibility feature allows seamless voltage conversion in both directions, making it versatile for different applications. Whether you need to step down voltage from 400V to 230V or step up from 230V to 400V, this transformer delivers consistent and reliable performance. The IP55 protection rating ensures protection against dust and water jets, making it suitable for both indoor and outdoor installations in industrial settings.
Key Features
- Reversible voltage conversion from 400V to 230V or 230V to 400V for flexible applications
- IP55 degree of protection against dust and water jets for indoor and outdoor use
- Class B insulation material for reliable long-term performance and safety
- Flexible cable terminals 4 mm² on both primary and secondary sides for secure connections
- Energy-saving design compliant with IEC 61558-2-13 standards and RoHS directives
- Compact dimensions (182x92x112 mm) for easy integration into existing installations
- Relative short circuit voltage of 7.3% for stable and consistent operation
Technical Specifications
| Specification |
Value |
| Product Type | Auto-transformer, Single-phase |
| Primary Voltage | 400V AC |
| Secondary Voltage | 230V AC |
| Rated Apparent Power | 0.25 kVA (250 VA) |
| Primary Cable Terminal | Flexible cable 4 mm² |
| Secondary Cable Terminal | Flexible cable 4 mm² |
| Insulation Class | Class B |
| Degree of Protection | IP55 |
| Relative Short Circuit Voltage | 7.3% |
| Width | 182 mm |
| Height | 92 mm |
| Depth | 112 mm |
| Standards Compliance | IEC 61558-2-13 |
| Environmental Compliance | RoHS Directive compliant |
| Energy Efficiency | Energy-saving design |
| Ring Core | No |
| PCB Mounting | Not suitable |
| Distribution Board Mounting | Not suitable |
| Short-circuit Proof | No |
| Reversibility | Yes, 400V to 230V or 230V to 400V |
Order Legrand Auto-Transformer Single Phase Protected 400/230V 0.25kVA | 42282 at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
