Shop Legrand Arteor TV Socket TV-R-SAT-SAT Shielded 2 Modules White | 572169 In Iraq Best Prices
Premium shielded TV socket with dual SAT inputs, LTE-ready protection, UHD compatibility, and low attenuation for superior signal quality in residential installations.

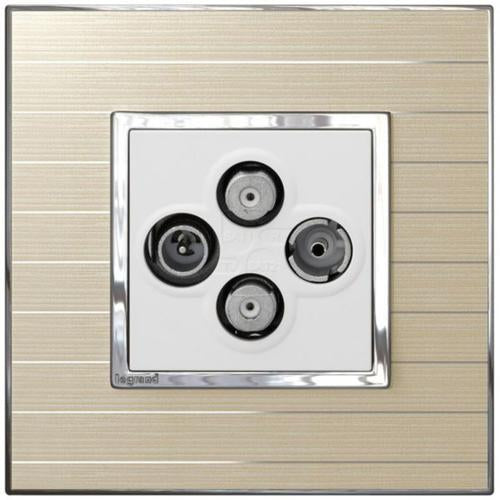

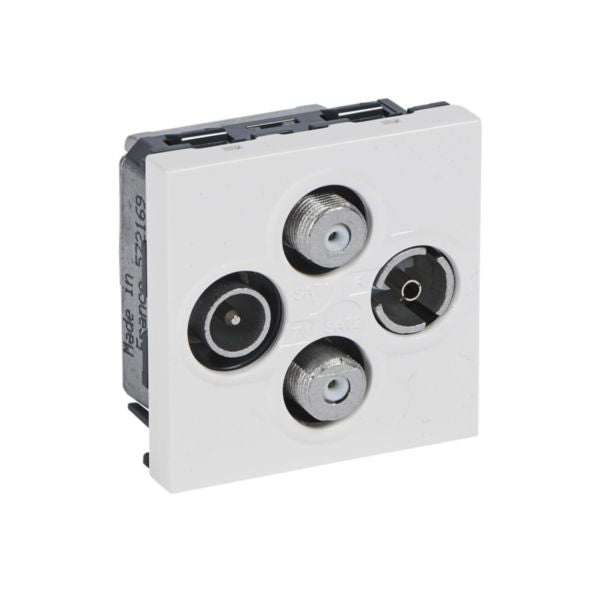

The Legrand Arteor TV Socket is a premium multi-function television outlet designed for modern home entertainment systems. This shielded socket supports multiple signal types including TV, Radio, and Satellite transmissions across a comprehensive frequency range from 0-2400 Hz. The socket features advanced LTE-ready shielding technology that provides protection against 4G interference, ensuring crystal-clear signal reception. With its Class A shielded star socket design, this outlet delivers exceptional performance for DVB-T, cable broadcast, and satellite installations while maintaining UHD TV quality compatibility. The socket is equipped with two modules providing four separate outlets: one for TV-R-SAT1 input and one for SAT2 input, allowing flexible connectivity options for complex home theater setups.
This Arteor television socket is engineered to meet stringent European standards including EN 50083-4 and EN 50083-2 directives, guaranteeing reliable performance and safety. The socket features low attenuation characteristics at critical frequencies (1.5 dB at 860 MHz and 2 dB at 2150 MHz), ensuring minimal signal loss and superior picture quality. The integrated visual connection check system allows users to verify proper installation and connectivity at a glance. The white thermoplastic housing is halogen-free and provides IP20 protection with IK04 impact resistance, making it suitable for residential and small commercial applications.
The socket employs star cabling architecture where each socket requires one dedicated cable to the antenna, splitter, or multiswitch, optimizing signal integrity and reducing interference. Compatible with the recommended 17 VATCA coaxial cable, this outlet can be installed in standard receptacles for floor sockets or wall-mounted installations. The compact 45mm x 45mm x 40mm design fits seamlessly into modern electrical installations while the 27mm minimum built-in installation box depth accommodates most standard electrical boxes.
Key Features
- Dual SAT inputs with TV-R-SAT1 and SAT2 connectivity options
- LTE-ready Class A shielded design protecting against 4G interference
- UHD TV quality compatible with DVB-T, cable broadcast, and satellite installations
- Low attenuation performance: 1.5 dB at 860 MHz and 2 dB at 2150 MHz
- Star cabling architecture optimizing signal integrity and reducing interference
- Compliant with European standards EN 50083-4 and EN 50083-2
- Visual connection check system for easy installation verification
- Halogen-free thermoplastic housing with IP20 protection and IK04 impact resistance
- Four separate outlets for flexible multi-device connectivity
- Frequency range 0-2400 Hz supporting comprehensive signal reception
Technical Specifications
| Specification |
Value |
| Product Name | Arteor TV Socket TV-R-SAT-SAT Shielded 2 Modules White |
| Reference Number | 572169 |
| EAN Code | 3414970940926 |
| Brand | Legrand |
| Socket Type | TV/RD/SAT Multi-function |
| Number of Modules | 2 modules |
| Number of Outlets | 4 outlets |
| Frequency Range | 0-2400 MHz |
| TV Frequency Range | 5-68 MHz and 120-862 MHz |
| Radio Frequency Range | 87.5-108 MHz |
| SAT Frequency Range | 950-2400 MHz |
| Tap Loss at 860 MHz | 1.5 dB |
| Tap Loss at 2150 MHz | 2 dB |
| Connector Type - TV | Male connector Ø9.5 mm |
| Connector Type - Radio | Female connector Ø9.5 mm |
| Connector Type - SAT | F-type connector |
| Shielding Class | Class A shielded star socket |
| LTE Protection | LTE ready (4G protected) |
| Cable Modem Compatible | No |
| Remote Power Supply Compatible | Yes |
| Color | White |
| RAL Number (Similar) | 9003 |
| Material | Thermoplastic |
| Halogen Free | Yes |
| Antimicrobial Treatment | No |
| Surface Protection | Untreated |
| Surface Finishing | Glossy |
| Degree of Protection (IP) | IP20 |
| Impact Strength (IK) | IK04 |
| Device Width | 45 mm |
| Device Height | 45 mm |
| Device Depth | 40 mm |
| Minimum Installation Box Depth | 27 mm |
| Operating Temperature Range | 5-45 °C |
| Storage Temperature Range | -25-70 °C |
| Mounting Method | Module frame |
| Installation Type | Floor socket or wall-mounted |
| Recommended Cable | 17 VATCA coaxial cable |
| Cabling Architecture | Star cabling (1 socket = 1 cable to antenna/splitter/multiswitch) |
| European Standards Compliance | EN 50083-4 and EN 50083-2 |
| UHD Compatibility | Yes |
| DVB-T Compatible | Yes |
| Cable Broadcast Compatible | Yes |
| Satellite Installation Compatible | Yes |
| Visual Connection Check | Yes |
| DAB+ Support | No |
