Professional Arteor TV-R-SAT-SAT shielded socket with dual satellite connections, UHD compatible, LTE ready 4G protection, 2 modules, soft aluminum finish, Class A shielded design for optimal signal quality and minimal attenuation.

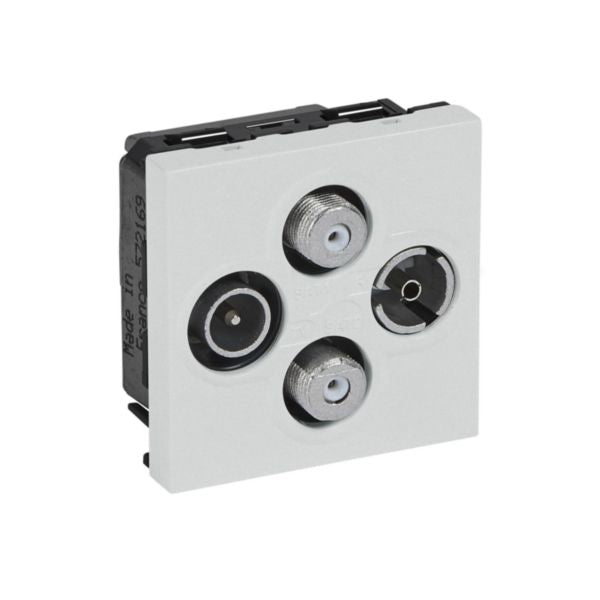

The Legrand Arteor TV socket is a professional-grade television outlet designed for modern home and building wiring systems. This shielded TV-R-SAT-SAT socket features dual satellite connections and is compatible with DVB-T, cable broadcast, and satellite installations. The socket delivers UHD TV quality performance and is LTE ready with 4G protection, ensuring optimal signal reception across all frequencies from 5 MHz to 2400 MHz. Built with a Class A shielded star socket design, this 2-module outlet provides superior signal integrity and minimal attenuation for premium television viewing experiences.
The Arteor TV socket incorporates advanced shielding technology that meets European directives EN 50083-4 and EN 50083-2, making it suitable for demanding professional installations. With low attenuation of just 1.5 dB at 860 MHz and 2 dB at 2150 MHz, this socket maintains signal quality across the entire frequency spectrum. The star cabling configuration allows for individual cable connections from the antenna, splitter, or multiswitch to each socket, enabling visual verification of connections and simplified troubleshooting. The soft aluminum finish provides a modern aesthetic while maintaining durability and professional appearance in any residential or commercial setting.
Features include four separate outlets accommodating TV, Radio, and dual satellite connections with the input configuration: In1 (TV-R-SAT1) and In2 (SAT2). The socket is compatible with the Arteor frame and plate system, allowing flexible installation options. With an IP20 protection rating and IK04 impact resistance, this socket is built to withstand typical indoor installation environments. The thermoplastic construction is halogen-free, meeting modern safety and environmental standards. Installation is straightforward in standard 27mm minimum depth flush-mounted boxes, making it ideal for both new construction and renovation projects.
Key Features
- Class A shielded star socket design with LTE ready 4G protection for superior signal integrity
- Dual satellite connections with TV-R-SAT-SAT configuration supporting DVB-T, cable broadcast, and satellite installations
- UHD TV quality compatible with frequency range 5-2400 MHz for comprehensive broadcast coverage
- Low attenuation performance with 1.5 dB at 860 MHz and 2 dB at 2150 MHz for optimal signal quality
- 2-module configuration with 4 separate outlets (In1: TV-R-SAT1, In2: SAT2) for flexible connectivity
- European standards compliant meeting EN 50083-4 and EN 50083-2 directives
- Star cabling topology enabling individual cable connections and visual connection verification
- Halogen-free thermoplastic construction with IP20 protection and IK04 impact resistance
- Soft aluminum finish providing modern aesthetic and professional appearance
- Compatible with Arteor frame and plate system for seamless integration
Technical Specifications
| Specification |
Value |
| Product Reference | 572692 |
| EAN Code | 3414971917507 |
| Brand | Legrand |
| Product Line | Arteor |
| Socket Type | TV/RD/SAT Multi-outlet |
| Configuration | TV-R-SAT-SAT Shielded with dual satellite |
| Number of Modules | 2 modules |
| Number of Outlets | 4 outlets total |
| Input Configuration | In1: TV-R-SAT1, In2: SAT2 |
| Mounting Method | Module frame system |
| Frequency Range TV | 5-68 MHz, 120-862 MHz |
| Frequency Range Radio | 87.5-108 MHz |
| Frequency Range SAT | 950-2400 MHz |
| Overall Frequency Coverage | 5-2400 MHz |
| TV Connector Type | Male connector 9.5 mm |
| Radio Connector Type | Female connector 9.5 mm |
| SAT Connector Type | F-type connector |
| Tap Loss at 860 MHz | 1.5 dB |
| Tap Loss at 2150 MHz | 2 dB |
| Shielding Class | Class A shielded |
| Recommended Coaxial Cable | 17 VATCA |
| Cabling Configuration | Star cabling (1 socket = 1 cable) |
| Standards Compliance | EN 50083-4, EN 50083-2 |
| LTE Ready | Yes - 4G Protected |
| UHD Compatible | Yes |
| Cable Modem Suitable | No |
| Remote Power Supply Suitable | Yes |
| Color | Soft Aluminum |
| Surface Protection | Lacquered |
| Surface Finishing | Matt |
| Material | Thermoplastic |
| Halogen Free | Yes |
| Antimicrobial Treatment | No |
| IP Rating | IP20 |
| Impact Strength (IK Rating) | IK04 |
| Device Width | 45 mm |
| Device Height | 45 mm |
| Device Depth | 40 mm |
| Minimum Installation Box Depth | 27 mm |
| Operating Temperature Range | 5-45 °C |
| Storage Temperature Range | -25-70 °C |
| Assembly Type | Basic element with central cover plate |
| Installation Type | Flush-mounted socket |
