Shop Legrand Arteor TV-SAT Shielded Socket 1 Module White | 572167 In Iraq Best Prices
Premium Class A shielded TV-SAT socket with UHD compatibility, LTE protection, and low 1.5dB attenuation for superior broadcast reception in residential and commercial installations.

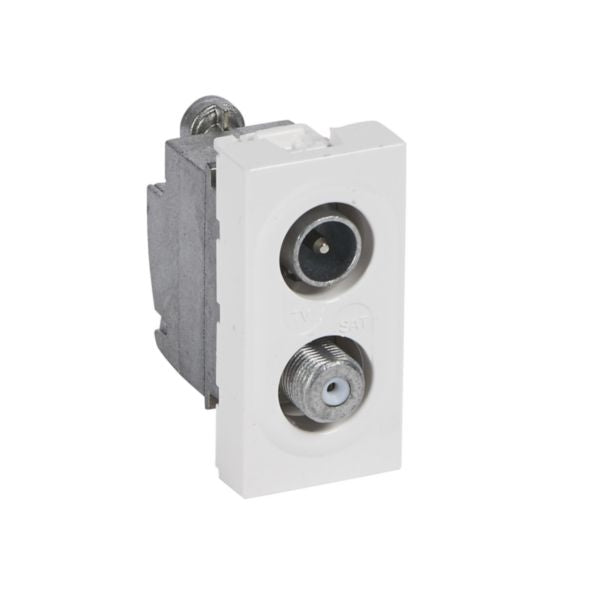

The Legrand Arteor TV-SAT shielded socket is a premium television outlet designed for modern home entertainment systems. This Class A shielded star socket provides exceptional signal quality for DVBT, Cablecast, and satellite installations with UHD TV compatibility. The socket features advanced LTE ready (4G protected) technology, ensuring reliable reception without interference from mobile networks. With a frequency range of 5-68/120-862 MHz for TV and 87.5-108 MHz for radio, combined with 950-2400 MHz for satellite, this outlet delivers comprehensive coverage for all broadcast types.
This single-module socket is engineered to meet strict European directives EN 50083-4 and EN 50083-2, guaranteeing superior performance and safety standards. The star cabling architecture requires one dedicated cable from the antenna, splitter, or multiswitch to each socket, eliminating signal degradation and cross-talk issues. The socket features low attenuation of just 1.5 dB at both 860 MHz and 2150 MHz, ensuring minimal signal loss across the frequency spectrum. Built with halogen-free thermoplastic material and rated for IP21 protection and IK04 impact resistance, this outlet is durable and environmentally conscious.
The Arteor TV-SAT socket comes with rocker plates and is supplied as a mechanism requiring support frames and plates for installation. Its compact dimensions (22.5mm width, 45mm height, 40mm depth) make it suitable for standard flush-mounted installation boxes with minimum 40mm depth. The white finish (RAL 9003) seamlessly integrates with modern interior design. Operating reliably between -5°C and 35°C, this socket is ideal for residential and commercial applications requiring professional-grade television signal distribution.
Key Features
- Class A shielded star socket design for interference-free signal reception
- UHD TV quality compatible with DVBT, Cablecast, and satellite installations
- LTE ready (4G protected) technology eliminates mobile network interference
- Low attenuation of 1.5 dB at 860 MHz and 2150 MHz for minimal signal loss
- Meets European directives EN 50083-4 and EN 50083-2 standards
- Halogen-free thermoplastic construction environmentally friendly and durable
- IP21 protection and IK04 impact resistance for reliable performance
- Star cabling architecture with visual connection check capability
- Compact single-module design with white glossy finish (RAL 9003)
- Suitable for remote power supply applications
Technical Specifications
| Specification |
Value |
| Product Reference | 572167 |
| EAN Code | 3414970940896 |
| Brand | Legrand |
| Product Line | Arteor |
| Socket Type | TV-SAT Shielded |
| Number of Modules | 1 |
| Number of Outlets | 2 |
| Frequency Range TV | 5-68/120-862 MHz |
| Frequency Range Radio | 87.5-108 MHz |
| Frequency Range Satellite | 950-2400 MHz |
| TV Connector Type | Male connector (Ø9.5 mm) |
| SAT Connector Type | F-type connector |
| Tap Loss at 860 MHz | 1.5 dB |
| Tap Loss at 2150 MHz | 1.5 dB |
| Shielding Class | Class A |
| LTE Protection | Yes - 4G Protected |
| UHD TV Compatible | Yes |
| Mounting Method | Module frame |
| Assembly Type | Basic element with central cover plate |
| Color | White |
| RAL Number | 9003 |
| Material | Thermoplastic |
| Halogen Free | Yes |
| Surface Finishing | Glossy |
| IP Rating | IP21 |
| IK Rating | IK04 |
| Width | 22.5 mm |
| Height | 45 mm |
| Depth | 40 mm |
| Minimum Installation Box Depth | 40 mm |
| Operating Temperature Range | -5°C to 35°C |
| Storage Temperature Range | -10°C to 70°C |
| European Standard Compliance | EN 50083-4 and EN 50083-2 |
| Cable Modem Compatible | No |
| Remote Power Supply Compatible | Yes |
| Recommended Coaxial Cable | 17 VATCA |
| Cabling Architecture | Star cabling (1 socket = 1 cable) |
| DAB+ Compatible | No |
| Antimicrobial Treatment | No |
