Premium Swiss-standard 2-module socket outlet featuring dual T13 10A 250V connectors with soft aluminum finish, halogen-free construction, and IP40 protection for residential and commercial use.

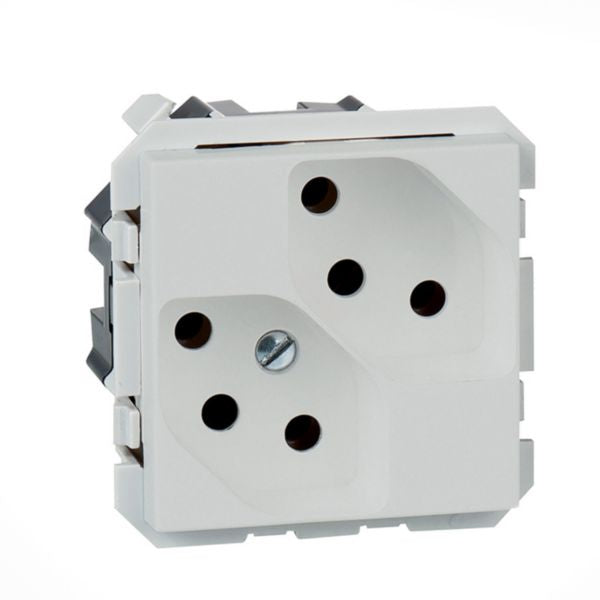

The Legrand Arteor Swiss Socket 2x T13 10A 250V 2P+E is a premium electrical outlet designed for residential and commercial applications. This 2-module socket outlet features Swiss-type T13 connectors with dual round protective contacts, offering reliable and safe power distribution. The soft aluminum finish provides a modern, elegant aesthetic while maintaining exceptional durability and functionality. Manufactured with high-quality thermoplastic materials, this socket outlet is halogen-free and complies with international safety standards, making it an ideal choice for environmentally conscious installations.
The socket features push-in clamp connection technology, allowing for quick and secure cable installation without requiring additional tools. With a nominal current rating of 10A and voltage of 250V, it supports both 50-60Hz frequencies, making it universally compatible. The device dimensions of 45mm x 45mm x 35.2mm ensure compact installation while maintaining accessibility. The socket incorporates loop-through functionality, enabling daisy-chain installation for flexible electrical configurations. Its IP40 degree of protection and IK04 impact strength rating ensure reliable performance in various indoor environments.
This Arteor socket outlet is specifically engineered for the Swiss market while maintaining international quality standards. The product includes a central cover plate and support frame integration, allowing for seamless integration into existing Arteor systems. Operating temperature range of -5°C to 50°C ensures consistent performance across seasonal variations. The halogen-free construction demonstrates Legrand's commitment to environmental sustainability and electrical safety. Perfect for modern homes, offices, and commercial spaces requiring Swiss-standard electrical outlets with premium design and reliability.
Key Features
- Swiss-type T13 socket outlets with 2 round protective contacts for enhanced safety
- 2-module design with soft aluminum finish for modern aesthetic appeal
- Push-in clamp connection technology for tool-free cable installation
- Halogen-free construction supporting environmental sustainability and safety standards
- Loop-through functionality enabling flexible daisy-chain installation configurations
- IP40 degree of protection and IK04 impact strength for reliable indoor performance
- Universal compatibility with 50-60Hz frequencies and 250V nominal voltage
- Compact dimensions 45x45x35.2mm for seamless integration into Arteor systems
Technical Specifications
| Specification |
Value |
| Product Type | Swiss Socket Outlet - 2 Modules |
| Socket Standard | Swiss Norm Type 13 (T13) |
| Protective Contacts | 2 Round Protective Contacts (2P+E) |
| Nominal Current | 10 Amperes (10A) |
| Nominal Voltage | 250 Volts (250V) |
| Frequency | 50-60 Hz |
| Number of Modules | 2 modules |
| Number of Socket Outlets | 1 socket outlet |
| Connection Type | Push-in Clamp |
| Cable Section | 2.5 mm² (fixed) |
| Color | Soft Aluminum |
| Material | Thermoplastic (Halogen-free) |
| Device Width | 45 mm |
| Device Height | 45 mm |
| Device Depth | 35.2 mm |
| Built-in Depth | 35.2 mm |
| IP Rating | IP40 |
| Impact Strength (IK) | IK04 |
| Operating Temperature | -5°C to +50°C |
| Storage Temperature | -10°C to +70°C |
| Voltage Type | AC (Alternating Current) |
| Mounting Method | Module Frame (Snap Mounting) |
| Assembly Arrangement | Basic Element with Central Cover Plate |
| Loop Through Function | Yes |
| Hinged Lid | No |
| Enhanced Contact Protection | No |
| USB Ports | None (0 USB-A, 0 USB-C) |
| Function Lighting | No |
| Overvoltage Protection | No |
| Fault Current Protection | No |
| Miniature Fuse | No |
| Smart Home Compatible | Not Compatible with Apple HomeKit, Amazon Alexa, or Google Assistant |
| Surface Finishing | Glossy |
| Antimicrobial Treatment | No |
| SKU/Reference | 570074 |
| EAN Code | 3414971851559 |
