Description

Shop Legrand Arteor Soft Alu Socket 2 RSA Outlets | 570090 In Iraq Best Prices

Premium South African RSA socket outlet assembly with 2 new and 1 switched outlet, Soft Aluminium finish, 16A/250V rated, with enhanced contact protection and antimicrobial treatment for residential and commercial applications.

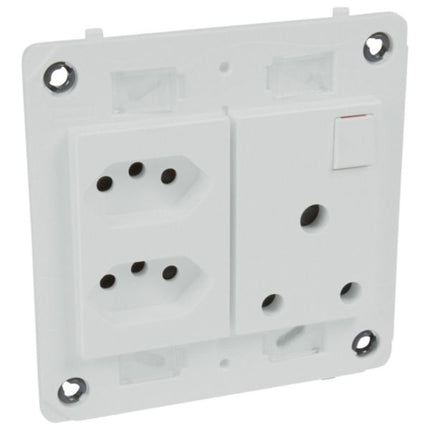

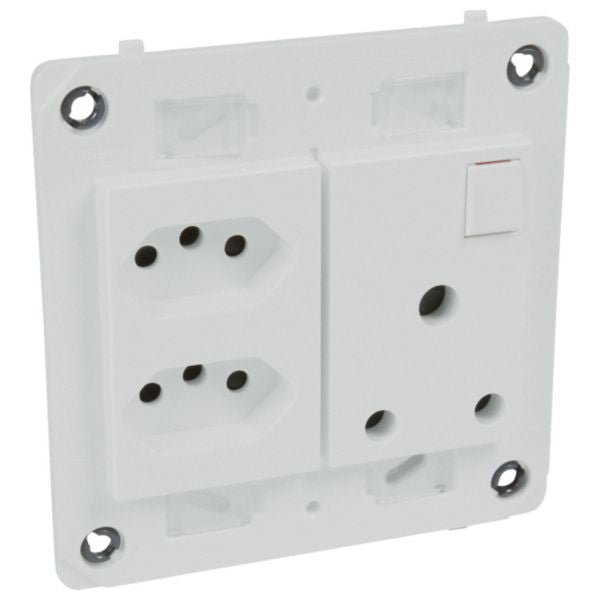

The Legrand Arteor Socket is a premium international wiring device featuring 2 new RSA socket outlets and 1 old RSA switched socket outlet in an elegant Soft Aluminium finish. This prewired monobloc assembly is specifically designed for South African electrical standards and comes complete with support frame and rocker plate. The device is constructed from high-quality thermoplastic material with halogen-free properties, ensuring safety and durability in residential and commercial installations. This socket outlet assembly features enhanced contact protection and is rated for 16A at 250V with 50-60Hz frequency compatibility. The unit measures 115mm x 115mm x 35mm and is designed for flush-mounted installation with a built-in depth of 30mm. The antimicrobial treatment on the surface provides additional protection, while the matt lacquered finish offers a sophisticated appearance suitable for modern interiors. The device includes an on/off switch with aluminium-colored switch operator for convenient control. The Arteor socket is engineered to meet IP20 protection rating and IK04 impact strength standards, making it suitable for typical indoor residential and light commercial applications. With loop-through function capability and flexible cable connection options supporting 2.5mm² conductors, this outlet assembly provides reliable power distribution and data connectivity solutions. The product comes with comprehensive documentation and technical support from Legrand, a trusted global leader in electrical and digital building infrastructure.

Key Features

2 new RSA socket outlets and 1 old RSA switched socket outlet configuration
Soft Aluminium finish with antimicrobial treatment for durability and hygiene
Enhanced contact protection with IP20 protection rating and IK04 impact strength
16A/250V rated with 50-60Hz frequency compatibility for global use
Prewired monobloc assembly with support frame and rocker plate included

Technical Specifications

Specification	Value
Product Model	Arteor International Socket Outlet Assembly
Socket Configuration	2 new RSA socket outlets (164-2) + 1 old RSA switched socket outlet (164-1)
Nominal Current Rating	16 A
Nominal Voltage	250 V AC
Frequency Range	50-60 Hz
Protective Contact Type	Round
Number of Active Contacts	2 round contacts
Device Dimensions	115mm (W) x 115mm (H) x 35mm (D)
Built-in Depth	30 mm
Minimum Installation Box Depth	40 mm
Connection Type	Screwed terminal
Cable Section	2.5 mm² (flexible or rigid)
Material	Halogen-free thermoplastic
Color Finish	Soft Aluminium (matt lacquered)
Protection Rating	IP20
Impact Strength Rating	IK04
Mounting Method	Flush-mounted
Fastening Type	Mounting with screw
Operating Temperature Range	-5°C to +50°C
Storage Temperature Range	-10°C to +70°C
Assembly Type	Prewired monobloc with support frame and rocker plate
Special Features	Enhanced contact protection, antimicrobial treatment, on/off switch, loop-through function
Halogen Free	Yes
With Enhanced Contact Protection	Yes
Reference Number	570090

Order Legrand Arteor Soft Alu Socket 2 RSA Outlets | 570090 at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
