Shop Legrand Arteor Single TV Star Socket Male 9.5mm Champagne | 570051 In Iraq Best Prices
Premium single TV star socket with 9.5mm male connector, UHD compatible, LTE ready with 4G protection, low 1dB attenuation, champagne finish, 1-module design suitable for modern installations.

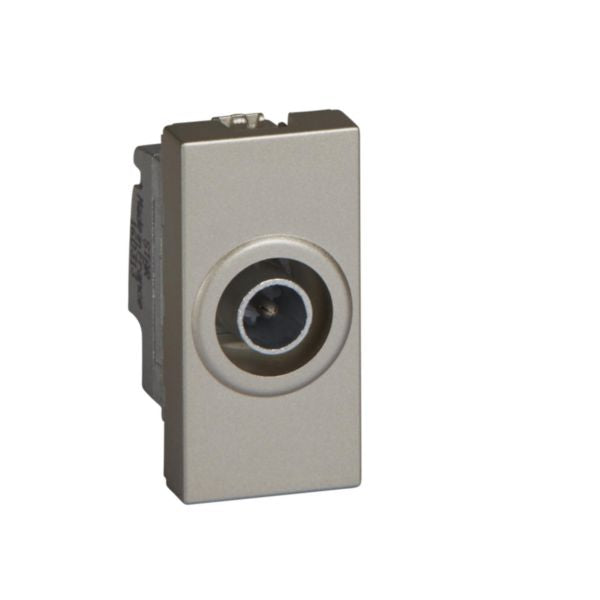

The Legrand Arteor Single TV Star Socket Male (Ø9.5 mm) is a premium television outlet designed for modern home and commercial installations. This 1-module socket features UHD TV quality compatibility and is LTE ready with 4G protection, ensuring optimal signal reception for digital television services. The socket utilizes a shielded star socket design with low attenuation of 1dB at TV frequencies, making it ideal for DVBT, Cablecast, and satellite installations. The champagne-colored finish complements contemporary interior designs while maintaining professional functionality.
This television socket is engineered to meet EN 50083-4 and EN 50083-2 European directives, guaranteeing compliance with international broadcasting standards. The male connector (9.5 mm) operates across TV frequencies of 5-68/120-862 MHz, with an additional R female connector (9.5 mm) for FM radio reception at 87.5-108 MHz, and an F-type connector for satellite reception at 950-2400 MHz. The recommended coaxial cable is 17 VATCA for optimal performance and signal integrity.
Features include visual check connection capability, low tap loss at critical frequencies (1.5 dB at 860 MHz and 2 dB at 2150 MHz), and remote power supply compatibility. The socket is housed in a compact 45mm x 45mm x 33mm module frame suitable for standard building installation boxes with minimum 40mm depth. Operating temperature range of 5-45°C ensures reliable performance in various climate conditions, while the halogen-free construction meets modern environmental and safety standards.
Key Features
- UHD TV quality compatible for superior digital television reception
- LTE ready with 4G protection for interference-free signal transmission
- Low attenuation design with 1dB loss at TV frequencies for optimal signal strength
- Compliant with EN 50083-4 and EN 50083-2 European broadcasting standards
- Shielded star socket design with visual connection verification capability
- Triple frequency support: TV (5-68/120-862 MHz), FM Radio (87.5-108 MHz), Satellite (950-2400 MHz)
- Halogen-free construction meeting modern environmental safety requirements
- Remote power supply compatible for flexible installation options
- Compact 1-module frame design (45mm x 45mm x 33mm) for standard installation boxes
- Champagne finish that complements contemporary interior design aesthetics
Technical Specifications
| Specification |
Value |
| Product Reference | REF. 570051 |
| EAN Code | 3414970924377 |
| Brand | Legrand |
| Product Line | Arteor |
| Socket Type | Single TV Star Socket Male Ø9.5 mm |
| Number of Modules | 1 module |
| Color Finish | Champagne |
| Mounting Method | Module frame |
| Number of Outlets | 3 |
| TV Frequency Range | 5-68/120-862 MHz |
| FM Radio Frequency Range | 87.5-108 MHz |
| Satellite Frequency Range | 950-2400 MHz |
| Tap Loss at 860 MHz | 1.5 dB |
| Tap Loss at 2150 MHz | 2 dB |
| Main Connector | Male connector 9.5 mm |
| Radio Connector | Female connector 9.5 mm |
| Satellite Connector | F-type connector |
| Recommended Coaxial Cable | 17 VATCA |
| Remote Power Supply Compatible | Yes |
| Degree of Protection | IP20 |
| Impact Strength Rating | IK04 |
| Device Width | 45 mm |
| Device Height | 45 mm |
| Device Depth | 33 mm |
| Minimum Installation Box Depth | 40 mm |
| Operating Temperature Range | 5-45 °C |
| Storage Temperature Range | -25-70 °C |
| Halogen Free | Yes |
| Antimicrobial Treatment | No |
| Compliance Standards | EN 50083-4, EN 50083-2 |
| Installation Type | DVBT, Cablecast, Satellite |
| Shielding Level | Classe A shielded, LTE ready, 4G protected |
