Shop Legrand Arteor Single Pole Socket BS 1363:2 13A Switched Neon Soft Alu | 572444 In Iraq Best Prices
Premium British Standard single pole socket outlet with 13A capacity, integrated on/off switch, neon indicator light, and child safety shutters. Finished in soft aluminium with full compliance to BS 1363:2 standards.

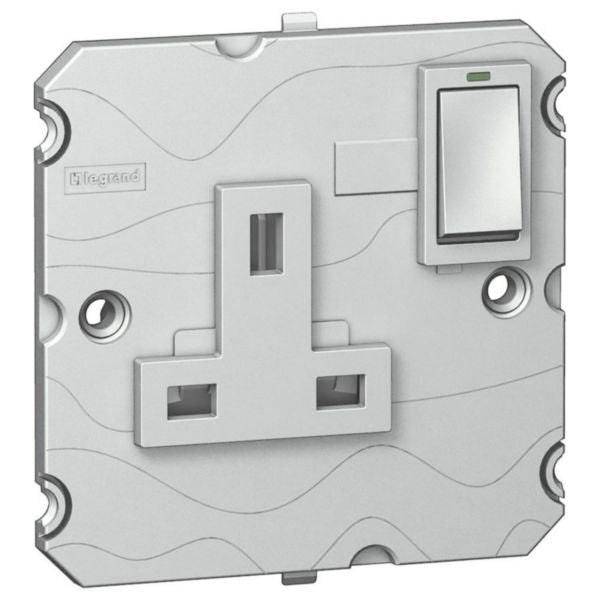

The Legrand Arteor Single Pole Socket is a premium British Standard socket outlet designed for modern residential and commercial applications. This 13A 250V~ socket features advanced safety mechanisms including shuttered design for child protection and ASTA certification. The socket is equipped with an on/off switch and neon indicator light, providing convenient control and visual confirmation of power status. Manufactured with high-quality thermoplastic material and finished in elegant soft aluminium, this socket combines aesthetic appeal with exceptional durability and reliability.
This socket outlet conforms to BS 1363 Part 2 standards and features flat protective contacts for enhanced safety. The unit is designed as a basic element with full cover plate, requiring special mounting plates for installation. With a nominal current rating of 13A and voltage of 250V, it is suitable for standard UK electrical installations. The socket includes loop-through functionality, allowing for convenient series connection of multiple outlets. The device dimensions of 83.55mm width by 78.5mm height ensure compatibility with standard UK electrical boxes.
The Arteor range represents Legrand's commitment to combining functionality, safety, and contemporary design. This particular model is halogen-free, making it environmentally responsible, and features an IP20 rating for indoor use with IK04 impact resistance. The screwed terminal connection type accommodates flexible or rigid cables with sections from 4-4mm², providing flexibility in installation. Operating temperature range of -5 to 50°C ensures reliable performance across varying environmental conditions.
Key Features
- Child safety shuttered design protecting against accidental contact
- Integrated on/off switch with neon indicator light for power status confirmation
- Full BS 1363 Part 2 compliance with ASTA certification
- Flat protective contacts for enhanced electrical safety
- Halogen-free thermoplastic construction for environmental responsibility
- Loop-through functionality for convenient series connection
- Soft aluminium elegant finish suitable for modern interiors
- IP20 rated for indoor use with IK04 impact resistance
- Screwed terminal connections accommodating 4-4mm² flexible or rigid cables
- Operating temperature range -5 to 50°C for reliable performance
Technical Specifications
| Specification |
Value |
| Product Model | Arteor Single Pole Socket BS 1363:2 |
| Nominal Current | 13 Amperes |
| Nominal Voltage | 250 V AC |
| Frequency Range | 50-60 Hz |
| Standard Compliance | BS 1363 Part 2, ASTA certified |
| Socket Type | Single pole, shuttered, flat contacts |
| Number of Socket Outlets | 1 |
| Switch Type | On/off switch with neon indicator |
| Connection Type | Screwed terminal |
| Cable Compatibility | Flexible or rigid, 4-4 mm² section |
| Material | Thermoplastic, halogen-free |
| Color Finish | Soft Aluminium |
| Device Width | 83.55 mm |
| Device Height | 78.5 mm |
| Device Depth | 19.9 mm |
| Built-in Depth | 30.95 mm |
| Protection Degree | IP20 |
| Impact Strength | IK04 |
| Operating Temperature | -5 to 50°C |
| Storage Temperature | -10 to 70°C |
| Mounting Method | Flush-mounted with screw fastening |
| Assembly Type | Basic element with full cover plate |
| Loop Through Function | Yes |
| Child Safety | Shuttered design |
| Reference Number | 572444 |
| EAN Code | 3414971846838 |
