Shop Legrand Arteor RJ45 Socket Category 6A UTP White | 572359 In Iraq Best Prices
Professional Category 6A UTP RJ45 socket with quick toolless connection, metal shielding, and green shutter. Supports high-speed Gigabit Ethernet with flexible installation options.

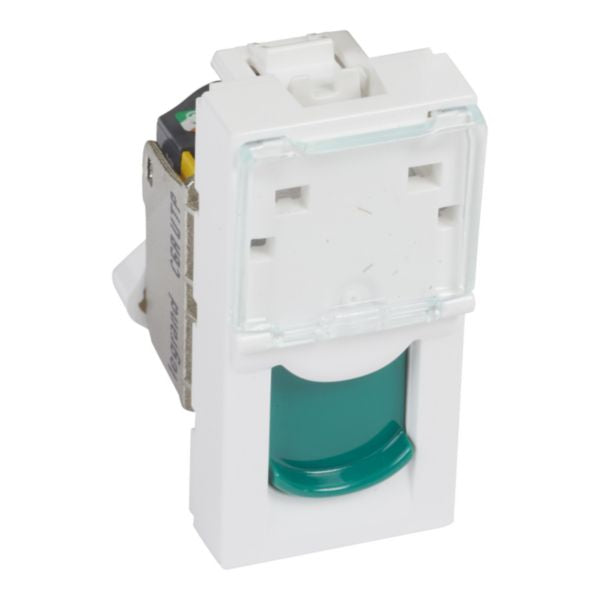

The Legrand Arteor RJ45 socket is a professional-grade network connectivity solution designed for high-speed data transmission in residential and commercial applications. This Category 6A UTP socket features a single module design with white color and green shutter, providing reliable Gigabit Ethernet connectivity. The socket is compliant with ISO/IEC 11801, EN 50173, and ANSI/TIA 568 standards, ensuring compatibility with global networking infrastructure.
This RJ45 socket is equipped with quick toolless connection technology, allowing for rapid and efficient installation without specialized tools. The insulation displacement connector (IDC) design accepts single-core cables from AWG 22 to AWG 26, as well as AWG 26 multicore cables. The socket features T568A and B marking with color codes for proper cable identification and installation. The metal shielding provides excellent electromagnetic interference (EMI) protection, making it ideal for environments with high electrical noise.
The Arteor socket is designed for versatile installation options including flush-mounted, duct, and floor box installations. It features a dust cover with green shutter for protection when not in use, and includes label space for cable identification. The device operates reliably across a wide temperature range of -40°C to 70°C, with an IP20 degree of protection and IK04 impact strength rating. Its halogen-free construction meets environmental compliance requirements, making it an eco-friendly choice for modern networking installations.
Key Features
- Category 6A UTP compliance with ISO/IEC 11801, EN 50173, and ANSI/TIA 568 standards
- Quick toolless insulation displacement connector (IDC) for rapid installation
- Metal shielding for excellent EMI protection and signal integrity
- T568A and B color code marking for proper cable identification
- Versatile installation options: flush-mounted, duct, and floor box compatible
- Dust cover with green shutter for protection and professional appearance
- Wide operating temperature range -40°C to 70°C for reliable performance
- Halogen-free construction meeting environmental compliance standards
- IP20 degree of protection and IK04 impact strength rating
- Compatible with single-core (AWG 22-26) and multicore (AWG 26) cables
Technical Specifications
| Specification |
Value |
| Product Type | RJ45 Network Socket |
| Category | Category 6A (IEC) |
| Color | White (RAL 9003) |
| Number of Modules | 1 module |
| Connector Type | RJ45 8(8) with insulation displacement connector (IDC) |
| Shielding | Metal shielding UTP (Unshielded Twisted Pair) |
| Connection Type | Insulation Displacement Connector (IDC) |
| Cable Compatibility | Single-core AWG 22-26, multicore AWG 26 |
| Color Coding | T568A and T568B marking with color codes |
| Installation Methods | Flush-mounted, duct installation, floor box/subfloor mounted |
| Fastening Type | Engage (snap) |
| Device Dimensions | Width: 22.5 mm, Height: 45 mm, Depth: 33.7 mm |
| Built-in Depth | 25.2 mm |
| Maximum Input Cable Diameter | 9 mm |
| Degree of Protection | IP20 |
| Impact Strength Rating | IK04 |
| Operating Temperature | -40°C to +70°C |
| Storage Temperature | -40°C to +70°C |
| Additional Features | Dust cover with green shutter, label space, halogen-free |
| Standards Compliance | ISO/IEC 11801, EN 50173, ANSI/TIA 568 |
| SKU | 572359 |
| EAN | 3245065723595 |
| Manufacturer | Legrand |
| Product Series | Arteor |
| Mounting Method | Flush-mounted |
Order Legrand Arteor RJ45 Socket Category 6A UTP White | 572359 at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
