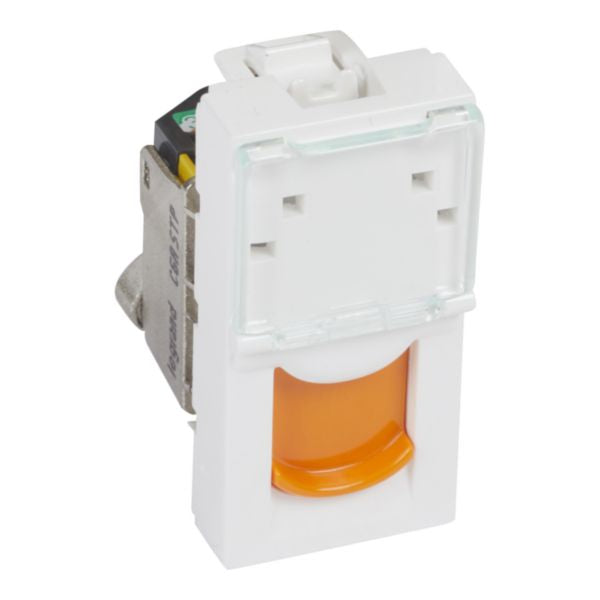

Shop Legrand Arteor RJ45 Socket Category 6A STP White Orange | 572351 In Iraq Best Prices
Professional Category 6A STP RJ45 socket with metal shielding, quick toolless connection, and compliance with international networking standards. Ideal for high-speed data transmission in flush-mounted, duct, and floor box installations.
The Legrand Arteor RJ45 Socket Category 6A STP is a professional-grade network connector designed for high-speed data transmission in residential and commercial applications. This 1-module flush-mounted socket features metal shielding (STP - Shielded Twisted Pair) technology that provides superior electromagnetic interference protection, ensuring reliable network connectivity. The socket is equipped with quick toolless connection capabilities, allowing for rapid and efficient installation without specialized equipment. It supports both single-core cables (AWG 22-26) and multicore cables (AWG 26), making it versatile for various installation scenarios.
This RJ45 socket is fully compliant with international standards including ISO/IEC 11801, EN 50173, and ANSI/TIA 568, guaranteeing compatibility with standard networking infrastructure. The white finish with orange shutter provides clear visual identification and protection against dust contamination when not in use. The socket features T568A and B marking with color codes for proper cable organization and identification. With its modular design, this component can be integrated into any support frame and plate system, offering flexibility for different installation configurations including flush-mounted, duct, and floor box installations.
The product is engineered to meet stringent quality standards with halogen-free materials and an impact strength rating of IK03. It operates reliably across a wide temperature range from -40°C to 70°C, making it suitable for diverse environmental conditions. The separate label space allows for custom identification and organization. With its robust construction and professional-grade specifications, this Arteor RJ45 socket is an ideal choice for modern networking infrastructure requiring high-speed data transmission and reliable connectivity.
Key Features
- Category 6A STP (Shielded Twisted Pair) for superior electromagnetic interference protection
- Quick toolless connection system for fast and efficient installation
- Compliant with ISO/IEC 11801, EN 50173, and ANSI/TIA 568 international standards
- Supports single-core cables AWG 22-26 and multicore cables AWG 26
- White finish with orange shutter for dust protection and visual identification
- T568A and B marking with color codes for proper cable organization
- Modular 1-module design compatible with any support frame and plate system
- Halogen-free materials for environmental safety
- Wide operating temperature range -40°C to 70°C
- IP20 degree of protection with IK03 impact strength rating
Technical Specifications
| Specification |
Value |
| Product Type | RJ45 Wall Socket - Category 6A |
| Shielding Type | STP (Shielded Twisted Pair) with metal shielding |
| Number of Modules | 1 module |
| Installation Type | Flush-mounted, duct, and floor box compatible |
| Connector Type | RJ45 8(8) insulation displacement connector |
| Cable Compatibility | Single-core AWG 22-26, Multicore AWG 26 |
| Color | White with orange shutter (RAL 9003) |
| Device Dimensions | Width: 22.5mm, Height: 45mm, Depth: 39.5mm |
| Built-in Depth | 31mm |
| Maximum Cable Diameter | 9mm |
| Degree of Protection | IP20 |
| Impact Strength Rating | IK03 |
| Operating Temperature | -40°C to +70°C |
| Storage Temperature | -40°C to +70°C |
| Material Composition | Halogen-free |
| Connection Method | Insulation displacement connector with quick toolless connection |
| Fastening Type | Engage (snap) mounting |
| Standards Compliance | ISO/IEC 11801, EN 50173, ANSI/TIA 568 |
| Reference Number | 572351 |
| EAN Code | 3245065723519 |
Order Legrand Arteor RJ45 Socket Category 6A STP White Orange | 572351 at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
