Shop Legrand Arteor RJ45 Socket Category 6A STP Champagne | 572861 In Iraq Best Prices
Professional RJ45 Category 6A STP socket with 10 GigaBit/s data rate, PoE support, and toolless installation for residential and commercial applications.

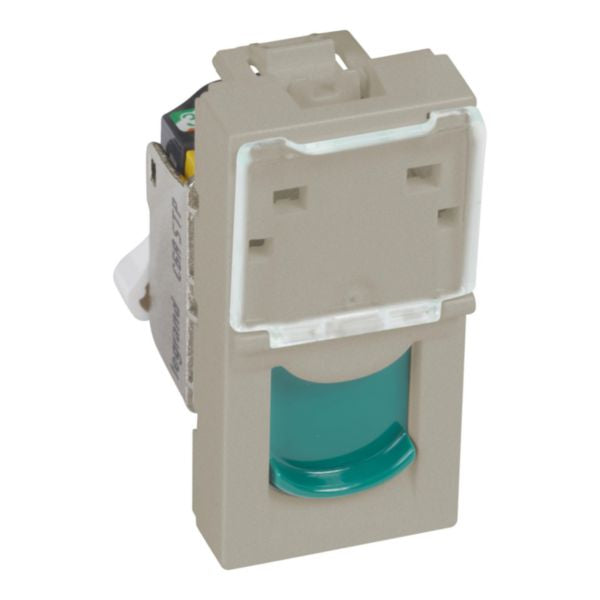

The Legrand Arteor RJ45 socket category 6A STP is a professional-grade networking component designed for high-speed data transmission in residential and commercial installations. This 1-module socket supports data rates up to 10 GigaBit/s, enabling rapid file transfers and seamless streaming capabilities. The champagne-colored finish with integrated green protective dust cover provides both aesthetic appeal and practical protection for the connector.
Equipped with advanced shielded twisted pair (STP) technology, this RJ45 socket conforms to international standards including ISO/IEC 11801 Ed. 3.0, EN 50173-1, and TIA/EIA 568 C specifications. The socket features toolless quick-connection technology with integrated crimping, making installation straightforward and efficient. It supports high-capacity Power over Ethernet (PoE) applications, allowing simultaneous transmission of electrical power and data across twisted pair cabling.
The product is specifically designed for flush-mounted installation in standard electrical boxes without requiring additional wall modifications. Its slot system enables perfect multigang configurations with easy alignment of support frames. Compatible with RJ11, RJ12, and RJ45 plugs, this versatile socket is ideal for IP and analog phones, downloads, streaming, and online gaming applications requiring low latency performance.
Key Features
- 10 GigaBit/s data transmission rate for ultra-fast downloads and streaming
- Shielded Twisted Pair (STP) technology for superior signal integrity
- High-capacity Power over Ethernet (PoE) support for simultaneous power and data
- Toolless quick-connection with integrated crimping for easy installation
- Integrated green protective dust cover for connector protection
- Flush-mounted installation compatible with standard electrical boxes
- Slot system for perfect multigang configurations without wall modifications
- Compliant with ISO/IEC 11801, EN 50173-1, and TIA/EIA 568 C standards
Technical Specifications
| Specification |
Value |
| Product Type | RJ45 Socket - Category 6A |
| Data Rate | Up to 10 GigaBit/s |
| Connector Type | RJ45 8(8) with Insulation Displacement Connector |
| Shielding | Shielded Twisted Pair (STP) |
| Number of Modules | 1 module |
| Color | Champagne with green protective dust cover |
| Installation Type | Flush-mounted |
| Device Width | 22.5 mm |
| Device Height | 45 mm |
| Device Depth | 39.5 mm |
| Built-in Depth | 31 mm |
| Maximum Input Cable Diameter | 9 mm |
| Operating Temperature Range | -40°C to +70°C |
| Storage Temperature Range | -40°C to +70°C |
| Degree of Impact Strength | IK03 |
| IP Rating | IP20 |
| Connection Method | Toolless with integrated crimping |
| Fastening Type | Engage (snap) |
| Halogen Free | Yes |
| Compliance Standards | ISO/IEC 11801 Ed. 3.0, EN 50173-1, TIA/EIA 568 C |
| Power over Ethernet (PoE) | High-capacity PoE support |
| Dust Cover | Yes - Green protective dust cover included |
| Label Space | Yes |
| Reference Number | 572861 |
| EAN Code | 3414971917835 |
Order Legrand Arteor RJ45 Socket Category 6A STP Champagne | 572861 at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
