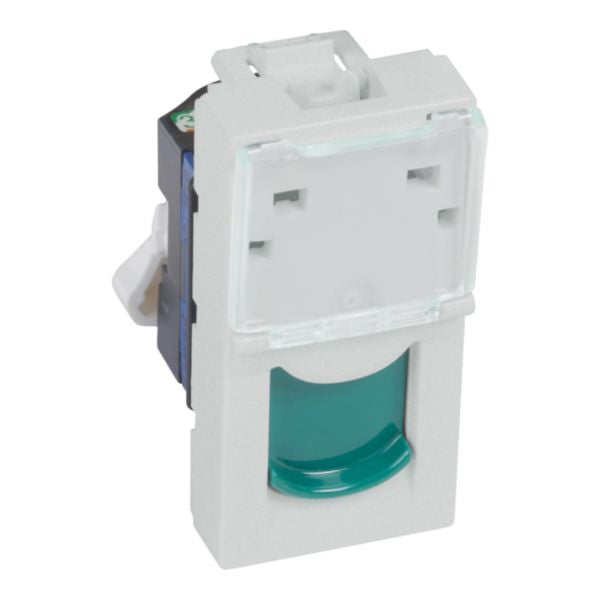

Shop Legrand Arteor RJ45 Socket Category 6 UTP 1 Module Soft Alu | 572879 In Iraq Best Prices
Professional Category 6 UTP RJ45 socket with 1 module, soft aluminum finish, green dust cover, and toolless installation. Supports 1 GigaBit/s data rates and PoE applications for residential and commercial use.
The Legrand Arteor RJ45 Socket Category 6 UTP is a professional-grade network connectivity solution designed for modern residential and commercial installations. This 1-module socket features a soft aluminum finish with an integrated green protective dust cover, ensuring reliable data transmission at speeds up to 1 GigaBit/s. The socket is equipped with toolless insulation displacement connectors that enable quick and efficient installation without requiring specialized tools, making it ideal for both new installations and retrofitting projects.
This Category 6 UTP socket supports high-capacity Power over Ethernet (PoE) applications, allowing simultaneous data transmission and electric power delivery through twisted pair Ethernet cabling. Fully compliant with ISO/IEC 11801 Ed. 3.0, EN 50173-1, and TIA/EIA 568 C standards, the socket delivers consistent performance for IP and analog phones, video streaming, online gaming, and other bandwidth-intensive applications. The innovative slot system enables perfect multigang configurations, allowing support frames to be seamlessly joined for simplified installation without requiring additional wall modifications or complex cabling work.
The socket features a degree of protection rating of IP20 and impact strength rating of IK04, ensuring durability in standard indoor environments. With dimensions of 22.5mm width, 45mm height, and 33.7mm depth, it fits standard flush-mounting boxes and offers compatibility with third-party covers. The device operates reliably across a temperature range of -40°C to 70°C and includes terminal marking indicators for easy identification. Its halogen-free construction meets environmental safety standards, making it an excellent choice for eco-conscious installations.
Key Features
- Category 6 UTP technology supporting data rates up to 1 GigaBit/s for fast downloads and streaming
- Integrated green protective dust cover protecting the connector from contamination and damage
- Toolless insulation displacement connectors enabling quick and efficient installation without specialized equipment
- High-capacity Power over Ethernet (PoE) support for simultaneous data and power transmission
- Soft aluminum finish with professional appearance suitable for residential and commercial installations
- Slot system enabling perfect multigang configurations without additional wall modifications
- Compatible with RJ11, RJ12, and RJ45 plugs for flexible connectivity options
- IP20 degree of protection and IK04 impact strength rating for durability
- Halogen-free construction meeting environmental safety standards
- Terminal marking indicators for easy identification and installation
Technical Specifications
| Specification |
Value |
| Product Type | RJ45 Wall Socket |
| Category | Category 6 UTP |
| Number of Modules | 1 module |
| Connector Type | RJ45 8(8) with Insulation Displacement Connector |
| Data Rate | Up to 1 GigaBit/s |
| Color | Soft Aluminum |
| Dust Cover | Yes - Green protective dust cover |
| Installation Type | Flush-mounted, Duct installation, Floor box/subfloor mounted |
| Connection Type | Toolless - Quick crimping connector |
| Fastening Type | Engage (snap) |
| Device Width | 22.5 mm |
| Device Height | 45 mm |
| Device Depth | 33.7 mm |
| Built-in Depth | 25.2 mm |
| Maximum Input Cable Diameter | 9 mm |
| Degree of Protection | IP20 |
| Impact Strength Rating | IK04 |
| Operating Temperature Range | -40°C to +70°C |
| Storage Temperature Range | -40°C to +70°C |
| Shielding | Unshielded buses |
| PoE Support | Yes - High capacity Power over Ethernet |
| Label Space | Yes |
| Terminal Marking | Yes |
| Halogen Free | Yes |
| Compatible with Third-Party Covers | Yes |
| Mounting Method | Flush-mounted |
| Reference Number | 572879 |
| EAN Code | 3414971918160 |
| Standards Compliance | ISO/IEC 11801 Ed. 3.0, EN 50173-1, TIA/EIA 568 C |
| Suitable Applications | IP phones, Analog phones, Video streaming, Online gaming, Data transmission |
Order Legrand Arteor RJ45 Socket Category 6 UTP 1 Module Soft Alu | 572879 at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
