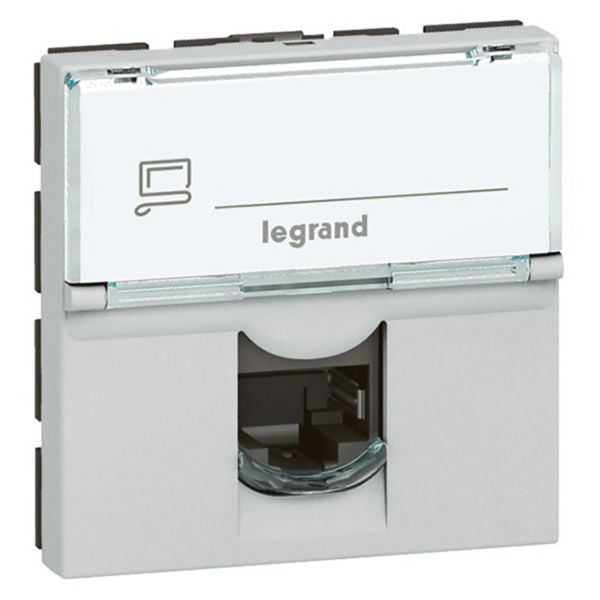

Shop Legrand Arteor RJ45 Socket Category 6 FTP 2 Modules | 572892 In Iraq Best Prices
Professional Category 6 FTP RJ45 socket with 2 modules, toolless connection, PoE support, and soft aluminum finish. Ideal for high-speed network installations up to 1 GigaBit/s.
The Legrand Arteor RJ45 Socket Category 6 FTP 2 Modules LCS Square Soft Alu (Reference 572892) is a professional-grade network connectivity solution designed for modern commercial and residential installations. This socket features Category 6 FTP (Foiled Twisted Pair) technology, enabling data transmission rates up to 1 GigaBit/s, making it ideal for high-bandwidth applications including streaming, online gaming, and professional networking. The socket is equipped with a transparent protective dust cover to safeguard the connector from environmental contamination and physical damage.
This 2-module RJ45 socket is engineered with toolless quick-connection technology featuring integrated crimping capabilities, significantly reducing installation time and labor costs. The socket is compatible with standard RJ11, RJ12, and RJ45 plugs, providing versatile connectivity options for various applications. With its soft aluminum finish and sleek design, it seamlessly integrates into the Arteor range of wiring devices, maintaining aesthetic consistency throughout your installation.
The product supports high-capacity Power over Ethernet (PoE) applications, allowing electrical power transmission alongside data signals through twisted pair Ethernet cabling. It is fully compliant with international standards including ISO/IEC 11801 Ed. 3.0, EN 50173-1, and TIA/EIA 568 C. The socket features an IP20 protection rating and IK03 impact resistance, suitable for flush-mounted, duct, and floor box installations. Built-in label space allows for easy identification and organization of network connections.
Key Features
- Category 6 FTP technology supporting data rates up to 1 GigaBit/s for fast downloads and streaming
- Toolless quick-connection with integrated crimping for fast and easy installation
- High-capacity Power over Ethernet (PoE) support for simultaneous data and power transmission
- Transparent protective dust cover protecting the connector from contamination
- Compatible with RJ11, RJ12, and RJ45 plugs for versatile connectivity options
- Soft aluminum finish with sleek design for aesthetic integration into Arteor range
- Compliant with ISO/IEC 11801, EN 50173-1, and TIA/EIA 568 C standards
- IP20 protection rating and IK03 impact resistance for durability
- Built-in label space for easy network connection identification
- Suitable for flush-mounted, duct, and floor box installations
Technical Specifications
| Specification |
Value |
| Product Reference | 572892 |
| EAN Code | 3414971848375 |
| Category | 6 FTP (Foiled Twisted Pair) |
| Number of Modules | 2 |
| Connector Type | RJ45 8(8) |
| Data Rate | Up to 1 GigaBit/s |
| Connection Type | Insulation Displacement Connector (IDC) |
| Colour | Soft Aluminium |
| Device Dimensions (W x H x D) | 45 mm x 45 mm x 33.7 mm |
| Built-in Depth | 25.2 mm |
| Installation Type | Flush-mounted, Duct, Floor box |
| Fastening Method | Engage (Snap) |
| Protection Rating | IP20 |
| Impact Strength | IK03 |
| Operating Temperature Range | -40°C to +70°C |
| Storage Temperature Range | -40°C to +70°C |
| Maximum Input Cable Diameter | 9 mm |
| Dust Cover | Yes - Transparent protective dust cover |
| Label Space | Yes - Terminal marking indication |
| Halogen Free | Yes |
| Standards Compliance | ISO/IEC 11801 Ed. 3.0, EN 50173-1, TIA/EIA 568 C |
| Power over Ethernet Support | Yes - High-capacity PoE applications |
| Compatible Plugs | RJ11, RJ12, RJ45 |
| Shielded Buses | No |
| Separate Earthing Connection | No |
Order Legrand Arteor RJ45 Socket Category 6 FTP 2 Modules | 572892 at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
