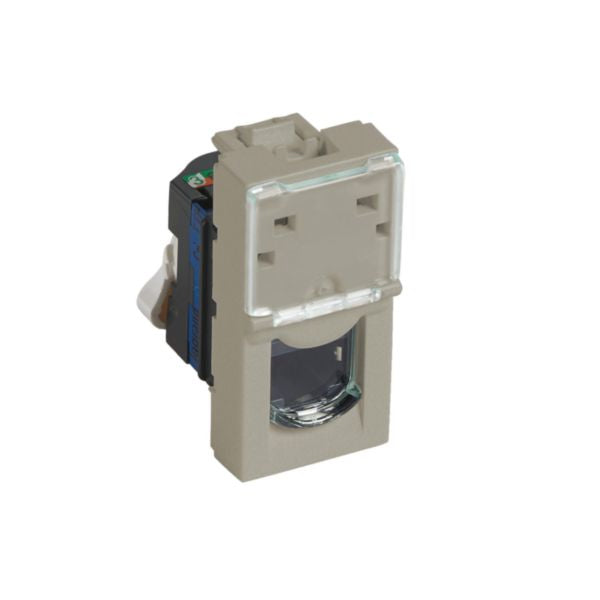

Shop Legrand Arteor RJ45 Socket Category 6 FTP 1 Module LCS Champagne | 572891 In Iraq Best Prices
Professional RJ45 Category 6 FTP socket with 1 GigaBit/s data transmission, toolless installation, PoE support, and champagne finish. Compliant with ISO/IEC 11801 standards.
The Legrand Arteor RJ45 Socket Category 6 FTP is a professional-grade networking solution designed for both commercial and residential installations. This 1-module socket delivers data transmission speeds up to 1 GigaBit/s, enabling rapid file downloads and seamless streaming experiences. The Category 6 FTP (Foiled Twisted Pair) shielding ensures superior protection against electromagnetic interference while supporting high-capacity Power over Ethernet (PoE) applications for integrated power and data transmission.
This socket features a transparent protective dust cover that safeguards the connector from contamination and damage. The champagne-colored finish complements modern interior designs while maintaining professional aesthetics. Equipped with toolless quick-connection technology and integrated crimping, installation is simplified for both experienced technicians and DIY enthusiasts. The socket is fully compliant with international standards including ISO/IEC 11801 Ed. 3.0, EN 50173-1, and TIA/EIA 568 C specifications.
The Arteor socket offers exceptional versatility with compatibility for RJ11, RJ12, and RJ45 plugs. Its slot system enables perfect multigang configurations, allowing multiple sockets to be seamlessly joined without requiring additional wall modifications or cable routing. The device operates reliably across a wide temperature range from -40°C to 70°C, making it suitable for diverse environmental conditions. With an IP20 protection rating and IK04 impact strength rating, this socket delivers durability and reliability for demanding applications.
Key Features
- Data transmission up to 1 GigaBit/s for high-speed networking
- Category 6 FTP shielding with superior electromagnetic interference protection
- Supports Power over Ethernet (PoE) applications for integrated power and data
- Toolless quick-connection with integrated crimping for fast installation
- Transparent protective dust cover to prevent connector contamination
- Compatible with RJ11, RJ12, and RJ45 plugs
- Slot system for perfect multigang configurations
- Champagne color finish for modern aesthetic appeal
- Wide operating temperature range from -40°C to 70°C
- IP20 protection rating with IK04 impact strength
Technical Specifications
| Specification |
Value |
| Product Type | RJ45 Socket Category 6 FTP |
| Reference Number | 572891 |
| EAN Code | 3414971848344 |
| Data Rate | Up to 1 GigaBit/s |
| Category | Category 6 (Cat 6) |
| Connector Type | RJ45 8(8) |
| Connection Type | Insulation Displacement Connector (IDC) |
| Number of Modules | 1 module |
| Color | Champagne |
| Device Width | 22.5 mm |
| Device Height | 45 mm |
| Device Depth | 33.7 mm |
| Built-in Depth | 25.2 mm |
| Maximum Input Cable Diameter | 9 mm |
| Operating Temperature Range | -40°C to 70°C |
| Storage Temperature Range | -40°C to 70°C |
| IP Protection Rating | IP20 |
| Impact Strength Rating | IK04 |
| Mounting Method | Flush-mounted |
| Type of Fastening | Engage (snap) |
| Installation Type | Flush-mounted, Duct, Floor box/subfloor mounted |
| Shielded Buses | No |
| Separate Earthing Connection | No |
| Label Space | Yes |
| Dust Cover | Yes - Transparent protective dust cover |
| Terminal Resistor | No |
| Halogen Free | Yes |
| Mechanical Coding | No |
| Colour Coding | Yes |
| Compatible with Third-party Covers | Yes |
| PoE Support | Yes - High capacity Power over Ethernet applications |
| Connection Technology | Toolless quick connection with integrated crimping |
| Standards Compliance | ISO/IEC 11801 Ed. 3.0, EN 50173-1, TIA/EIA 568 C |
| Application | Commercial and residential installations |
Order Legrand Arteor RJ45 Socket Category 6 FTP 1 Module LCS Champagne | 572891 at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
