Shop Legrand Arteor RJ45 Category 5e FTP Socket White | 572304 In Iraq Best Prices
Professional Legrand Arteor RJ45 Category 5e FTP socket with toolless connection, 1 Gigabit per second data rate, PoE support, and protective dust cover for reliable network installations.

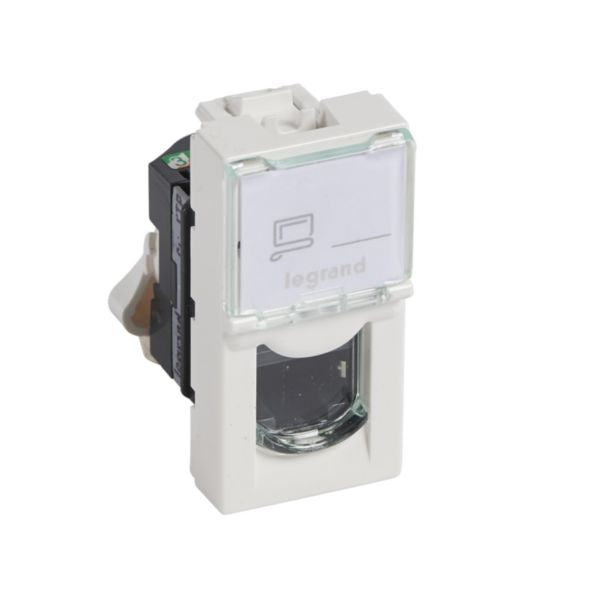

The Legrand Arteor RJ45 Category 5e FTP Socket is a professional-grade networking component designed for modern residential and commercial installations. This single-module square white socket delivers high-speed data transmission with support for up to 1 Gigabit per second, making it ideal for bandwidth-intensive applications such as video streaming, online gaming, and large file downloads. The socket features advanced shielding technology (FTP - Foiled Twisted Pair) that provides superior protection against electromagnetic interference, ensuring reliable and stable network performance in demanding environments.
Equipped with innovative toolless connector technology, this RJ45 socket eliminates the need for specialized crimping tools, significantly reducing installation time and labor costs. The integrated quick connection system allows for secure cable termination without sacrificing connection quality. The socket includes a transparent protective dust cover that safeguards the connector from dust and debris when not in use, maintaining long-term reliability. Its compatibility with standard RJ11, RJ12, and RJ45 plugs makes it versatile for various networking applications.
The Arteor socket supports Power over Ethernet (PoE) applications, enabling the transmission of electrical power alongside data signals through the same twisted pair cabling. This capability is essential for modern smart building solutions, IP phones, surveillance systems, and wireless access points. The product conforms to international standards ISO/IEC 11801 Ed. 3.0, EN 50173-1, and TIA/EIA 568 C, ensuring compatibility with global networking infrastructure. Its halogen-free construction and antimicrobial treatment options demonstrate commitment to safety and sustainability.
Key Features
- High-speed data transmission up to 1 Gigabit per second for seamless streaming and downloads
- Toolless connector with integrated quick connection for fast and easy installation without specialized equipment
- Transparent protective dust cover to safeguard connector from dust and debris
- Power over Ethernet (PoE) support for simultaneous power and data transmission
- Shielded FTP technology providing superior electromagnetic interference protection
- Compatible with RJ11, RJ12, and RJ45 plugs for versatile networking applications
- Conforms to international standards ISO/IEC 11801, EN 50173-1, and TIA/EIA 568 C
- Halogen-free construction for safety and environmental sustainability
- Square white design fits seamlessly with Arteor range aesthetic
- Single module configuration with support frame compatibility for easy multigang installation
Technical Specifications
| Specification |
Value |
| Product Reference | 572304 |
| EAN Code | 3245065723045 |
| Connector Type | RJ45 8(8) - Category 5e FTP |
| Data Rate | Up to 1 Gigabit per second |
| Connection Method | Insulation displacement connector with toolless quick connection |
| Number of Modules | 1 module |
| Color | White (RAL 9003) |
| Installation Type | Flush-mounted, duct installation, floor box/subfloor mounted |
| Device Dimensions | Width: 22.5 mm, Height: 45 mm, Depth: 33.7 mm |
| Built-in Depth | 25.2 mm |
| Degree of Protection | IP20 |
| Impact Strength Rating | IK03 |
| Operating Temperature Range | -40°C to +70°C |
| Storage Temperature Range | -40°C to +70°C |
| Maximum Input Cable Diameter | 9 mm |
| Fastening Type | Engage (snap) |
| Shielding | FTP (Foiled Twisted Pair) - No separate earthing connection |
| Dust Cover | Yes - Transparent protective cover included |
| Label Space | Yes |
| Colour Coding | Yes |
| Terminal Marking | Yes |
| Halogen Free | Yes |
| Antimicrobial Treatment | No |
| Compliance Standards | ISO/IEC 11801 Ed. 3.0, EN 50173-1, TIA/EIA 568 C |
| Recommended Use | Commercial and residential installations, IP phones, streaming, online gaming, PoE applications |
| Surface Mounting | No |
| Mounting Method | Flush-mounted with support frames |
| Outlet Direction | Straight |
