Shop Legrand Arteor RJ45 Socket Category 6A STP White | 572306 In Iraq Best Prices
Professional Category 6A STP RJ45 socket with metal shielding, quick toolless connection, and full compliance with international networking standards for reliable high-speed data transmission.

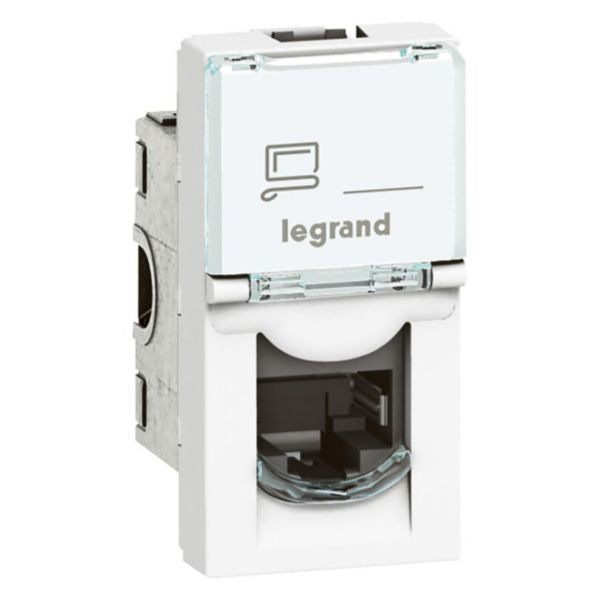

The Legrand Arteor RJ45 socket (Reference 572306) is a professional-grade network connectivity solution designed for high-speed data transmission. This Category 6A STP (Shielded Twisted Pair) socket features advanced metal shielding technology that provides superior electromagnetic interference protection, making it ideal for demanding commercial and residential installations. The socket is equipped with quick toolless connection technology, allowing for fast and efficient installation without requiring specialized tools. It supports both single-core cables (AWG 22-26) and multicore cables (AWG 26), offering flexible cabling options for various installation scenarios.
This 1-module white socket is fully compliant with international standards including ISO/IEC 11801, EN 50173, and ANSI/TIA 568, ensuring reliable performance and future-proof compatibility. The Arteor system integrates seamlessly into any support structure and can be installed via flush-mounted, duct, or floor box mounting methods. The socket features T568A and B marking with clear color codes for proper cable identification and connection. Its robust construction includes a dust cover, terminal marking indication, and separate strain relief mechanisms for optimal cable protection and longevity.
Designed as part of the LCS³ cabling system, this RJ45 socket delivers enterprise-grade performance with an operating temperature range of -40°C to 70°C. The halogen-free construction ensures environmental compliance and safety. With its IK03 degree of impact strength and IP20 protection rating, this socket is built to withstand typical installation environments while maintaining consistent performance. The 9-contact configuration and straight outlet direction provide reliable connectivity for Gigabit Ethernet and higher-speed networking applications.
Key Features
- Category 6A STP (Shielded Twisted Pair) with advanced metal shielding for superior electromagnetic interference protection
- Quick toolless connection technology for fast and efficient installation without specialized equipment
- Compliant with ISO/IEC 11801, EN 50173, and ANSI/TIA 568 international standards
- Supports single-core (AWG 22-26) and multicore (AWG 26) cable connections with flexible installation options
- T568A and B marking with color codes for proper cable identification and reliable connectivity
- Multiple mounting options including flush-mounted, duct, and floor box installations
- Halogen-free construction for environmental compliance and enhanced safety
- Dust cover protection and terminal marking indication for optimal cable management
- Operating temperature range -40°C to 70°C for reliable performance in diverse environments
- IK03 impact strength rating with IP20 protection for durability in typical installation settings
Technical Specifications
| Specification |
Value |
| Product Reference | 572306 |
| EAN Code | 3245065723069 |
| Manufacturer | Legrand |
| Product Type | RJ45 Socket |
| Category | 6A (IEC) |
| Shielding Type | STP (Shielded Twisted Pair) with Metal Shielding |
| Number of Contacts | 9 contacts |
| Connector Type | RJ45 8(8) |
| Number of Modules | 1 module |
| Color | White |
| RAL Number | 9003 |
| Connection Type | Insulation Displacement Connector (IDC) |
| Cable Support | Single-core AWG 22-26, Multicore AWG 26 |
| Maximum Input Cable Diameter | 9 mm |
| Device Width | 22.5 mm |
| Device Height | 45 mm |
| Device Depth | 39.5 mm |
| Built-in Depth | 31 mm |
| Mounting Method | Flush-mounted, Duct, Floor box |
| Type of Fastening | Engage (Snap) |
| Degree of Protection | IP20 |
| Impact Strength Rating | IK03 |
| Operating Temperature Range | -40°C to +70°C |
| Storage Temperature Range | -40°C to +70°C |
| Outlet Direction | Straight |
| Color Coding | Yes - T568A and B marking |
| With Dust Cover | Yes |
| Terminal Marking Indication | Yes |
| Halogen Free | Yes |
| Antimicrobial Treatment | No |
| Compliance Standards | ISO/IEC 11801, EN 50173, ANSI/TIA 568 |
| System | LCS³ Cabling System |
| Installation Type | Flush-mounted, Duct installation, Floor box/subfloor mounted |
Order Legrand Arteor RJ45 Socket Category 6A STP White | 572306 at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
