Shop Legrand Arteor RJ45 Category 6 UTP Socket 1 Module Aluminium | 571057 In Iraq Best Prices
Professional Category 6 UTP RJ45 socket with LCS² fast connection system, dual colour-coded contacts, and compliance with ISO/IEC 11801 and TIA/EIA 568C standards for reliable network connectivity.

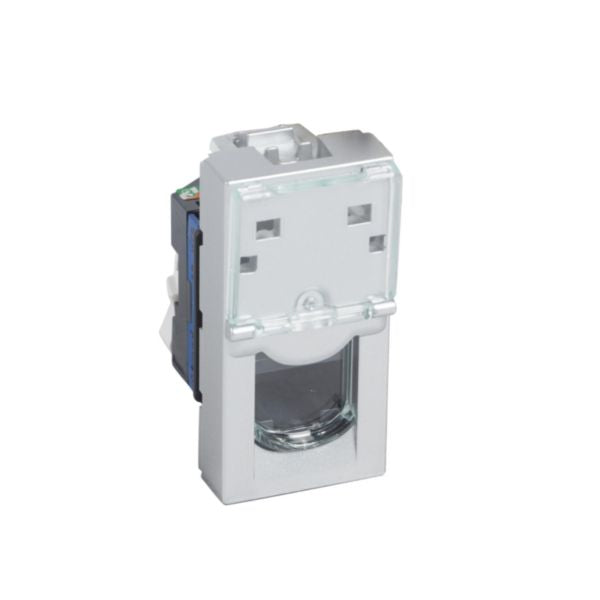

The Legrand Arteor RJ45 Category 6 UTP Socket is a professional-grade networking solution designed for modern connectivity requirements. This single-module socket features the innovative LCS² connector system with integrated fast connection capability, enabling efficient cable termination without additional tools. The socket accommodates both AWG 22 single-core cables and AWG 26 multicore cables, providing versatile installation flexibility for various network infrastructure applications.
This Category 6 UTP socket is fully compliant with international standards including ISO/IEC 11801 Ed. 2.0 amendment 2, EN 50173-1, and TIA/EIA 568C specifications, ensuring reliable performance in professional networking environments. The socket features dual colour-coded contacts with clearly marked wiring schemes for both T568A and T568B configurations, eliminating installation errors and ensuring proper network connectivity. The aluminium finish provides a modern aesthetic suitable for contemporary building designs.
The socket is equipped with integrated dust cover protection and includes label space for network identification. It supports flush-mounted, duct, and floor box installations, offering installation flexibility across different building configurations. The device features IK04 impact strength rating and operates reliably across -40°C to 70°C temperature range, ensuring durability in diverse environmental conditions. Compatible with third-party covers and featuring a 22.5mm width with 1-module design, this socket represents a premium choice for professional network infrastructure installations.
Key Features
- LCS² connector with integrated fast connection and crimping capability for efficient cable termination
- Supports AWG 22 single-core and AWG 26 multicore cables for flexible installation options
- Dual colour-coded contacts with T568A and T568B wiring scheme markings for error-free installation
- Compliant with ISO/IEC 11801 Ed. 2.0 amendment 2, EN 50173-1, and TIA/EIA 568C standards
- IK04 impact strength rating with -40°C to 70°C operating temperature range for durability
- Integrated dust cover protection and label space for network identification
- Compatible with flush-mounted, duct, and floor box installations
- Aluminium finish with modern aesthetic design suitable for contemporary buildings
- Compatible with third-party covers and support frames
- Single module 22.5mm width design for compact installation
Technical Specifications
| Specification |
Value |
| Product Type | RJ45 Category 6 UTP Socket |
| Reference Number | 571057 |
| EAN Code | 3414970925848 |
| Brand | Legrand |
| Category | Category 6 (Cat. 6) |
| Socket Type | RJ45 8(8) UTP |
| Number of Modules | 1 Module |
| Colour | Aluminium |
| Connection Type | Insulation Displacement Connector (IDC) |
| Cable Support | AWG 22 single-core and AWG 26 multicore cables |
| Maximum Input Cable Diameter | 9 mm |
| Connector System | LCS² with fast connection and integrated crimping |
| Wiring Standards | T568A and T568B configurations |
| Installation Types | Flush-mounted, duct, floor box installation |
| Fastening Type | Engage (snap) |
| Device Width | 22.5 mm |
| Device Height | 45 mm |
| Device Depth | 33.7 mm |
| Built-in Depth | 25.2 mm |
| Degree of Protection | IP20 |
| Impact Strength Rating | IK04 |
| Operating Temperature | -40°C to +70°C |
| Storage Temperature | -40°C to +70°C |
| Colour Coding | Yes, dual colour-coded contacts |
| Label Space | Yes |
| Dust Cover | Yes, included |
| Shielded Buses | No |
| Separate Earthing Connection | No |
| Terminal Resistor | No |
| Terminal Marking | Yes |
| Halogen Free | Yes |
| Antimicrobial Treatment | No |
| Compatible with Third-party Covers | Yes |
| Separate Strain Relief | No |
| Outlet Direction | Straight |
| Compliance Standards | ISO/IEC 11801 Ed. 2.0 amendment 2, EN 50173-1, TIA/EIA 568C |
Order Legrand Arteor RJ45 Category 6 UTP Socket 1 Module Aluminium | 571057 at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
