Shop Legrand Arteor RJ45 Category 5e UTP Socket 1 Module White | 572303 In Iraq Best Prices
Professional Legrand Arteor RJ45 Category 5e UTP socket delivering 1 GigaBit/s data transmission with toolless installation, PoE support, and international standards compliance for residential and commercial use.

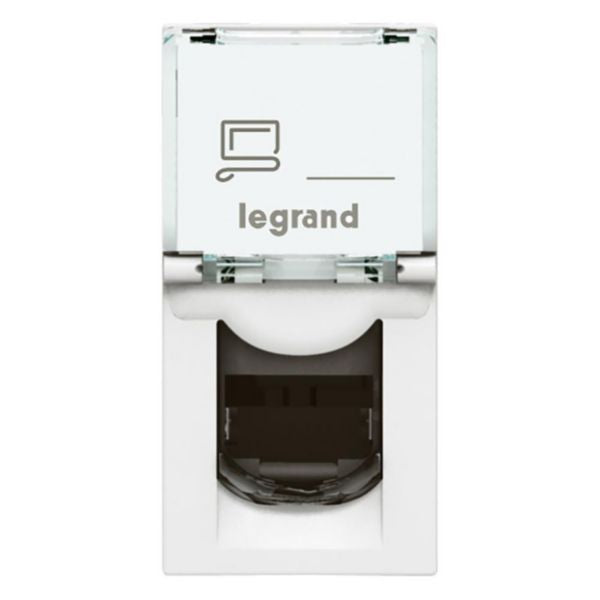

The Legrand Arteor RJ45 Category 5e UTP socket is a professional-grade networking outlet designed for high-speed data transmission up to 1 GigaBit/s, making it ideal for downloading large files, streaming content, and online gaming with minimal latency. This single-module white socket features a transparent protective dust cover that safeguards the connector from environmental contaminants and damage during installation and daily use. The connector is equipped with toolless insulation displacement technology, allowing for quick and secure connections without specialized crimping tools.
This RJ45 socket is fully compliant with international standards including ISO/IEC 11801 Ed. 3.0, EN 50173-1, and TIA/EIA 568 C, ensuring reliable performance in both commercial and residential installations. The socket supports high-capacity Power over Ethernet (PoE) applications, enabling the simultaneous transmission of electrical power and data over twisted pair Ethernet cabling. With a compact design measuring 22.5mm in width and 45mm in height, it integrates seamlessly into standard flush-mounted boxes without requiring additional wall modifications or cable rerouting.
The Arteor socket features a slot system that enables perfect and easy multigang configuration, allowing support frames to be perfectly joined for simplified installation. Compatible with cords equipped with RJ11, RJ12, or RJ45 plugs, this versatile outlet provides a future-proof networking solution. The device includes color coding for terminal marking, a label space for organization, and maintains halogen-free construction for environmental safety. Operating temperatures range from -10°C to 60°C, with storage capability up to 70°C, ensuring reliable performance across diverse climate conditions.
Key Features
- 1 GigaBit/s data transmission rate for fast downloads, streaming, and online gaming
- Transparent protective dust cover protecting the connector from environmental damage
- Toolless insulation displacement connector with integrated crimping for quick installation
- Power over Ethernet (PoE) support for simultaneous power and data transmission
- International standards compliance: ISO/IEC 11801 Ed. 3.0, EN 50173-1, and TIA/EIA 568 C
- Compact flush-mounted design fits standard boxes without additional wall modifications
- Slot system enables perfect multigang configuration with easy frame joining
- Color coding and label space for terminal marking and organization
- Compatible with RJ11, RJ12, and RJ45 plugs for versatile connectivity
- Halogen-free construction for environmental safety
Technical Specifications
| Specification |
Value |
| Product Reference | 572303 |
| EAN Code | 3245065723038 |
| Brand | Legrand |
| Product Name | Arteor RJ45 Socket Category 5e UTP 1 Module White |
| Connector Type | RJ45 8(8) |
| Category | 5E |
| Data Rate | Up to 1 GigaBit/s |
| Connection Type | Insulation Displacement Connector (IDC) |
| Number of Modules | 1 |
| Colour | White |
| RAL Number | 9003 |
| Device Width | 22.5 mm |
| Device Height | 45 mm |
| Device Depth | 34 mm |
| Built-in Depth | 25.2 mm |
| Installation Type | Flush-mounted |
| Mounting Method | Engage (snap) |
| Assembly Type | Basic element with central cover plate |
| Degree of Protection (IP) | IP20 |
| Impact Strength (IK) | IK03 |
| Operating Temperature Range | -10°C to +60°C |
| Storage Temperature Range | -10°C to +70°C |
| Maximum Input Cable Diameter | 9 mm |
| Dust Cover | Yes - Transparent protective cover |
| With Buses/Couplings | Yes |
| Shielded Buses | No |
| Separate Earthing Connection | No |
| With Label Space | Yes |
| Colour Coding | Yes |
| Terminal Marking Indication | Yes |
| Halogen Free | Yes |
| Antimicrobial Treatment | No |
| Outlet Direction | Straight |
| Compliance Standards | ISO/IEC 11801 Ed. 3.0, EN 50173-1, TIA/EIA 568 C |
| PoE Support | Yes - High capacity Power over Ethernet |
| Compatible Plugs | RJ11, RJ12, RJ45 |
| Suitable For | Commercial and residential installation, IP and analog phones |
| Indoor/Outdoor | Indoor use only |
