Shop Legrand Arteor RJ45 Category 5e UTP Socket 1 Module Champagne | 570058 In Iraq Best Prices
Professional-grade RJ45 Category 5e UTP socket with LCS² connector technology, supporting both AWG 22 single-core and AWG 26 multicore cables. Features dual color-coded contacts, T568A/B wiring schemes, and complies with ISO/IEC 11801, EN 50173-1, and TIA/EIA 568C standards.

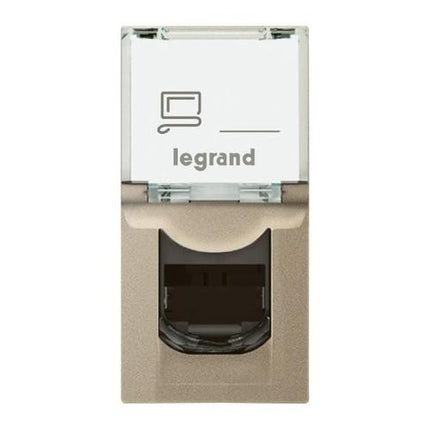

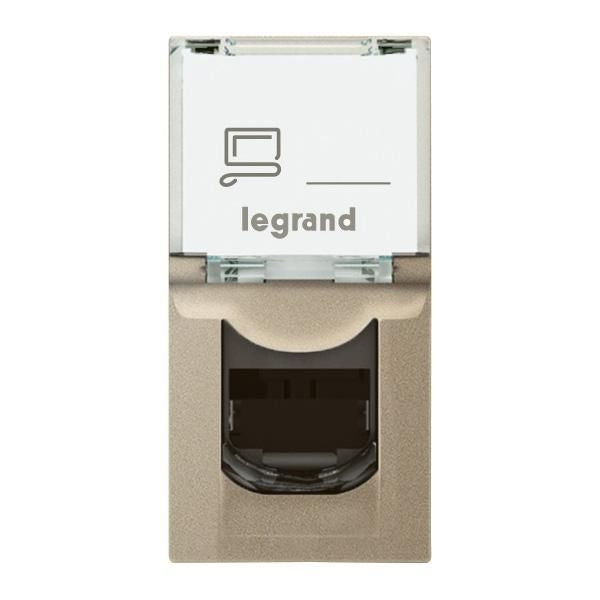

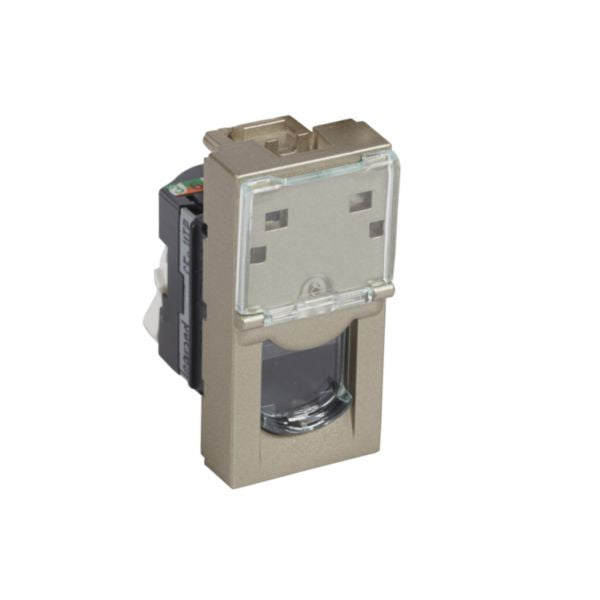

The Legrand Arteor RJ45 Category 5e UTP socket is a professional-grade networking component designed for reliable high-speed data transmission in residential and commercial installations. This 1-module champagne-colored socket features advanced LCS² connector technology with fast connection capabilities through integrated crimping functionality. The socket accommodates both AWG 22 single-core cables and AWG 26 multicore cables, making it versatile for various installation requirements. Compliant with ISO/IEC 11801 Ed. 2.0 amendment 2, EN 50173-1, and TIA/EIA 568C standards, this socket ensures compatibility with international networking specifications.
The socket is equipped with dual color-coded contacts and supports both T568A and T568B wiring schemes, allowing installers to follow their preferred standard configurations. With integrated dust cover protection and label space for identification, this component provides practical functionality for organized network installations. The champagne finish integrates seamlessly with Arteor design ranges, offering aesthetic appeal alongside technical performance. Featuring IP20 protection rating and IK03 impact resistance, the socket is suitable for flush-mounted, duct, and floor box installations.
The Legrand Arteor RJ45 socket delivers enterprise-class networking performance with user-friendly installation features. Its halogen-free construction meets environmental compliance requirements, and the wide operating temperature range of -40°C to 70°C ensures reliable performance in diverse climatic conditions. The insulation displacement connector technology eliminates the need for additional tools, streamlining the installation process while maintaining secure connections. This socket represents an ideal choice for professionals seeking quality, reliability, and ease of installation in network infrastructure projects.
Key Features
- LCS² connector technology with fast connection through integrated crimping
- Supports AWG 22 single-core and AWG 26 multicore cable compatibility
- Dual color-coded contacts with T568A and T568B wiring scheme support
- IP20 protection rating with IK03 impact resistance for durability
- Halogen-free construction meeting environmental compliance standards
- Integrated dust cover and label space for organized installations
- Wide operating temperature range from -40°C to 70°C
- Insulation displacement connector eliminating need for additional tools
- Suitable for flush-mounted, duct, and floor box installations
- Compliant with ISO/IEC 11801, EN 50173-1, and TIA/EIA 568C standards
Technical Specifications
| Specification |
Value |
| Product Type | RJ45 Category 5e UTP Socket |
| Connector Type | RJ45 8(8) with LCS² Technology |
| Cable Compatibility | AWG 22 single-core and AWG 26 multicore cables |
| Module Configuration | 1 Module |
| Color | Champagne |
| Connection Type | Insulation Displacement Connector (IDC) |
| Wiring Schemes | T568A and T568B |
| Device Dimensions | Width: 22.5mm, Height: 45mm, Depth: 33.7mm |
| Built-in Depth | 25.2mm |
| Maximum Cable Diameter | 9mm |
| IP Protection Rating | IP20 |
| Impact Resistance | IK03 |
| Operating Temperature Range | -40°C to +70°C |
| Storage Temperature Range | -40°C to +70°C |
| Installation Methods | Flush-mounted, Duct, Floor box/Subfloor mounted |
| Fastening Type | Engage (Snap) |
| Assembly Type | Basic element with central cover plate |
| Features | Dust cover included, Label space, Colour coding, Terminal marking indication |
| Shielding | Unshielded (UTP) |
| Environmental | Halogen-free construction |
| Standards Compliance | ISO/IEC 11801 Ed. 2.0 amendment 2, EN 50173-1, TIA/EIA 568C |
| Reference Number | 570058 |
| EAN Code | 3414970924582 |
| Manufacturer | Legrand |
| Product Line | Arteor |
