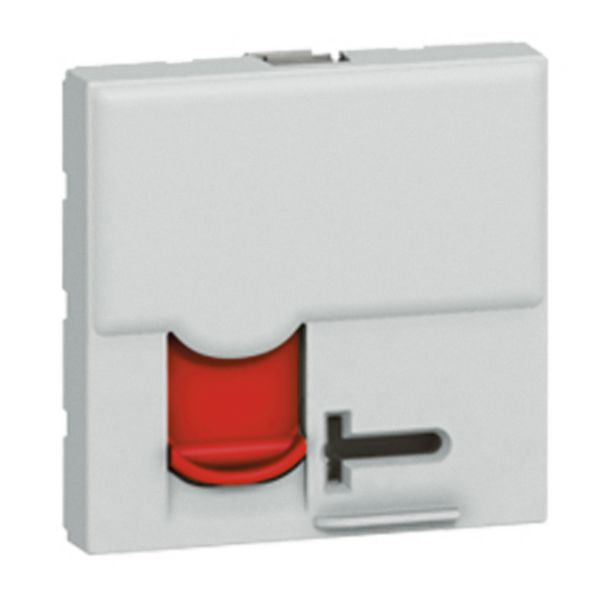

Shop Legrand Arteor RJ45 Cat 6A UTP Socket 2 Modules Soft Alu Red Shutter | 572871 In Iraq Best Prices
Professional RJ45 Cat 6A UTP socket with 10 GigaBit/s data rate, key lock security, red protective shutter, and toolless connection technology for commercial and residential installations.
The Legrand Arteor RJ45 socket category 6A UTP with controlled access is a professional-grade networking component designed for high-speed data transmission. This 2-module flush-mounted socket features soft aluminum finish with a distinctive red protective shutter, providing both aesthetic appeal and functional protection. Supporting data rates up to 10 GigaBit/s, this socket enables rapid file downloads and seamless streaming experiences, making it ideal for demanding applications.
Equipped with advanced features including a key lock system for security, this socket prevents unauthorized connector access while maintaining ease of installation. The toolless insulation displacement connector technology ensures quick and reliable connections without requiring specialized tools. With its integrated crimping mechanism, installation becomes straightforward for both commercial and residential applications. The socket is supplied with rocker plates and support frames, allowing perfect multigang configurations without additional wall groove cutting.
This RJ45 socket is fully compliant with international standards ISO/IEC 11801 Ed. 3.0, EN 50173-1, and TIA/EIA 568 C, ensuring compatibility with existing network infrastructure. The red protective dust cover shields the connector from environmental contaminants, while the color coding system facilitates proper installation. Suitable for IP and analog phones, this socket delivers exceptional performance for downloads, streaming, and online gaming applications requiring low latency and high reliability.
Key Features
- 10 GigaBit/s data transmission rate for ultra-fast downloads and streaming
- Key lock system with red protective dust cover for enhanced security and protection
- Toolless insulation displacement connector with integrated crimping for quick installation
- High-capacity PoE (Power over Ethernet) support for power and data transmission
- ISO/IEC 11801 Ed. 3.0, EN 50173-1, and TIA/EIA 568 C compliant design
Technical Specifications
| Specification |
Value |
| Product Reference | 572871 |
| EAN Code | 3414971918047 |
| Category | 6A (IEC) - RJ45 Cat 6A UTP |
| Data Rate | Up to 10 GigaBit/s |
| Connector Type | RJ45 8(8) Insulation Displacement Connector |
| Number of Modules | 2 modules |
| Finish | Soft Aluminum with Red Shutter |
| Installation Type | Flush-mounted, Duct, Floor box/subfloor mounted |
| Device Dimensions | 45mm (width) x 45mm (height) x 33.7mm (depth) |
| Built-in Depth | 25.2 mm |
| Degree of Protection | IP20 |
| Impact Strength | IK03 |
| Operating Temperature | -40°C to +70°C |
| Storage Temperature | -40°C to +70°C |
| Maximum Input Cable Diameter | 9 mm |
| Connection Method | Toolless with integrated crimping |
| Fastening Type | Engage (snap) |
| Features | Key lock system, Red protective dust cover, Color coding, Label space, Terminal marking |
| Compliance Standards | ISO/IEC 11801 Ed. 3.0, EN 50173-1, TIA/EIA 568 C |
| Halogen Free | Yes |
Order Legrand Arteor RJ45 Cat 6A UTP Socket 2 Modules Soft Alu Red Shutter | 572871 at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
