Shop Legrand Arteor RJ45 Cat 6 UTP Socket 2 Modules Soft Alu | 572886 In Iraq Best Prices
Professional RJ45 Cat 6 UTP socket with 2 modules, soft aluminum finish, red shutter protection, and key lock system. Supports 1 GigaBit/s data transmission and high-capacity PoE applications with toolless installation.

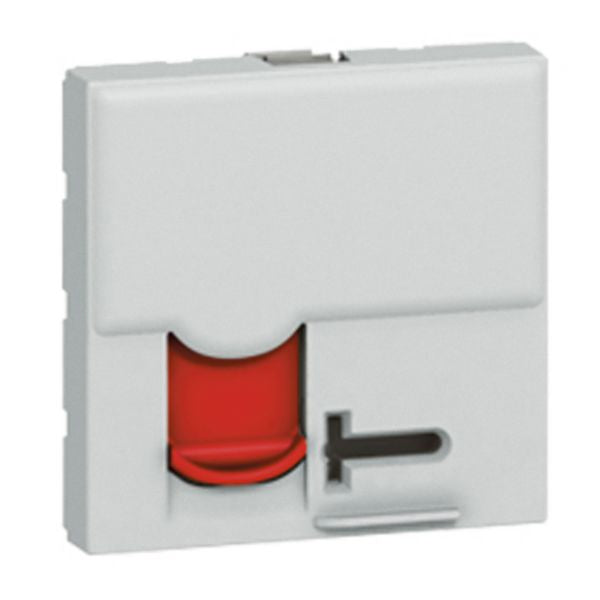

The Legrand Arteor RJ45 socket category 6 UTP with controlled access is a professional-grade networking solution designed for modern residential and commercial installations. This 2-module socket features a soft aluminum finish with red shutter protection, offering data transmission rates up to 1 GigaBit/s. The socket is equipped with a red protective dust cover that secures the connector and prevents external access through an integrated key lock system, making it ideal for secure network installations.
This RJ45 Cat 6 socket supports high-capacity Power over Ethernet (PoE) applications, allowing both data and electric power to be transmitted along the twisted pair Ethernet cabling. The socket features toolless connection with fast integrated crimping technology, compatible with cords equipped with RJ11, RJ12, or RJ45 plugs. With its slot system design, it allows perfect and easy multigang settings, and the support frames can be seamlessly joined for simplified installation without requiring additional wall groove cutting or complex cabling work.
Conforming to international standards ISO/IEC 11801 Ed. 3.0, EN 50173-1, and TIA/EIA 568 C, this socket is suitable for indoor use in various applications including IP and analog phones, streaming services, online gaming, and high-speed data downloads requiring low latency. The device features a built-in depth of 25.2 mm and operates reliably across temperatures from -40 to 70°C, with halogen-free construction meeting modern environmental standards.
Key Features
- RJ45 Cat 6 with data transmission up to 1 GigaBit/s for high-speed downloads and streaming
- Red protective dust cover with key lock system for secure connector access control
- Supports high-capacity Power over Ethernet (PoE) for simultaneous data and power transmission
- Toolless connection with integrated fast crimping technology for quick installation
- Compatible with RJ11, RJ12, and RJ45 plugs for flexible cabling options
- Slot system design for perfect multigang settings and easy support frame joining
- Soft aluminum finish with professional appearance suitable for residential and commercial use
- Conforms to ISO/IEC 11801 Ed. 3.0, EN 50173-1, and TIA/EIA 568 C standards
- Halogen-free construction meeting modern environmental and safety requirements
- IP20 protection rating with IK03 impact strength for reliable indoor performance
Technical Specifications
| Specification |
Value |
| Category | Category 6 (Cat 6) |
| Data Rate | Up to 1 GigaBit/s |
| Number of Modules | 2 modules |
| Connector Type | RJ45 8(8) |
| Color | Soft Aluminum with red shutter |
| Connection Type | Insulation displacement connector (IDC) |
| Installation Type | Flush-mounted, duct, or floor box installation |
| Device Width | 45 mm |
| Device Height | 45 mm |
| Device Depth | 33.7 mm |
| Built-in Depth | 25.2 mm |
| Degree of Protection | IP20 |
| Impact Strength | IK03 |
| Operating Temperature Range | -40 to 70°C |
| Storage Temperature Range | -40 to 70°C |
| Maximum Cable Diameter | 9 mm |
| Dust Cover | Yes, red protective dust cover included |
| Key Lock System | Yes, with controlled access |
| Halogen Free | Yes |
| Power over Ethernet (PoE) | Supported for high-capacity applications |
| Fastening Type | Engage (snap) fastening |
| Standards Compliance | ISO/IEC 11801 Ed. 3.0, EN 50173-1, TIA/EIA 568 C |
| Toolless Connection | Yes, with integrated fast crimping |
| Label Space | Yes |
| Third-party Cover Compatibility | Yes |
| Reference Number | 572886 |
| EAN Code | 3414971918252 |
| Manufacturer | Legrand |
