Shop Legrand Arteor RJ45 Cat 6 UTP Socket 1 Module White | 572302 In Iraq Best Prices
High-performance RJ45 Cat 6 UTP socket with 1 GigaBit/s data rate, toolless connection, PoE support, and flush-mount installation capability for residential and commercial networks.

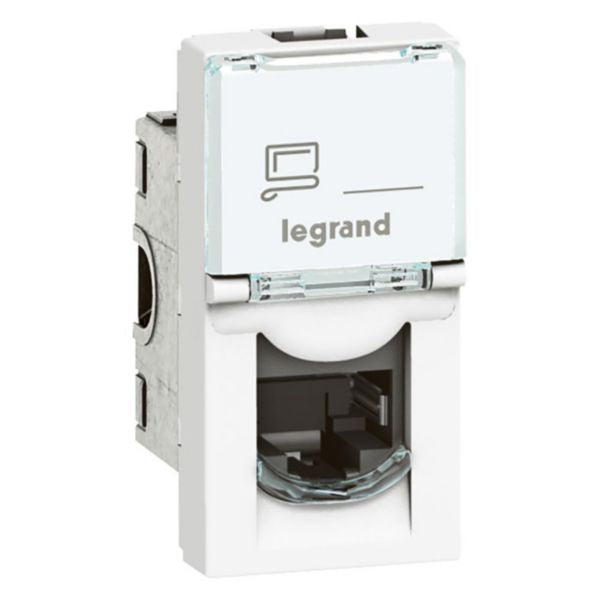

The Legrand Arteor RJ45 socket category 6 UTP is a high-performance networking outlet designed for modern residential and commercial installations. This single-module white socket supports data transmission rates up to 1 GigaBit/s, enabling rapid downloads and seamless streaming experiences. The socket features a transparent protective dust cover that safeguards the connector from debris and damage during installation and use. Equipped with toolless quick connection technology and integrated crimping, this RJ45 outlet provides professional-grade connectivity with minimal installation complexity. The device is fully compliant with international standards including ISO/IEC 11801 Ed. 3.0, EN 50173-1, and TIA/EIA 568 C specifications, ensuring reliable performance in demanding network environments.
This Arteor module excels in supporting high-capacity Power over Ethernet (PoE) applications, allowing electrical power to be transmitted alongside data signals through standard twisted pair Ethernet cabling. The innovative slot system enables perfect multigang configurations, allowing support frames to be seamlessly joined for simplified installation without requiring additional wall groove cutting or complex cabling work. Compatible with standard flush-mounted boxes, this socket accepts RJ11, RJ12, and RJ45 plugs, making it a versatile solution for various networking requirements. The color-coded terminal marking system facilitates quick identification and proper installation, while the mechanical design ensures secure engagement through snap fastening.
The product demonstrates excellent engineering with its 1-module design occupying minimal space while delivering maximum functionality. The built-in depth of 25.2 mm and overall device depth of 34 mm make it suitable for standard installation scenarios. With an operating temperature range of -10 to 60°C and storage capabilities from -10 to 70°C, this socket maintains performance across diverse environmental conditions. The halogen-free construction reflects Legrand's commitment to environmental sustainability and safety standards.
Key Features
- RJ45 Cat 6 UTP with data transmission up to 1 GigaBit/s for rapid downloads and streaming
- Toolless quick connection with integrated crimping for professional installation
- Transparent protective dust cover protecting connector from debris and damage
- Supports high-capacity Power over Ethernet (PoE) applications for power and data transmission
- Slot system for perfect multigang configuration and seamless frame joining
- Compatible with RJ11, RJ12, and RJ45 plugs for versatile networking applications
- Color-coded terminal marking for quick identification and proper installation
- Flush-mounted installation without additional wall groove cutting required
- Compliant with ISO/IEC 11801 Ed. 3.0, EN 50173-1, and TIA/EIA 568 C standards
- Halogen-free construction for environmental sustainability and safety
Technical Specifications
| Specification |
Value |
| Product Reference | 572302 |
| EAN Code | 3245065723021 |
| Brand | Legrand |
| Product Line | Arteor |
| Connector Type | RJ45 8(8) |
| Category | 6 (Cat 6) |
| Connection Type | Insulation Displacement Connector (IDC) |
| Data Rate | Up to 1 GigaBit/s |
| Number of Modules | 1 module |
| Color | White |
| RAL Number | 9003 |
| Installation Type | Flush-mounted |
| Mounting Method | Snap engagement (Engage) |
| Device Depth | 34 mm |
| Built-in Depth | 25.2 mm |
| Maximum Input Cable Diameter | 9 mm |
| Degree of Protection | IP20 |
| Impact Strength Rating | IK03 |
| Operating Temperature Range | -10°C to +60°C |
| Storage Temperature Range | -10°C to +70°C |
| Shielded Buses | No |
| Shielded Housing | No |
| Separate Earthing Connection | No |
| With Dust Cover | Yes - Transparent protective cover |
| With Terminal Resistor | No |
| With Label Space | Yes |
| Terminal Marking Indication | Yes - Color-coded |
| Mechanical Coding | No |
| Colour Coding | Yes |
| Compatible with Third-Party Covers | Yes |
| Separate Strain Relief | No |
| Outlet Direction | Straight |
| Halogen Free | Yes |
| Antimicrobial Treatment | No |
| Power over Ethernet (PoE) Support | Yes - High-capacity PoE applications |
| Standards Compliance | ISO/IEC 11801 Ed. 3.0, EN 50173-1, TIA/EIA 568 C |
| Connection Technology | Toolless quick connection with integrated crimping |
| Compatible Plug Types | RJ11, RJ12, RJ45 |
| Application | Residential and commercial installations, IP and analog phones |
| Suitable For | Downloads, streaming, online gaming with low latency |
