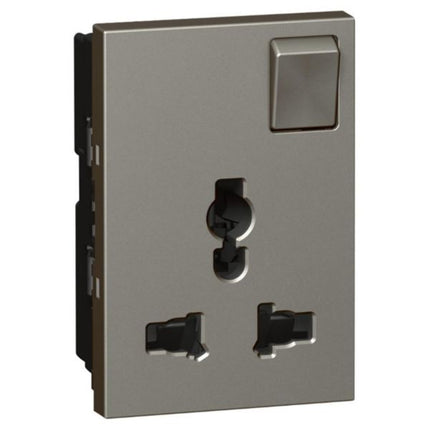

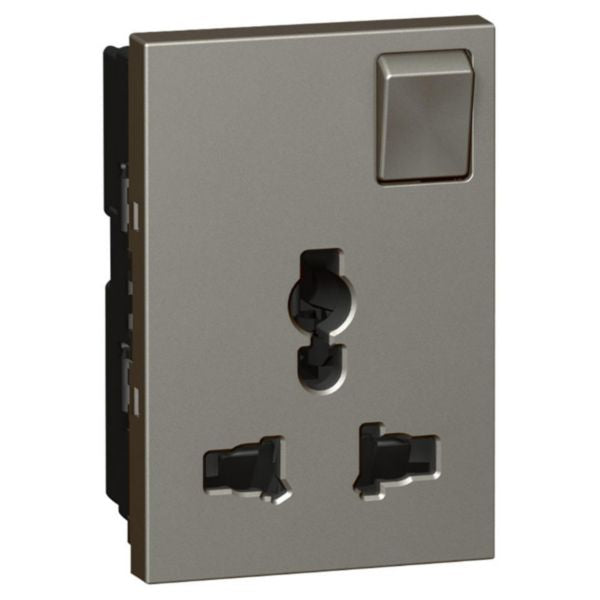

Shop Legrand Arteor Multistandard Socket 2P+E Switched Shuttered 3 Modules Magnesium | 572635 In Iraq Best Prices
Premium Legrand Arteor multistandard 2P+E switched socket with child safety shutters, 16A/250V, 3-module design with magnesium finish and enhanced contact protection for reliable international electrical installations.
The Legrand Arteor Multistandard Socket (REF. 572635) is a premium electrical outlet designed for international compatibility and enhanced safety. This sophisticated 2P+E switched socket features child safety shutters to prevent accidental contact with live terminals. The socket is configured as a basic element with a central cover plate and accommodates three modules, making it ideal for modern residential and commercial installations requiring multistandard socket solutions.
This socket outlet combines advanced engineering with user-friendly design, featuring a nominal current rating of 16A and nominal voltage of 250V, suitable for both 50-60 Hz frequencies. The magnesium finish provides a contemporary aesthetic while maintaining durability and corrosion resistance. With enhanced contact protection and a loop-through function capability, this socket ensures reliable performance in demanding environments. The device features a compact form factor with dimensions of 45mm width, 67.5mm height, and 30.2mm depth, making it suitable for standard electrical installations.
Manufactured by Legrand, a global leader in electrical distribution and building control solutions, this socket outlet meets stringent quality standards including RoHS compliance. The thermoplastic material construction is halogen-free, environmentally responsible, and features a lacquered matte surface finish. The socket is equipped with screwed terminals for secure cable connections supporting flexible or rigid cables from 4-4mm² cross-section, ensuring professional-grade installation and long-term reliability.
Key Features
- Multistandard socket outlet compatible with international electrical standards for global usage
- Child safety shutters provide enhanced protection against accidental contact with live terminals
- Switched design with on/off switch operator for convenient power control
- Loop-through function capability allows daisy-chaining of multiple outlets
- Enhanced contact protection ensures secure and reliable electrical connections
- Halogen-free thermoplastic material construction for environmental responsibility
- Lacquered matte magnesium finish provides contemporary aesthetics and corrosion resistance
- IP20 protection rating suitable for standard indoor residential and commercial environments
- IK04 impact strength rating provides adequate protection against mechanical stress
- Screwed terminal connections support flexible or rigid cables for professional installation
Technical Specifications
| Specification |
Value |
| Product Type | Multistandard Socket Outlet with Switch |
| Reference Number | 572635 |
| EAN Code | 3245065726350 |
| Brand | Legrand |
| Product Range | Arteor International |
| Socket Configuration | 2P+E Switched with Shutters |
| Number of Modules | 3 modules |
| Number of Active Contacts (Round) | 2 |
| Number of Active Contacts (Flat) | 2 |
| Number of Socket Outlets | 1 |
| Number of Switchable Outlets | 1 |
| Nominal Current | 16 A |
| Nominal Voltage | 250 V |
| Frequency Range | 50-60 Hz |
| Number of Phases | 1 |
| Connection Type | Screwed Terminal |
| Cable Section Support | 4-4 mm² |
| Cable Type | Flexible or Rigid |
| Assembly Arrangement | Basic Element with Central Cover Plate |
| Mounting Method | Module Frame |
| Type of Fastening | Mounting with Screw |
| Material | Thermoplastic |
| Halogen Free | Yes |
| Surface Protection | Lacquered |
| Surface Finishing | Matt |
| Colour | Magnesium (Aluminium) |
| Metallic Colour | No |
| Transparent | No |
| With Enhanced Contact Protection | Yes |
| With Loop Through Function | Yes |
| With On/Off Switch | Yes |
| Colour of Switch Operator | Other (Integrated) |
| With Hinged Lid | No |
| Lockable | No |
| Eject Mechanism | No |
| With Function Lighting | No |
| Overvoltage Protection | No |
| Fault Current Protection | No |
| With Miniature Fuse | No |
| Special Power Supply | None |
| Protective Contact | Yes (2P+E) |
| Concurrently Switching Neutral Conductor | No |
| Socket Outlets Phase-Separated | No |
| Imprint/Indication | Other |
| Label Space/Information Surface | No |
| Insulated Mounting | No |
| Device Width | 45 mm |
| Device Height | 67.5 mm |
| Device Depth | 30.2 mm |
| Built-in Depth | 41.2 mm |
| Degree of Protection (IP) | IP20 |
| Degree of Impact Strength (IK) | IK04 |
| Operating Temperature Range | -5 to 40 °C |
| Storage Temperature Range | -10 to 70 °C |
| Voltage Type | AC |
| Power Delivery | No |
| Compatible with Apple HomeKit | No |
| Compatible with Amazon Alexa | No |
| Compatible with Google Assistant | No |
| IFTTT Support | No |
| With Wi-Fi Signal Repeater | No |
| With Built-in Bluetooth Speaker | No |
| For Heavy Conditions (VDE) | No |
| Connected Object | No |
| Antimicrobial Treatment | No |
| Compliance | RoHS Compliant |
Order Legrand Arteor Multistandard Socket 2P+E Switched Shuttered 3 Modules Magnesium | 572635 at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
