Shop Legrand Arteor HDMI Socket Preterminated 1 Module Magnesium | 572596 In Iraq Best Prices
Premium preterminated HDMI 1.4 socket with 15cm cord and dual female connectors, designed for high-definition audio/video transmission in residential and commercial applications. Features IP40 protection, thermoplastic construction, and reliable performance across -50°C to 50°C temperature range.

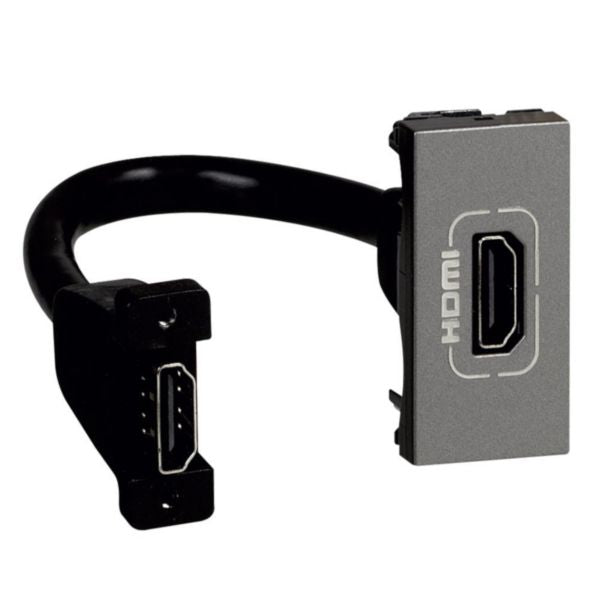

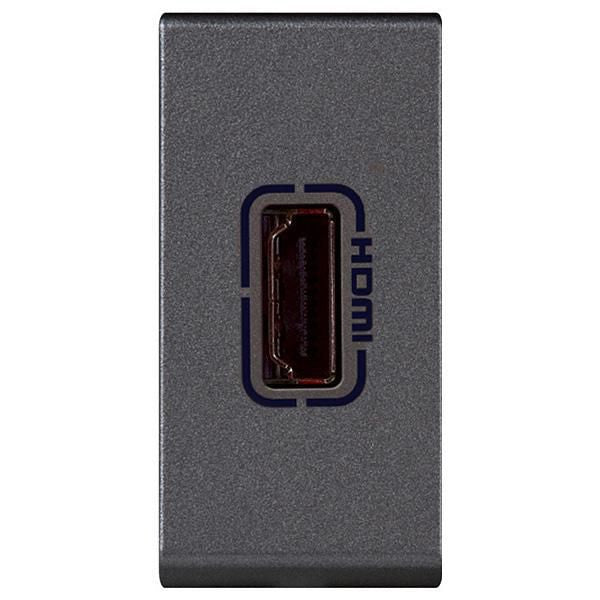

The Legrand Arteor HDMI socket is a premium audio/video outlet designed for transmitting high-definition digital audio and video streams between source devices such as computers, DVD or Blu-Ray players, and compatible receivers like TVs or video projectors. This preterminated socket comes equipped with a 15 cm cord and 2 female connectors, making it ready for immediate installation. The socket features HDMI 1.4 technology and supports a maximum cable length of 10 meters between two sockets, ensuring optimal signal quality and compatibility with modern digital entertainment systems.
Crafted from durable thermoplastic material with a matt grey finish, this 1-module socket integrates seamlessly with the Arteor range of wiring devices. The socket is engineered with a straight outlet direction and female contact type, providing a secure and reliable connection. It features a basic element design with central cover plate and is surface-mounted for flexible installation options. The device dimensions are 45mm width and 45mm height with a built-in depth of 28.5mm, making it compact and space-efficient for residential and commercial applications.
This HDMI socket meets stringent quality standards with IP40 degree of protection and IK04 impact strength rating. It operates reliably across a wide temperature range from -50°C to 50°C, ensuring consistent performance in various environmental conditions. The product includes an imprint field for labeling and is designed to accommodate the demanding requirements of modern smart homes and commercial building control systems.
Key Features
- HDMI 1.4 technology for high-definition digital audio and video transmission
- Preterminated socket with 15cm cord and 2 female connectors for immediate installation
- Maximum cable length support of 10 meters between two sockets
- IP40 degree of protection and IK04 impact strength rating
- Surface-mounted design with compact dimensions (45mm x 45mm x 28.5mm depth)
- Durable thermoplastic construction with matt grey finish
- Operates reliably across wide temperature range (-50°C to 50°C)
- Basic element with central cover plate configuration
- Straight outlet direction with female contact type
- Compatible with Legrand Arteor wiring device range
Technical Specifications
| Specification |
Value |
| Product Type | HDMI Audio/Video Socket |
| Technology Standard | HDMI 1.4 |
| Socket Configuration | Preterminated with 15cm cord and 2 female connectors |
| Maximum Cable Length | 10 meters between two sockets |
| Number of Modules | 1 module |
| Contact Type | Female |
| Outlet Direction | Straight |
| Material | Thermoplastic |
| Color | Magnesium Grey |
| Surface Finish | Matt |
| Device Width | 45 mm |
| Device Height | 45 mm |
| Built-in Depth | 28.5 mm |
| Minimum Box Depth | 50 mm |
| Mounting Method | Surface mounted |
| Assembly Type | Basic element with central cover plate |
| IP Protection Rating | IP40 |
| Impact Strength Rating | IK04 |
| Operating Temperature Range | -50°C to +50°C |
| Storage Temperature Range | -10°C to +70°C |
| Type of Fastening | Engage (Snap) |
| Shielded Housing | No |
| Dust Cover | No |
| Hinged Lid | No |
| Strain Relief | No |
| With Lighting | No |
| Antimicrobial Treatment | No |
| Imprintable Label | Yes, without indication field |
| SKU Reference | 572596 |
| EAN Code | 3245065725964 |
Order Legrand Arteor HDMI Socket Preterminated 1 Module Magnesium | 572596 at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
