Shop Legrand Arteor HD15 Socket Preterminated 1 Module Magnesium | 572597 In Iraq Best Prices
Professional HD15 preterminated video socket with 15cm cord, VGA to UXGA resolution support, halogen-free thermoplastic construction, magnesium finish, IP40 rated, ideal for audio/video transmission in residential and commercial applications.

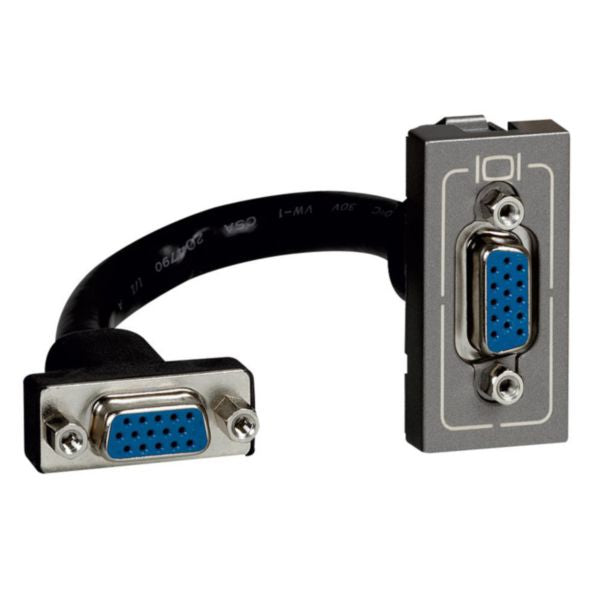

The Legrand Arteor HD15 socket is a professional-grade audio/video transmission device designed for connecting computer sources to compatible receivers such as video projectors, televisions, and computer screens. This preterminated socket features a female HD15 connector that supports VGA to UXGA resolution standards, ensuring high-quality analog video stream transmission. The socket comes equipped with a 15 cm cord and 2 female connectors, ready for immediate installation without additional configuration required.
This 1-module flush-mounted socket is crafted from halogen-free thermoplastic material in an elegant magnesium grey finish, making it suitable for both residential and commercial applications. The device features a matt surface finish and is designed with IP40 protection rating and IK04 impact strength rating, providing reliable performance in standard indoor environments. With its snap engagement fastening system and compact dimensions of 22.5 mm width and 45 mm height, the Arteor HD15 socket integrates seamlessly into modern building infrastructures.
The socket operates reliably within a temperature range of -5 to 50°C during operation and -10 to 70°C during storage, making it suitable for various climate conditions. As part of the Legrand Arteor range, this product combines aesthetic design with technical excellence, meeting international standards for safety and performance. The preterminated design eliminates the need for field termination, reducing installation time and ensuring consistent quality.
Key Features
- Preterminated HD15 female socket with 15cm preattached cord and 2 female connectors
- Supports VGA to UXGA video resolution for high-quality analog video transmission
- Halogen-free thermoplastic material with matt magnesium grey finish
- 1-module flush-mounted design with IP40 protection and IK04 impact resistance
- Operating temperature range -5 to 50°C with snap engagement fastening system
Technical Specifications
| Specification |
Value |
| Product Type | Audio/Video Socket - HD15 Female Connector |
| Connector Type | D-Sub 15-pole Female |
| Resolution Support | VGA to UXGA |
| Cable Length | 15 cm preterminated with 2 female connectors |
| Material | Halogen-free thermoplastic |
| Color | Magnesium Grey |
| Surface Finish | Matt |
| Mounting Method | Flush-mounted |
| Number of Modules | 1 module |
| Device Width | 22.5 mm |
| Device Height | 45 mm |
| Built-in Depth | 24 mm |
| IP Protection Rating | IP40 |
| Impact Strength Rating | IK04 |
| Operating Temperature | -5 to 50°C |
| Storage Temperature | -10 to 70°C |
| Fastening Type | Snap engagement |
| Outlet Direction | Straight |
| Support Ring | No |
| Dust Cover | No |
