Shop Legrand Arteor HD15 3.5mm Jack Socket Screw Terminal Magnesium | 572788 In Iraq Best Prices
Professional HD15 + 3.5mm Jack dual-socket outlet for VGA video and audio transmission with screw terminal connection, halogen-free thermoplastic construction, and IP40 protection rating

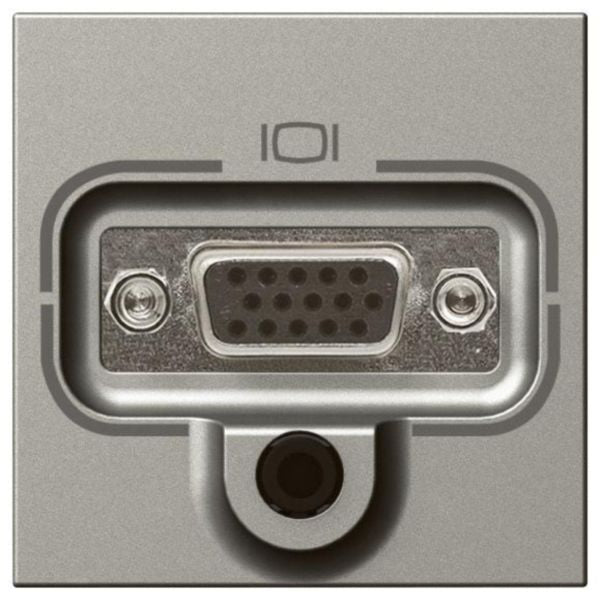

The Legrand Arteor HD15 + 3.5mm Jack socket is a professional-grade audio/video outlet designed for seamless transmission of analogue video streams between source devices and compatible receivers. This dual-socket solution combines a female HD15 (D-Sub 15-pole) connector with a 3.5mm jack socket, making it ideal for connecting computers to video projectors, televisions, computer screens, and other display devices supporting VGA to UXGA resolution. The maximum cable length between two sockets is 15 meters, ensuring flexibility in installation configurations.
Crafted with thermoplastic material and finished in elegant magnesium grey, this socket module features screw-type terminal connections for secure and reliable installation. The 2-module Arteor system design allows for flush-mounted installation with a built-in depth of 31mm and requires a minimum installation box depth of 40mm. The product meets stringent safety and environmental standards, being halogen-free and RoHS compliant, making it suitable for residential, commercial, and institutional applications.
With an operating temperature range of -5 to 50°C and storage capacity from -10 to 70°C, this socket maintains consistent performance across various environmental conditions. The IP40 degree of protection and IK04 impact strength rating ensure durability in typical indoor environments. The matt surface finish provides a professional appearance while the 45mm x 45mm device dimensions ensure compatibility with standard installation boxes.
Key Features
- Dual HD15 Female D-Sub 15-pole socket and 3.5mm Jack socket combination for video and audio connectivity
- Supports VGA to UXGA resolution video transmission up to 15 meters cable length
- Screw-type terminal connections for secure and reliable installation
- Halogen-free thermoplastic material with magnesium grey finish for professional appearance
- IP40 protection rating and IK04 impact strength for indoor use
- Flush-mounted design with 31mm built-in depth and 2-module Arteor system compatibility
- Operating temperature range -5 to 50°C with storage capacity -10 to 70°C
- RoHS compliant and environmentally friendly construction
Technical Specifications
| Specification |
Value |
| Product Type | Audio/Video Socket - HD15 + 3.5mm Jack Dual Socket |
| Connector Type | Female D-Sub 15-pole (HD15) + 3.5mm Jack |
| Video Resolution Support | VGA to UXGA |
| Maximum Cable Length | 15 meters between two sockets |
| Terminal Connection Type | Screw-type terminal connection |
| Material | Thermoplastic (Halogen-free) |
| Color | Magnesium Grey |
| Surface Finish | Matt |
| Number of Modules | 2 modules |
| Mounting Method | Flush-mounted |
| Device Width | 45 mm |
| Device Height | 45 mm |
| Built-in Depth | 31 mm |
| Minimum Installation Box Depth | 40 mm |
| Protection Rating (IP) | IP40 |
| Impact Strength Rating (IK) | IK04 |
| Operating Temperature Range | -5 to 50°C |
| Storage Temperature Range | -10 to 70°C |
| Support Ring | No |
| Dust Cover | No |
| Hinged Lid | No |
| Outlet Direction | Straight |
| Shielded Housing | No |
| With Lighting | No |
| Antimicrobial Treatment | No |
| RoHS Compliance | Yes |
| SKU Reference | 572788 |
| EAN Code | 3245065727883 |
