Shop Legrand Arteor German 16A 2P+E Shuttered Socket Green 2 Modules | 572462 In Iraq Best Prices
Premium Legrand Arteor German standard socket outlet with 16A capacity, 2P+E shuttered design for child safety, green finish, and 2-module configuration. Features IP40 protection, halogen-free construction, and RoHS compliance for secure electrical installations.

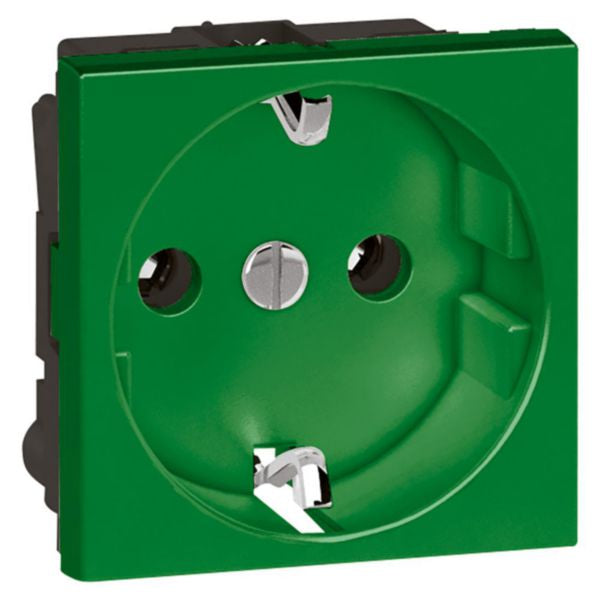

The Legrand Arteor German Standard Socket Outlet is a premium electrical wiring device designed for modern residential and commercial installations. This 16A rated socket features a 2P+E (Schuko) configuration with advanced shuttered protection for enhanced child safety. The socket is constructed from high-quality thermoplastic material and finished in distinctive green color (RAL 6016), making it easily identifiable for specific circuits or applications. The device operates at 250V with 50-60Hz frequency compatibility, providing reliable performance across different electrical systems.
This 2-module socket outlet is specifically engineered for the Arteor international range and comes equipped with protective contact (CEE 7/3 type F) for secure electrical connections. The shuttered design automatically covers the contact points when not in use, preventing accidental contact and enhancing safety in households with children. The socket features a loop-through function, allowing for convenient daisy-chaining installations in wall-mounted frames. With IP40 protection rating and IK04 impact resistance, this outlet is suitable for standard indoor environments and can withstand moderate physical stress.
The installation is straightforward with snap mounting engagement to compatible support frames and mounting plates. The socket accommodates flexible or rigid cables with cross-sections ranging from 4-4 mm², with screwed terminal connections ensuring secure wire attachment. Built-in depth of 31.5mm makes it compatible with standard wall-mounted boxes, while the compact 45x45mm face plate dimensions ensure seamless integration with Arteor range aesthetics. This product is halogen-free, compliant with RoHS directives, and backed by comprehensive international certifications.
Key Features
- German Standard 2P+E Schuko Socket with 16A rated capacity for reliable power delivery
- Advanced shuttered design with automatic contact protection for enhanced child safety
- Distinctive green color (RAL 6016) for easy circuit identification and organization
- IP40 protection rating and IK04 impact resistance for standard indoor environments
- Halogen-free thermoplastic construction with RoHS compliance for environmental safety
- Loop-through function enabling convenient daisy-chaining installations
- Snap mounting engagement for easy installation on support frames
- Screwed terminal connections accommodating 4-4 mm² flexible or rigid cables
- 250V nominal voltage with 50-60Hz frequency compatibility
- Compact 45x45mm face plate with 31.5mm built-in depth for standard wall boxes
Technical Specifications
| Specification |
Value |
| Product Type | German Standard Socket Outlet (CEE 7/3 Type F) |
| Rated Current | 16 Amperes |
| Rated Voltage | 250 Volts AC |
| Frequency Range | 50-60 Hz |
| Number of Modules | 2 modules |
| Socket Configuration | 2P+E shuttered with child protection |
| Material | Thermoplastic (Halogen-free) |
| Color | Green (RAL 6016) |
| Protection Rating | IP40 |
| Impact Resistance | IK04 |
| Face Plate Dimensions | 45 x 45 mm |
| Device Depth | 40 mm |
| Built-in Depth | 31.5 mm |
| Cable Section Range | 4-4 mm² (flexible or rigid) |
| Connection Type | Screwed terminal |
| Mounting Method | Snap mounting (engagement) |
| Operating Temperature | -5 to +50 °C |
| Storage Temperature | -10 to +70 °C |
| Contact Type | Protective contact (Other type) |
| Number of Active Contacts | 2 round contacts |
| Loop-Through Function | Yes |
| Shuttered Protection | Yes - enhanced contact protection |
| RoHS Compliance | Yes |
| Reference Number | 572462 |
| EAN Code | 3245065724622 |
