Shop Legrand Arteor Euro-US Socket Outlet 16A 250V Magnesium | 572616 In Iraq Best Prices
Premium Euro-US multi-standard socket outlet with advanced safety shutters, 16A/250V capacity, magnesium finish, and halogen-free construction for safe, reliable residential and commercial electrical installations.

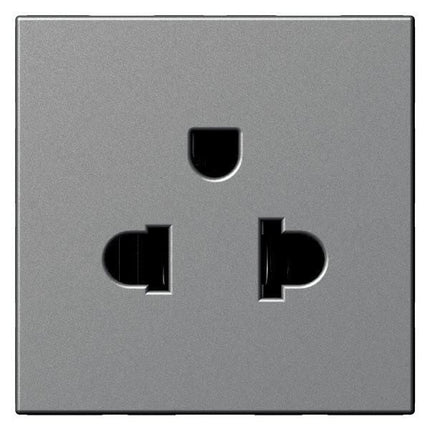

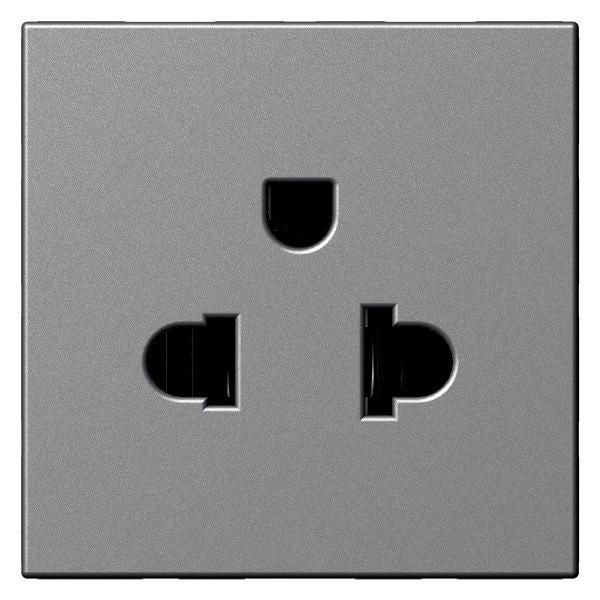

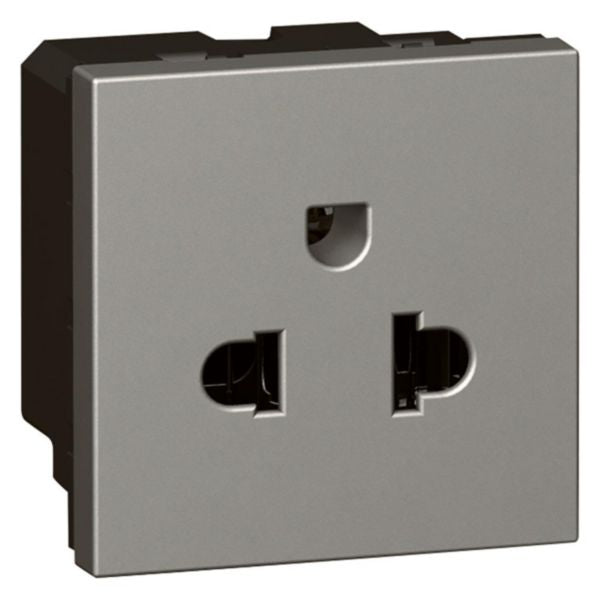

The Legrand Arteor™ Socket outlet is a premium multi-standard electrical socket designed for modern residential and commercial applications. This Euro-US type socket outlet combines European and American standards, offering versatile compatibility with 15A/127V and 16A/250V specifications. The outlet features advanced safety mechanisms with shutters to protect against accidental contact, making it ideal for households with children and safety-conscious installations.
Crafted from high-quality thermoplastic material in elegant magnesium grey finish, this socket outlet delivers both durability and aesthetic appeal. The 2-module design allows for flexible installation in standard receptacles and floor sockets, providing adaptability for various mounting scenarios. With its IP40 degree of protection and IK04 impact strength rating, this outlet withstands everyday wear and environmental challenges while maintaining optimal performance.
The Arteor™ socket features screwed terminal connections supporting flexible or rigid cables from 4-4mm², ensuring secure and reliable electrical connections. Operating across 50-60 Hz frequencies and maintaining performance in temperature ranges from -5°C to 50°C, this outlet is engineered for consistent reliability in diverse climates. The halogen-free composition and RoHS compliance make it an environmentally responsible choice for modern electrical installations.
Key Features
- Multi-standard Euro-US socket outlet compatible with both European and American electrical standards
- Advanced safety shutters for enhanced contact protection preventing accidental electrical hazards
- Dual voltage support: 15A/127V and 16A/250V for versatile global compatibility
- Premium magnesium grey finish with thermoplastic construction for durability and aesthetic appeal
- IP40 protection rating and IK04 impact strength for reliable performance in demanding environments
Technical Specifications
| Specification |
Value |
| Product Type | Multi-standard Socket Outlet |
| Voltage Rating | 15A/127V and 16A/250V |
| Nominal Current | 16A |
| Nominal Voltage | 250V |
| Frequency | 50-60 Hz |
| Socket Configuration | Euro-US 2P+E with shutters |
| Number of Modules | 2 modules |
| Material | Thermoplastic |
| Color | Magnesium Grey |
| Device Width | 45 mm |
| Device Height | 45 mm |
| Device Depth | 35.2 mm |
| Built-in Depth | 25.7 mm |
| Connection Type | Screwed Terminal |
| Cable Section | 4-4 mm² |
| Protection Degree | IP40 |
| Impact Strength | IK04 |
| Operating Temperature | -5°C to +50°C |
| Storage Temperature | -10°C to +70°C |
| Halogen Free | Yes |
| Contact Protection | Enhanced with shutters |
| Mounting Method | Module Frame with Snap Mounting |
| Reference Number | 572616 |
| EAN Code | 3245065726169 |
| RoHS Compliant | Yes |
