Shop Legrand Arteor Chinese Socket Outlet 16A 2P+E Shuttered | 572621 In Iraq Best Prices
Premium Chinese-type socket outlet with 16A capacity, shuttered safety design, and magnesium finish for international applications

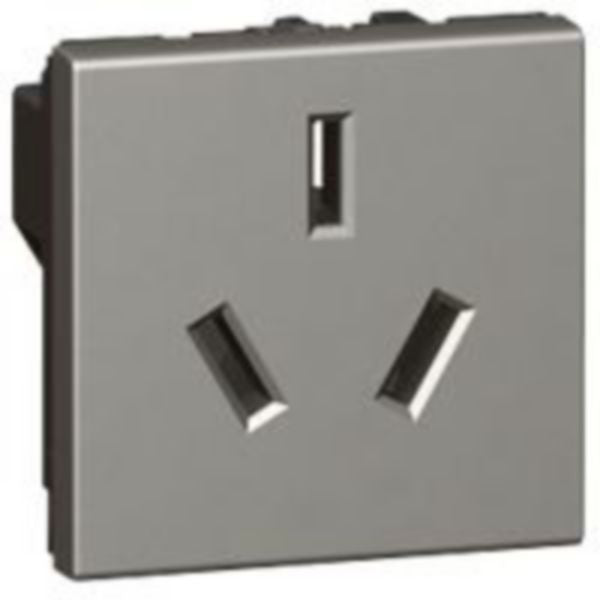

The Legrand Arteor Chinese Socket Outlet is a premium wiring device designed for international applications, specifically engineered to accommodate Chinese-type plugs with enhanced safety features. This 16A, 2P+E shuttered socket outlet provides reliable power distribution in residential and commercial settings. The shuttered design incorporates child safety protection, preventing accidental contact with live conductors. The socket is housed in a magnesium-colored thermoplastic casing with a matt finish, offering durability and aesthetic appeal for modern interior designs.
This 2-module socket outlet features screwed terminal connections compatible with flexible or rigid cables ranging from 0.5mm² to 5mm² in cross-section. The device operates at 250V AC with a frequency range of 50-60Hz, making it suitable for various electrical systems worldwide. The enhanced contact protection system ensures safe and reliable operation, while the halogen-free material composition meets environmental and safety standards. The socket maintains an IP40 protection rating and IK04 impact strength rating, providing adequate protection for typical indoor installations.
The Arteor range represents Legrand's commitment to combining functionality with contemporary design. This particular model is ideal for locations requiring Chinese-standard electrical outlets, such as international hotels, offices, and residential properties. The snap-mounting system allows for quick and secure installation within standard module frames, while the loop-through function enables flexible circuit configurations. With its comprehensive safety features and robust construction, this socket outlet ensures long-term reliable performance in demanding environments.
Key Features
- Chinese 2P+E shuttered socket outlet with child safety protection
- 16A rated capacity at 250V AC with 50-60Hz compatibility
- 2-module design with magnesium thermoplastic casing
- Enhanced contact protection and halogen-free material composition
- Screwed terminal connections for 0.5-5mm² cable sections
- IP40 protection rating and IK04 impact strength rating
- Loop-through function for flexible circuit configurations
- Snap-mounting system for easy installation in module frames
Technical Specifications
| Specification |
Value |
| Product Type | Chinese Socket Outlet |
| Rated Current | 16 Amperes |
| Rated Voltage | 250 Volts AC |
| Frequency Range | 50-60 Hz |
| Number of Modules | 2 modules |
| Socket Configuration | 2P+E shuttered with protective contacts |
| Material | Thermoplastic (Halogen-free) |
| Color | Magnesium Grey |
| Surface Finish | Matt lacquered |
| Device Dimensions (W×H×D) | 45×45×42 mm |
| Built-in Depth | 36 mm |
| Connection Type | Screwed terminal |
| Cable Section Range | 0.5-5 mm² |
| Protection Rating | IP40 |
| Impact Strength Rating | IK04 |
| Operating Temperature | -5 to +50°C |
| Storage Temperature | -10 to +70°C |
| Contact Protection | Enhanced (Flat protective contacts) |
| Mounting Method | Snap mounting in module frame |
| Loop Through Function | Yes |
| Child Safety | Shuttered design |
| Reference Number | 572621 |
| EAN Code | 3245065726213 |
Order Legrand Arteor Chinese Socket Outlet 16A 2P+E Shuttered | 572621 at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
