Shop Legrand Arteor British Standard 2P+E Switched Socket Outlet 13A Champagne | 570044 In Iraq Best Prices
Premium British Standard 13A switched socket outlet with child safety shutters, BS 1363 certified, ASTA licensed, 3-module champagne design with enhanced contact protection and halogen-free construction.

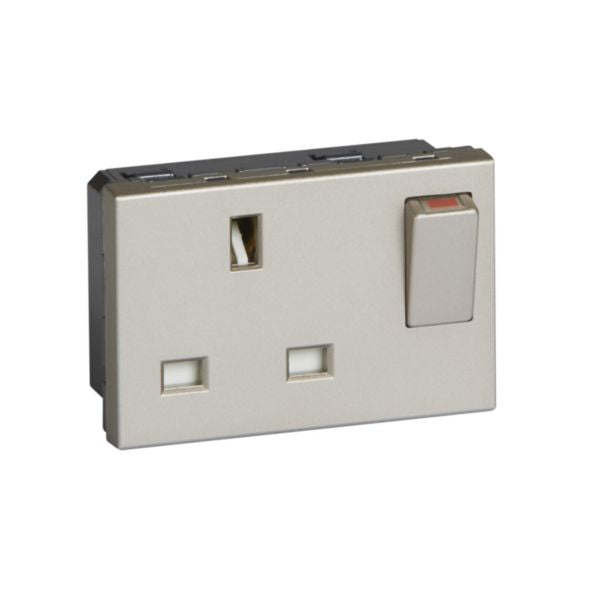

The Legrand Arteor British Standard 2P+E Switched Socket Outlet is a premium electrical wiring device designed for modern residential and commercial installations. This 13A socket outlet combines superior safety features with elegant champagne-colored design, featuring a protective shuttered mechanism for enhanced child safety. Manufactured to BS 1363 Part 2 standards with ASTA certification, this outlet provides reliable power distribution with integrated on/off switching capability. The socket features flat protective contacts, enhanced contact protection, and is constructed from halogen-free thermoplastic material for environmental compliance.
This 3-module socket outlet is designed for module frame mounting with screwed terminal connections, accommodating flexible or rigid cables with cross-sections of 4mm². Operating at 250V with 50-60Hz frequency, the outlet maintains optimal performance across a wide temperature range from -5°C to 50°C. The champagne finish provides a sophisticated aesthetic that complements contemporary interior designs while maintaining durability with its glossy lacquered surface. With an IP20 protection rating and IK04 impact strength rating, this outlet is suitable for standard indoor environments and offers reliable long-term performance.
The Arteor range represents Legrand's commitment to quality electrical infrastructure, combining British safety standards with international design excellence. Each outlet undergoes rigorous testing and certification to ensure compliance with RoHS directives and REACH declarations. The loop-through function enables convenient daisy-chaining for multi-outlet installations, while the integrated switch provides convenient on/off control without requiring separate wall switches.
Key Features
- British Standard BS 1363 Part 2 compliant with ASTA certification for child safety
- Shuttered socket outlets with enhanced contact protection for maximum safety
- Integrated on/off switch for convenient power control without separate switches
- Halogen-free thermoplastic construction for environmental compliance and durability
- 3-module frame system with champagne finish for modern aesthetic appeal
- Flat protective contacts with 250V 13A nominal rating
- Loop-through function enabling daisy-chain multi-outlet installations
- Screwed terminal connections supporting 4mm² flexible or rigid cables
- IP20 protection rating suitable for standard indoor environments
- IK04 impact strength rating for reliable performance in typical use
Technical Specifications
| Specification |
Value |
| Product Reference | 570044 |
| EAN Code | 3414970924162 |
| Standard Compliance | British Standard BS 1363 Part 2, ASTA certified |
| Nominal Current | 13 Amperes |
| Nominal Voltage | 250 Volts AC |
| Frequency Range | 50-60 Hz |
| Number of Modules | 3 modules |
| Socket Type | 2P+E (2 Pole + Earth) Switched |
| Number of Socket Outlets | 1 outlet |
| Protective Contact Type | Flat protective contacts |
| Connection Type | Screwed terminal |
| Cable Section Range | 4-4 mm² (flexible or rigid) |
| Mounting Method | Module frame system |
| Type of Fastening | Mounting with screw |
| Material | Halogen-free thermoplastic |
| Color | Champagne (Titanium) |
| Surface Finishing | Glossy lacquered |
| Device Width | 67.5 mm |
| Device Height | 45 mm |
| Device Depth | 46.2 mm |
| Built-in Depth | 21.1 mm |
| Operating Temperature Range | -5°C to +50°C |
| Storage Temperature Range | -10°C to +70°C |
| IP Protection Rating | IP20 |
| Impact Strength Rating | IK04 |
| Safety Features | Shuttered for child safety, enhanced contact protection |
| Switch Operator Color | Titanium |
| With On/Off Switch | Yes |
| Loop Through Function | Yes |
| Concurrently Switching Neutral | No |
| With Hinged Lid | No |
| Lockable | No |
| Overvoltage Protection | No |
| Fault Current Protection | No |
| Voltage Type | AC (Alternating Current) |
| Environmental Compliance | RoHS Directive compliant, REACH Declaration compliant |
| Certifications | ASTA-1068, OC/CB-FR_706411 |
Order Legrand Arteor British Standard 2P+E Switched Socket Outlet 13A Champagne | 570044 at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
