Shop Legrand Arteor American 2P+E Socket Outlet 15A 127V Champagne | 570040 In Iraq Best Prices
Premium Legrand Arteor American 2P+E socket outlet with 15A/127V capacity, champagne finish, NEMA 5-15 compliant, halogen-free thermoplastic construction, and advanced safety features for reliable North American electrical installations.

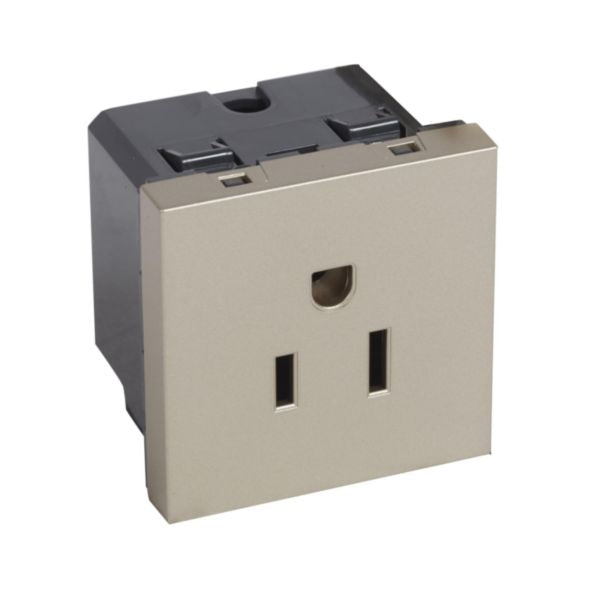

The Legrand Arteor American type 2P+E socket outlet is a premium electrical component designed for North American installations, specifically compliant with NEMA 5-15 standards. This 15 Ampere, 127 Volt outlet features a sophisticated champagne-colored finish that seamlessly integrates with modern interior designs. The socket outlet is engineered with two modules and includes a rocker plate mechanism, requiring installation with support frames and decorative plates for complete functionality.
This socket outlet incorporates advanced safety features including enhanced contact protection and a loop-through function capability, making it ideal for both residential and commercial applications. The thermoplastic material construction is halogen-free, ensuring environmental compliance and safety standards. With a nominal current rating of 15A and frequency compatibility of 50-60 Hz, this outlet provides reliable power distribution for standard North American electrical systems.
The Arteor socket outlet features snap mounting capabilities with a built-in depth of 26.8mm, making it compatible with standard wall installations. The device dimensions are compact at 45mm width and height with a 35.3mm depth, allowing for seamless integration into existing electrical panels. Featuring IP40 degree of protection and IK04 impact strength rating, this outlet is suitable for general indoor use with protection against dust and splash. The screwed terminal connection type accommodates flexible or rigid cables ranging from 4-4 mm², providing versatile installation options.
Key Features
- NEMA 5-15 compliant American type 2P+E socket outlet for North American installations
- 15 Ampere, 127 Volt nominal rating with 50-60 Hz frequency compatibility
- Champagne-colored thermoplastic construction with halogen-free material for safety and environmental compliance
- Two-module design with rocker plate mechanism and snap mounting capability
- IP40 degree of protection and IK04 impact strength rating for general indoor use
- Loop-through function capability for flexible installation configurations
- Screwed terminal connection accommodating 4-4 mm² flexible or rigid cables
- Compact dimensions: 45mm width/height with 26.8mm built-in depth for seamless wall integration
Technical Specifications
| Specification |
Value |
| Product Type | American Type 2P+E Socket Outlet |
| Standard Compliance | NEMA 5-15 (US/CA Type B) |
| Nominal Current | 15 Amperes |
| Nominal Voltage | 127 Volts |
| Frequency Range | 50-60 Hz |
| Number of Modules | 2 modules |
| Number of Socket Outlets | 1 socket outlet |
| Connection Type | Screwed terminal |
| Cable Section | 4-4 mm² (flexible or rigid) |
| Material | Halogen-free thermoplastic |
| Color | Titanium (Champagne) |
| Device Width | 45 mm |
| Device Height | 45 mm |
| Device Depth | 35.3 mm |
| Built-in Depth | 26.8 mm |
| Degree of Protection | IP40 |
| Impact Strength Rating | IK04 |
| Mounting Method | Snap mounting (engagement) |
| Operating Temperature Range | -5 to +50 °C |
| Storage Temperature Range | -10 to +70 °C |
| Voltage Type | AC |
| Number of Active Contacts (Flat) | 2 |
| Protective Contact | Other |
| With Loop Through Function | Yes |
| Reference Number | 570040 |
| EAN Code | 3414970924049 |
Order Legrand Arteor American 2P+E Socket Outlet 15A 127V Champagne | 570040 at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
