Shop Legrand Schuko Socket Outlet 2P+E Screw Terminals Matt Black | 079360L In Iraq Best Prices
Premium Legrand 2P+E Schuko socket outlet with matt black finish, 16A/250V capacity, German standard compliant, featuring screw terminals, halogen-free construction, and modern design for residential and commercial applications.

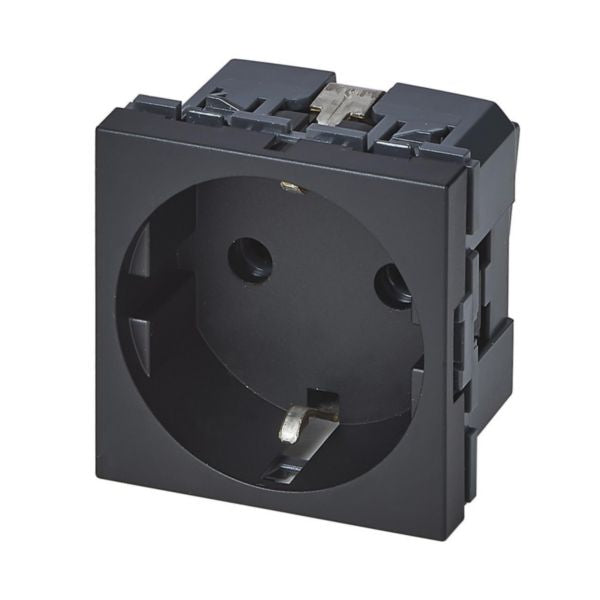

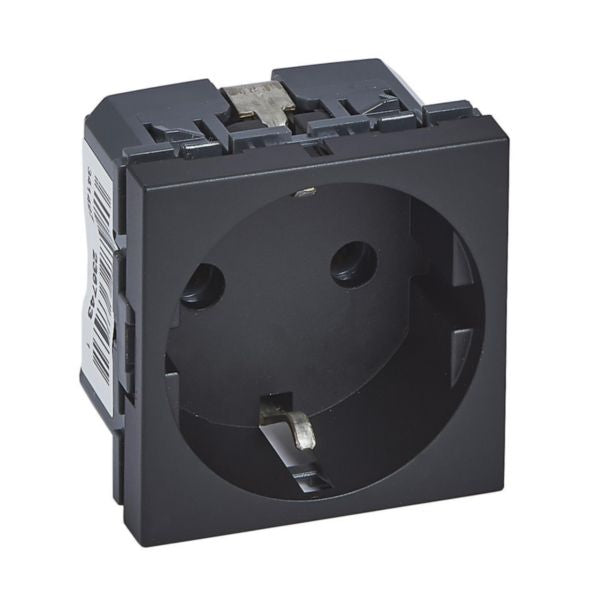

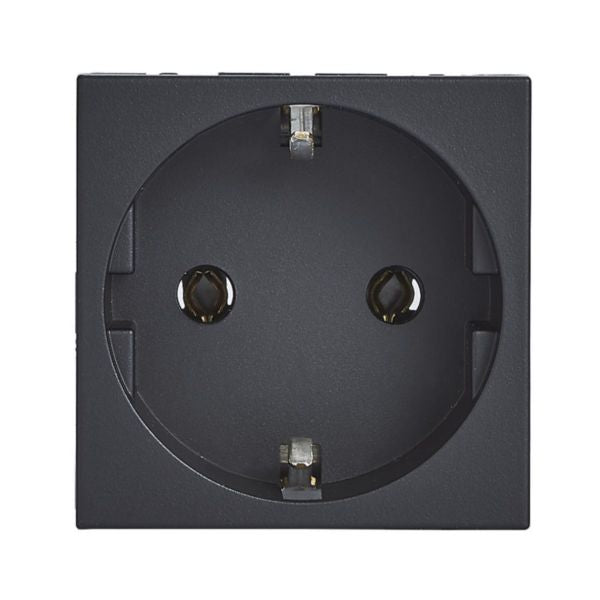

The Legrand 2P+E Schuko Socket Outlet (Reference 079360L) is a premium modular electrical socket designed for residential and commercial applications. This German standard-compliant socket features a protective contact CEE 7/3 (type F) configuration, making it ideal for European electrical installations. The socket outlet is finished in an elegant matt black color that complements modern interior designs while maintaining professional functionality. With a rated capacity of 16A at 250V, this socket is suitable for everyday household and light commercial use.
This socket outlet incorporates advanced safety features including insulated mounting and enhanced design for reliable performance. The device utilizes screw terminal connections that accommodate cable sections ranging from 1.5 to 2.5 mm², providing secure and stable electrical connections. The halogen-free plastic construction ensures environmental compliance and safety standards. The matt black finish provides a contemporary aesthetic while the robust thermoplastic material guarantees durability and longevity. The socket is designed for flush-mounted installation with snap mounting engagement, making it easy to install in standard electrical boxes.
The product meets international safety standards with an IP20 degree of protection and IK04 impact strength rating. Operating temperature range is -5°C to 35°C, with storage capability from -10°C to 70°C. This modular device is compatible with domestic switching systems and features a loop-through function for convenient installation. The terminal marking indication provides clear identification for proper wiring connections. With its combination of safety, durability, and modern aesthetics, this Legrand socket outlet is an excellent choice for any electrical installation project.
Key Features
- German Standard CEE 7/3 (Type F) Schuko Socket Configuration
- 16A/250V Rated Capacity with 50-60Hz Frequency Support
- Matt Black Finish for Contemporary Aesthetic Appeal
- Halogen-Free Thermoplastic Material for Environmental Safety
- Screw Terminal Connections Supporting 1.5-2.5mm² Cable Sections
- Insulated Mounting with Snap Engagement for Easy Installation
- IP20 Protection Degree and IK04 Impact Strength Rating
- Loop-Through Function for Convenient Circuit Extension
- Terminal Marking Indication for Proper Wiring Identification
- Compatible with Domestic Modular Switching Systems
Technical Specifications
| Specification |
Value |
| Product Reference | 079360L |
| EAN Code | 3414972367431 |
| Socket Type | 2P+E Schuko CEE 7/3 (Type F) |
| Rated Current | 16 Amperes |
| Rated Voltage | 250 Volts AC |
| Frequency Range | 50-60 Hz |
| Number of Modules | 2 Module System |
| Number of Socket Outlets | 1 |
| Connection Type | Screw Terminal |
| Cable Section Range | 1.5-2.5 mm² |
| Material | Halogen-Free Thermoplastic |
| Colour | Matt Black |
| Surface Finish | Lacquered Matt |
| Device Width | 45 mm |
| Device Height | 45 mm |
| Device Depth | 37 mm |
| Built-in Depth | 31 mm |
| Minimum Installation Box Depth | 40 mm |
| Installation Type | Flush-Mounted |
| Mounting Method | Snap Mounting Engagement |
| Protection Degree (IP) | IP20 |
| Impact Strength Rating (IK) | IK04 |
| Operating Temperature Range | -5°C to +35°C |
| Storage Temperature Range | -10°C to +70°C |
| Protective Contact Type | Enhanced Contact Protection |
| Insulated Mounting | Yes |
| Loop-Through Function | Yes |
| Terminal Marking | Yes |
| Hinged Lid | No |
| On/Off Switch | No |
| USB Ports | None |
| Smart Home Compatible | No (Not compatible with Apple HomeKit, Amazon Alexa, or Google Assistant) |
Order Legrand Schuko Socket Outlet 2P+E Screw Terminals Matt Black | 079360L at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
