Shop Legrand Schuko Socket 2P+E 2 Modules Inclined 45° Matt Black | 079355L In Iraq Best Prices
Premium 16A 250V German Standard Schuko socket with 2-module inclined 45° configuration, matte black finish, enhanced contact protection, and halogen-free thermoplastic construction for modern residential and commercial installations.

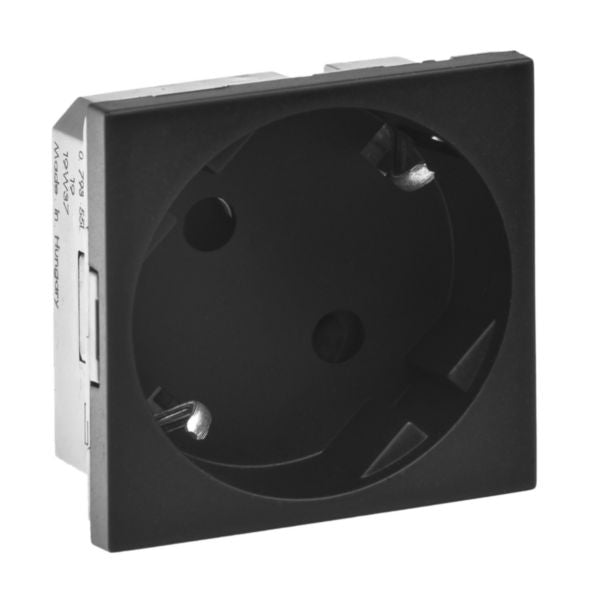

The Legrand 2P+E Schuko 2 Modules Inclined 45 Mat Black socket outlet (REF. 079355L) is a premium German Standard electrical socket designed for modern residential and commercial applications. This flush-mounted socket features a robust thermoplastic construction with a sophisticated matte black finish, providing both durability and aesthetic appeal. The socket is engineered to accommodate two modules in an inclined 45-degree configuration, making it ideal for corner installations and space-constrained environments.
This socket outlet complies with CEE 7/3 (type F) specifications and is rated for 16A at 250V AC with 50-60 Hz frequency compatibility. The device features enhanced contact protection for safety, snap mounting for easy installation, and push-in clamp connection terminals that accept flexible or rigid cables with 2.5mm² cross-section. The halogen-free, lacquered plastic construction ensures environmental compliance and long-term reliability in various operating conditions.
The product is suitable for IP20 protection degree applications and features IK04 impact strength rating, making it appropriate for standard indoor installations. With dimensions of 45mm width x 45mm height x 43mm depth and a built-in depth of 34.5mm, this socket integrates seamlessly into standard flush-mounted installation boxes with minimum 40mm depth. The matte black color operator and rotated central insert provide intuitive operation and elegant integration with contemporary interior designs.
Key Features
- CEE 7/3 (Type F) Schuko socket specification with 16A rated current at 250V AC
- 2-module inclined 45-degree configuration ideal for corner installations and space-saving applications
- Enhanced contact protection system for superior electrical safety and durability
- Halogen-free thermoplastic material with matte black lacquered finish for environmental compliance
- Push-in clamp terminals accepting 2.5mm² flexible or rigid cable connections
- Snap mounting system for quick and secure flush-mounted installation
- IP20 protection degree and IK04 impact strength rating for standard indoor use
- Compact dimensions (45x45x43mm) compatible with standard 40mm minimum depth installation boxes
- Operating temperature range -5°C to +35°C with storage capability to -10°C to +70°C
- 50-60 Hz frequency compatibility for global electrical standards
Technical Specifications
| Specification |
Value |
| Model | Socket outlet with protective contact CEE 7/3 (type F) Schuko |
| Rated Current | 16 A |
| Rated Voltage | 250 V AC |
| Frequency | 50-60 Hz |
| Number of Modules | 2 modules |
| Configuration | Inclined 45 degrees |
| Number of Socket Outlets | 1 |
| Number of Active Contacts (Round) | 2 |
| Protection Degree | IP20 |
| Impact Strength | IK04 |
| Device Width | 45 mm |
| Device Height | 45 mm |
| Device Depth | 43 mm |
| Built-in Depth | 34.5 mm |
| Minimum Installation Box Depth | 40 mm |
| Connection Type | Push-in clamp |
| Terminal Capacity | 2.5-2.5 mm² |
| Cable Section | 2.5-2.5 mm² |
| Cable Type | Flexible or rigid |
| Mounting Method | Flush-mounted with snap mounting |
| Material | Thermoplastic |
| Halogen Free | Yes |
| Surface Protection | Lacquered |
| Surface Finishing | Matte |
| Colour | Black |
| Enhanced Contact Protection | Yes |
| Rotated Central Insert | Yes |
| Operating Temperature Range | -5°C to +35°C |
| Storage Temperature Range | -10°C to +70°C |
| Voltage Type | AC |
| Prewired | Yes |
| Terminal Marking Indication | Yes |
| Reference Number | 079355L |
| EAN Code | 3414971637986 |
