Description

Shop Legrand Mosaic 2P+E French Socket Outlet Automatic Terminals White | 077111L In Iraq Best Prices

Premium 2P+E French socket with automatic push-in terminals, 16A/250V, white finish, enhanced contact protection, and halogen-free construction for safe and reliable electrical installations.

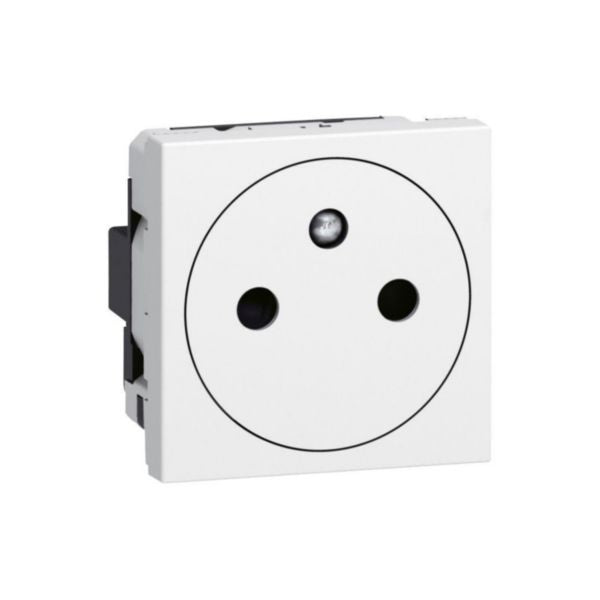

The Legrand 2P+E F/B Automatic Terminals Surface Socket in White is a premium wiring device designed for modern residential and commercial installations. This socket outlet features push-in clamp connection technology, allowing for quick and secure cable installation without the need for traditional screw terminals. The device is equipped with enhanced contact protection to ensure safe electrical connections and is fully compliant with French electrical standards. This modular socket outlet is part of the Legrand Mosaic range and features a sleek white finish (RAL 9003) that complements contemporary interior designs. With a nominal current rating of 16A and voltage of 250V, it provides reliable power distribution for standard household and commercial appliances. The socket incorporates a protective earthing pin and is suitable for IP41 protection rating, making it ideal for various installation environments. The device measures 45mm x 45mm x 38mm and is designed for snap mounting on module frames within flush-mounted installation boxes with a minimum depth of 40mm. It operates reliably across a frequency range of 50-60Hz and temperature range of -5°C to 35°C during operation. The thermoplastic construction is halogen-free, meeting environmental and safety standards. With loop-through functionality, this socket allows for convenient wiring continuity in multi-outlet installations.

Key Features

Push-in clamp connection technology for quick and secure cable installation
Enhanced contact protection ensuring safe and reliable electrical connections
Halogen-free thermoplastic construction meeting environmental standards
Loop-through functionality for convenient wiring continuity in multi-outlet installations
Sleek white finish (RAL 9003) complementing modern interior designs
Snap mounting on module frames for easy installation
Suitable for IP41 protection rating across various environments
Compliant with French electrical standards and NF certifications

Technical Specifications

Specification	Value
Product Type	2P+E French Socket with Automatic Terminals
Nominal Current	16 A
Nominal Voltage	250 V
Frequency	50-60 Hz
Number of Modules	2 modules
Connection Type	Push-in clamp
Cable Section Range	1.5-2.5 mm²
Protective Contact	Round earthing pin
Colour	White (RAL 9003)
Material	Thermoplastic, Halogen-free
Device Dimensions	45mm (W) × 45mm (H) × 38mm (D)
Minimum Built-in Box Depth	40 mm
Built-in Depth	30 mm
IP Protection Rating	IP41
Impact Strength Rating	IK04
Operating Temperature Range	-5°C to +35°C
Storage Temperature Range	-10°C to +70°C
Mounting Method	Snap mounting on module frame
Contact Protection	Enhanced contact protection
Loop Through Function	Yes
Voltage Type	AC
Terminal Marking	Yes
Reference Number	077111L
EAN Code	3414971575967
Certification Standards	NF App Domestic, CEBEC, French Electrical Standards

Order Legrand Mosaic 2P+E French Socket Outlet Automatic Terminals White | 077111L at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
