Shop Legrand 2P+E 10A White Australian Switched Socket 3M | 572125 In Iraq Best Prices
Premium Australian standard 2P+E 10A switched socket with enhanced safety features, white finish, and reliable performance for residential and commercial applications.

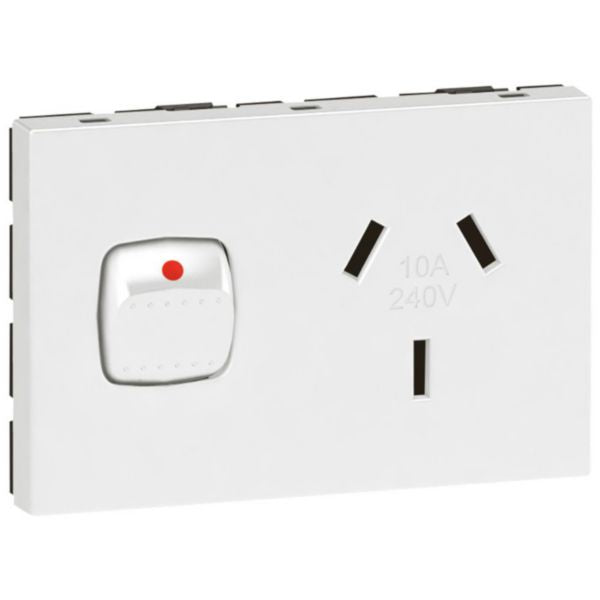

The Legrand 2P+E 10A White Australian Switched Socket 3M (REF. 572125) is a premium electrical outlet designed specifically for Australian standard AS/NZS 3112 type I applications. This high-quality switched socket features a robust plastic construction with thermoplastic material that ensures durability and long-lasting performance in residential and commercial environments. The socket is engineered with enhanced contact protection and comes equipped with a convenient on/off switch mechanism, providing users with complete control over power delivery to connected devices.
This Australian standard socket is rated for 10A at 240V AC with a frequency range of 50-60 Hz, making it suitable for a wide range of electrical appliances and equipment. The white finish (RAL 9003) provides a clean, professional appearance that complements any interior décor. With its compact dimensions of 67.5mm width, 45mm height, and 16.7mm depth, this socket integrates seamlessly into standard installation frameworks. The device features a module frame mounting system with screw fastening, ensuring secure and reliable installation in flush-mounted applications.
The socket incorporates advanced safety features including halogen-free materials and an IP20 protection rating, making it suitable for indoor use in dry locations. The IK04 impact strength rating provides protection against accidental damage during installation and daily use. With flexible or rigid cable connection options supporting 2.5mm² cable sections, this switched socket offers versatile installation capabilities. The operating temperature range of -5°C to 50°C ensures reliable performance across various environmental conditions, while the storage temperature range of -10°C to 70°C demonstrates its robust construction for long-term reliability.
Key Features
- Australian Standard AS/NZS 3112 Type I Compliance
- 10A Rated Current at 240V AC with 50-60 Hz Frequency
- Enhanced Contact Protection for Safety
- Integrated On/Off Switch for Power Control
- Halogen-Free Thermoplastic Construction
- IP20 Protection Rating for Indoor Use
- IK04 Impact Strength Rating
- Compact Module Frame Design
- Flexible or Rigid Cable Connection Options
- Wide Operating Temperature Range -5°C to 50°C
Technical Specifications
| Specification |
Value |
| Model | Australian Standard AS/NZS 3112 Type I |
| Nominal Current | 10 A |
| Nominal Voltage | 240 V AC |
| Frequency Range | 50-60 Hz |
| Number of Socket Outlets | 1 |
| Switchable Outlets | 1 |
| Number of Modules | 2 |
| Material | Thermoplastic (Halogen-Free) |
| Color | White (RAL 9003) |
| Device Width | 67.5 mm |
| Device Height | 45 mm |
| Device Depth | 16.7 mm |
| Built-in Depth | 28.6 mm |
| Protection Rating (IP) | IP20 |
| Impact Strength Rating (IK) | IK04 |
| Connection Type | Screwed Terminal |
| Cable Section | 2.5-2.5 mm² |
| Mounting Method | Module Frame with Screw Fastening |
| Operating Temperature Range | -5°C to 50°C |
| Storage Temperature Range | -10°C to 70°C |
| Contact Protection | Enhanced Contact Protection |
| Switch Function | On/Off Switch Included |
| Switch Operator Color | White |
| Loop Through Function | Yes |
| Voltage Type | AC |
| SKU | 572125 |
| EAN Code | 3245065721256 |
