Professional single-phase control transformer with 63VA capacity, screw terminals, and dual voltage outputs (24/48V) from 230/400V primary input. Compliant with international safety standards and suitable for distribution board installation.

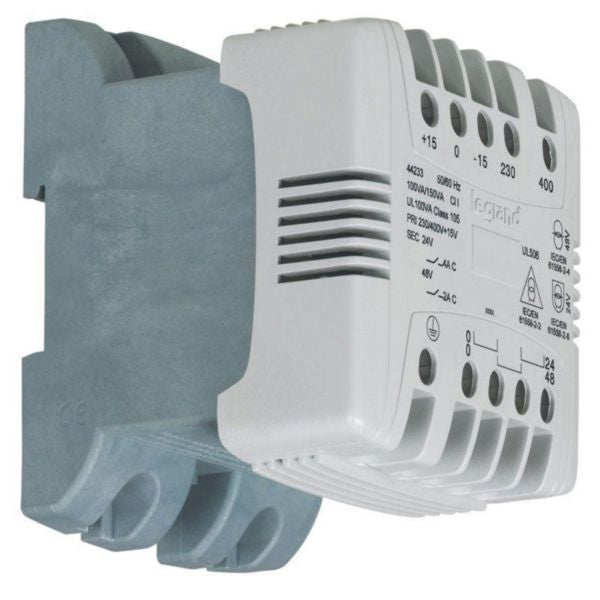

The Legrand 044232 is a professional-grade single-phase control transformer designed for safety and signal isolation applications. This transformer features screw terminals for secure electrical connections and is built to conform to international standards including IEC EN 61558-2-2, IEC EN 61558-2-4, IEC EN 61558-2-6, UL506, and CSA C22-2 No 66. With a rated apparent power of 63 VA, it provides reliable voltage conversion from primary inputs of 230/400V to secondary outputs of 24/48V, making it ideal for control circuits, safety systems, and equipment requiring isolated low-voltage power supply.
This transformer is engineered with multiple safety features including active parts protection by cover up to 1000 VA, interference filtering for electromagnetic compatibility, and the ability to be mounted directly on symmetrical rails for installations up to 250 VA. The unit comes supplied with two coupling strips for secondary 0V/earth connections, ensuring proper grounding and safety compliance. Its compact dimensions of 94mm width, 85mm height, and 113mm depth make it suitable for distribution board installation while maintaining efficient space utilization.
The transformer is suitable for building equipment conforming to standards EN 61131-2, EN 60204-1, and EN 60439-1, making it compatible with modern industrial and commercial electrical systems. With an insulation material class B rating and IP2X degree of protection, this control transformer offers dependable performance in various installation environments. The relative short circuit voltage of 9.01% ensures stable operation under load conditions, while the IK04 degree of impact strength provides durability against mechanical stress.
Key Features
- Dual voltage output capability: 24V or 48V secondary voltage from 230/400V primary input
- Safety and isolating transformer design conforming to IEC EN 61558 international standards
- Secure screw terminal connections with two supplied coupling strips for 0V/earth grounding
- Compact dimensions (94mm x 85mm x 113mm) suitable for distribution board mounting
- IP2X degree of protection with IK04 impact strength and Class B insulation material
- Interference filtering for electromagnetic compatibility and noise reduction
- Direct mounting capability on symmetrical rails for installations up to 250VA
- Active parts protected by cover up to 1000VA for enhanced safety
- Rated apparent power of 63VA with 9.01% relative short circuit voltage
- Suitable for building equipment conforming to EN 61131-2, EN 60204-1, and EN 60439-1
Technical Specifications
| Specification |
Value |
| Product Reference | 044232 |
| Brand | Legrand |
| EAN Code | 3245060442323 |
| Transformer Type | Single-phase control and safety transformer |
| Primary Voltage Options | 215V, 230V, 245V, 385V, 400V, 415V (±15V) |
| Secondary Voltage Options | 24V or 48V |
| Rated Apparent Power | 63 VA |
| UL Rated Power | 63 VA |
| Instantaneous Admissible Power (cos φ = 0.5) | 87 VA |
| Relative Short Circuit Voltage | 9.01% |
| Insulation Material Class | Class B |
| Width | 94 mm |
| Height | 85 mm |
| Depth | 113 mm |
| Degree of Protection (IP Rating) | IP2X |
| Impact Strength Rating (IK) | IK04 |
| Connection Type | Screw terminals |
| Voltage Type | AC (Alternating Current) |
| Ring Core | No |
| PCB Mounting Capability | Not suitable for PCB mounting |
| Distribution Board Compatibility | Yes - suitable for distribution board |
| Direct Rail Mounting | Possible up to 250 VA on symmetrical rail |
| Short-Circuit Proof | No |
| Terminal Marking | Yes - terminal marking indication provided |
| Included Accessories | 2 coupling strips for secondary 0V/earth connection |
| International Standards Compliance | IEC EN 61558-2-2, IEC EN 61558-2-4, IEC EN 61558-2-6, UL506, CSA C22-2 No 66 |
| Building Equipment Standards | EN 61131-2, EN 60204-1, EN 60439-1 |
| Safety Features | Active parts protected by cover up to 1000VA, interference filtering |
