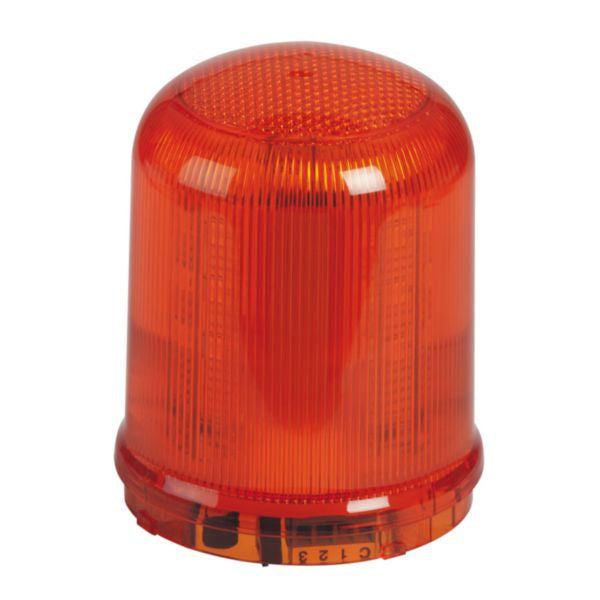

Shop Legrand Large LED Beacon Orange 20 Candelas IP65 IK08 | 41392 In Iraq Best Prices
Professional LED beacon with 20 Candelas brightness, three light effects (steady, rotating, flashing), IP65/IK08 protection, and flexible voltage options (12-230V AC/DC). Energy-efficient at 2.58W with durable plastic construction.
The Large Size LED Beacon is a professional-grade illuminated signalling device designed for industrial and commercial applications requiring reliable visual warning indicators. This beacon features advanced LED technology with three separate light effects including steady, rotating, and flashing modes that can be independently controlled via electrical contacts. With a luminous intensity of 20 Candelas, this beacon provides excellent visibility in various lighting conditions, making it ideal for machinery, emergency systems, and process monitoring applications.
Constructed with durable plastic housing, this beacon meets IP65 and IK08 protection standards, ensuring reliable performance in harsh industrial environments. The device supports multiple voltage options from 12V to 230V (AC/DC), providing flexibility in installation across different electrical systems. The LED lamp is non-exchangeable, ensuring consistent performance throughout its operational life. With dimensions of 92mm width and 107.5mm height, the beacon offers a compact yet highly visible form factor suitable for mounting on control panels and machinery.
The beacon operates efficiently with a power consumption of only 2.58W at 0.27A, making it an energy-efficient solution for continuous monitoring applications. It features three distinct operational modes providing flexibility in signalling requirements. The operating temperature range of -30°C to +55°C ensures reliable performance in diverse environmental conditions. This product requires a compatible base unit (Cat.No 041381, 041382, or 041383) for installation and must be purchased separately.
Key Features
- Three independent light effects: steady, rotating, and flashing modes
- High luminous intensity of 20 Candelas for excellent visibility
- IP65 and IK08 protection ratings for harsh industrial environments
- Flexible voltage supply: 12V to 230V AC/DC compatible
- Energy-efficient LED technology consuming only 2.58W power
- Non-exchangeable LED lamp for consistent long-term performance
- Compact dimensions: 92mm width x 107.5mm height
- Wide operating temperature range: -30°C to +55°C
- Durable plastic housing construction
- Requires compatible base unit for installation
Technical Specifications
| Specification |
Value |
| Product Type | Large Size LED Beacon with Base |
| Manufacturer | LEGRAND |
| Reference Number | 041392 |
| EAN Code | 3414971498143 |
| Luminous Intensity | 20 Candelas |
| Light Effects | Steady, Rotating, Flashing (3 modes) |
| Blinking Frequency | 720 1/min |
| Nominal Voltage | 12V to 230V |
| Voltage Type | AC/DC |
| Power Consumption | 2.58W |
| Current | 0.27A |
| Lamp Type | LED (Non-exchangeable) |
| Colour | Orange |
| Housing Material | Plastic |
| Width | 92mm |
| Height | 107.5mm |
| Mounting Method | Surface mounting (requires compatible base) |
| IP Rating | IP65 |
| IK Rating | IK08 |
| Operating Temperature Range | -30°C to +55°C |
| Number of Modes | 3 |
| Dimmable | No |
| Solar Operation | No |
| ICAO Approval | No |
| Infrared Function | No |
| Compatible Base Units | Cat.No 041381, 041382, 041383 (sold separately) |
Order Legrand Large LED Beacon Orange 20 Candelas IP65 IK08 | 41392 at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
