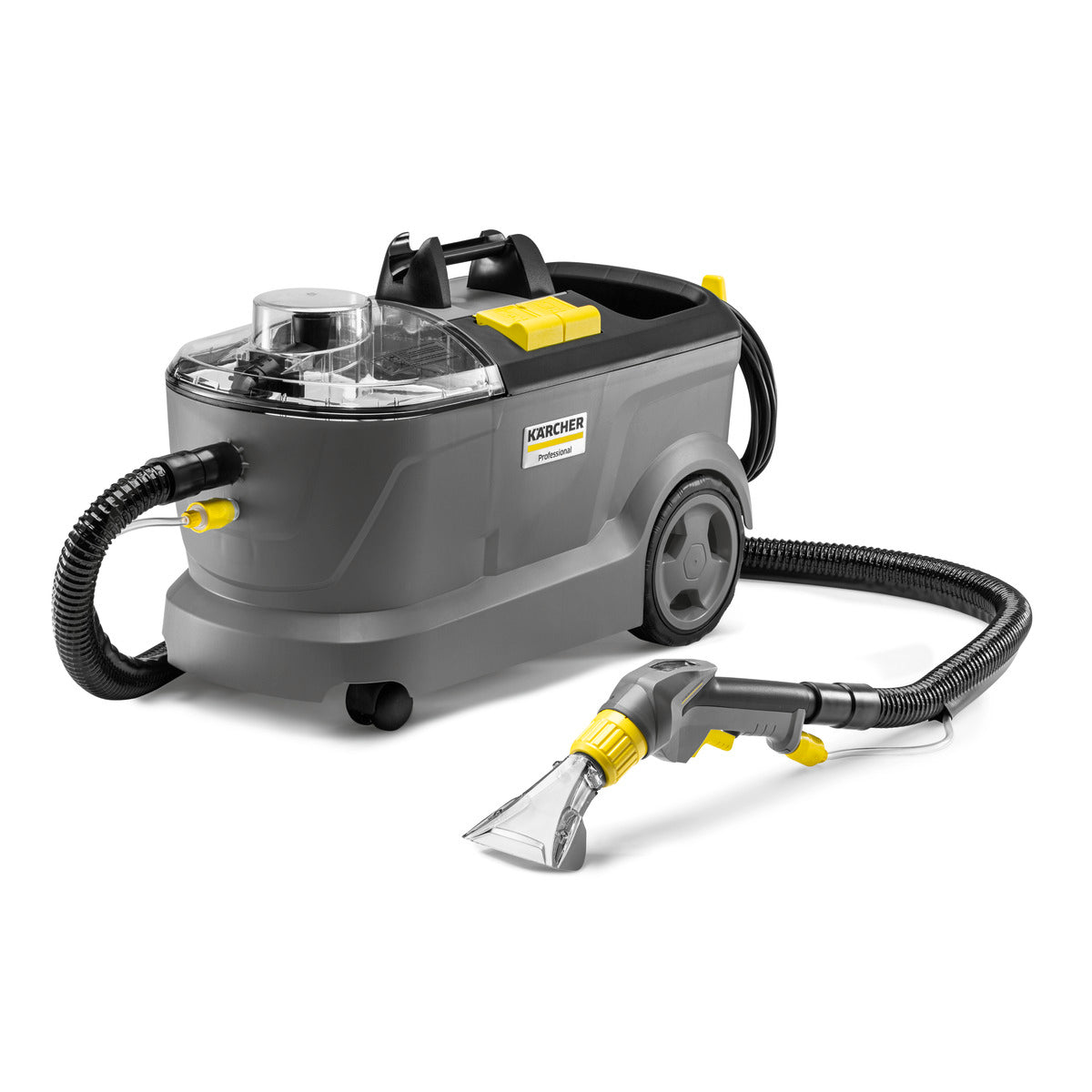

The Karcher Puzzi 10/1 is a professional spray extraction cleaner designed for deep cleaning carpets, upholstery, textile flooring and vehicle interiors. It sprays cleaning solution deep into textile fibres and extracts it again together with loosened dirt, helping achieve hygienic cleaning results and faster drying.
Its strong suction performance comes from a 1250W turbine, while the 40W pump delivers a spray rate of 1 litre per minute at 1 bar pressure. The machine uses separate 10 litre fresh water and 9 litre dirty water capacities through a removable 2 in 1 tank system for easier filling and emptying.

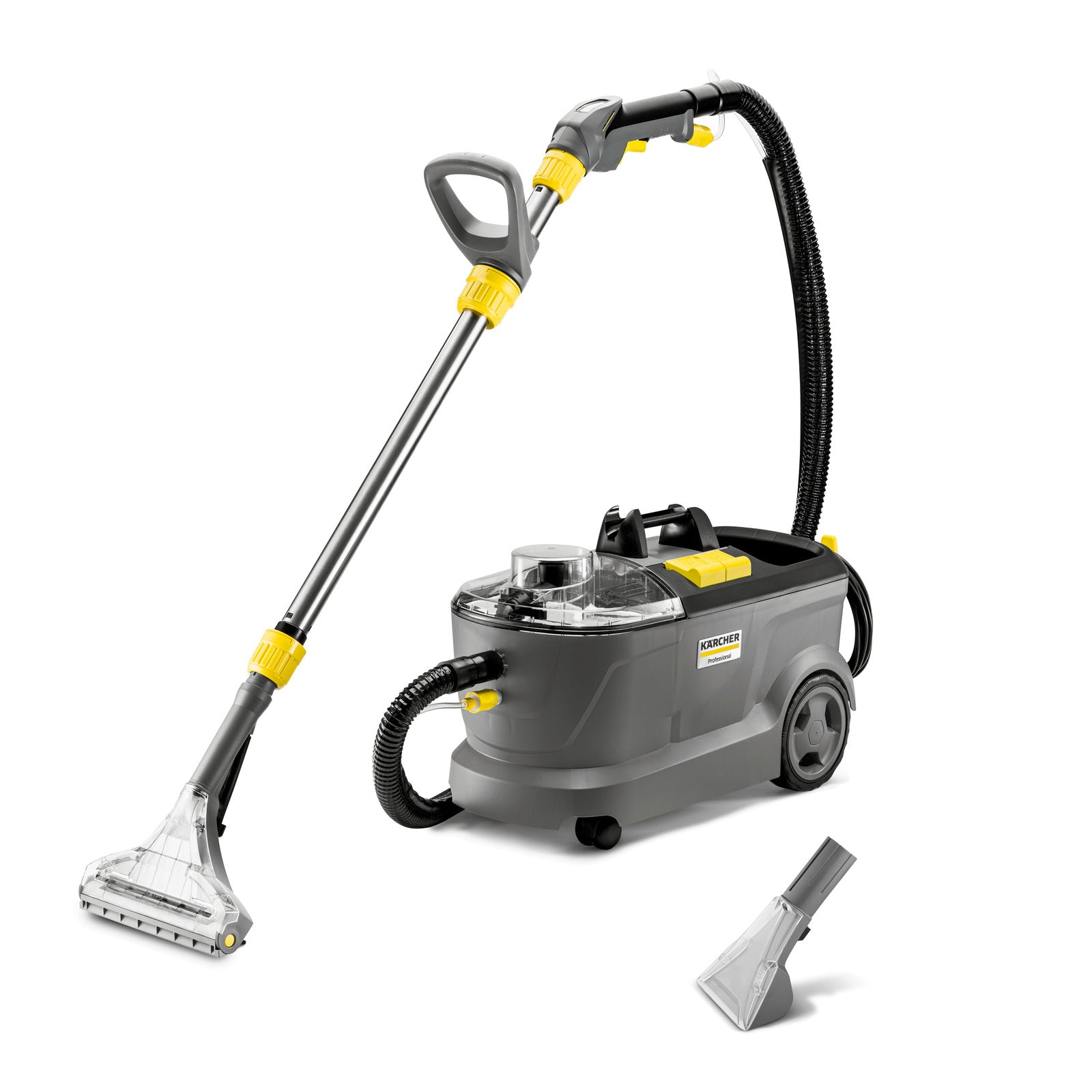

The Puzzi 10/1 is supplied with a 240 mm floor nozzle for carpets and a 110 mm upholstery nozzle, making it suitable for furniture, car seats and other textile surfaces. A 2.5 metre spray and suction hose helps provide practical reach during professional cleaning work.
For easier operation, Karcher equips the machine with two large push buttons that can be operated by hand or foot. It supports both one step cleaning, where spraying and extraction happen together, and a two step method where cleaning solution is first applied and then vacuumed after soaking. Large rear wheels and 360 degree steering rollers improve manoeuvrability.
The compact and robust body is built for professional use in cleaning services, hotels, hospitality environments and vehicle detailing. Integrated accessory storage and a cable hook also make transport and storage more convenient.
Features
- Professional spray extraction cleaner
- Deep cleans carpets and upholstery
- 10L fresh water tank
- 9L dirty water tank
- 1250W suction turbine
- 40W spray pump
- 1 bar spray pressure
- 74 L/s airflow
- 254 mbar vacuum
- 240 mm carpet nozzle
- 110 mm upholstery nozzle
- 2.5 m spray suction hose
- One step and two step cleaning methods
- Large rear wheels with 360 degree rollers
- Integrated accessory storage
- Cable hook for easier storage
Specifications
| Specification |
Details |
| Brand |
Karcher |
| Model |
Puzzi 10/1 |
| Order Number |
1.100-130.0 |
| Fresh Dirty Water Tank |
10 L / 9 L |
| Turbine Power |
1250 W |
| Pump Power |
40 W |
| Air Flow |
74 L/s |
| Vacuum |
254 mbar 25.4 kPa |
| Spray Rate |
1 L/min |
| Spray Pressure |
1 Bar |
| Area Performance |
20 to 25 m²/h |
| Voltage |
220 to 240 V |
| Cable Length |
7.5 m |
| Weight |
10.5 kg |
| Dimensions |
690 x 325 x 440 mm |
