Shop Legrand Kaptika Television Socket Flush Mounting Male Connector White | 782115 In Iraq Best Prices
Premium Kaptika flush-mounting television socket with male connector, white glossy finish, 10 dB tap loss at 860 MHz, IP21 protection, complete with screw-on cable connector and cover plate

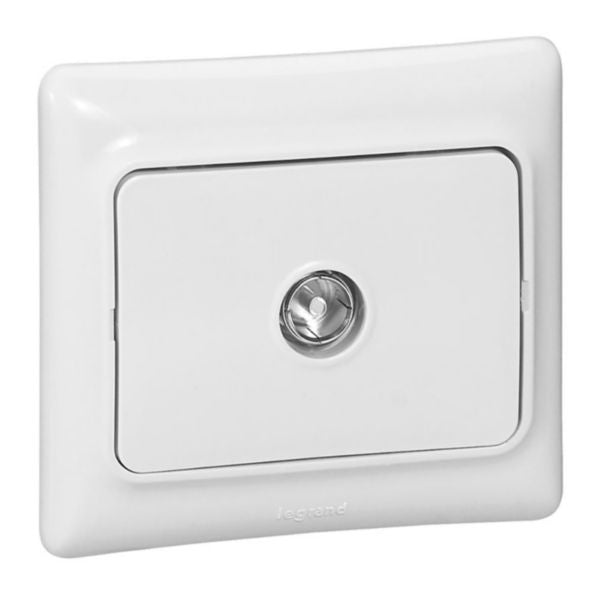

The Kaptika Television Socket is a premium flush-mounting TV outlet designed for modern residential and commercial installations. This high-quality socket features a male connector with 9.52 mm specifications and is engineered to provide reliable signal transmission for television cable connections. The socket is manufactured from durable thermoplastic material and complies with CE directives, ensuring safety and performance standards across European installations.
This television socket is part of the Kaptika range, which specializes in flush-mounting telephone, data, and TV sockets. The white finish (RAL 9003) with glossy surface protection delivers a clean, professional appearance that seamlessly integrates into any modern interior design. The socket features a tap loss specification of 10 dB at 860 MHz, providing excellent signal quality for cable television and multimedia applications. It is supplied complete with a connector to screw onto the cable, making installation straightforward and efficient.
The Kaptika TV socket offers IP21 degree of protection and IK04 impact strength rating, making it suitable for standard residential and commercial environments. With operating temperatures ranging from 5-45°C and storage temperatures from -25-70°C, this socket maintains reliable performance across various climate conditions. The basic element comes with a full cover plate and features screw or claw mounting options for flexible installation in different wall types and configurations.
Key Features
- Flush-mounting design for seamless integration into walls and surfaces
- Male connector 9.52 mm with low tap loss of 10 dB at 860 MHz for superior signal quality
- White glossy finish (RAL 9003) with professional appearance
- IP21 degree of protection and IK04 impact strength for durability
- Complete with full cover plate and screw-on cable connector for easy installation
Technical Specifications
| Specification |
Value |
| Product Model | End socket television outlet |
| Socket Type | TV - Star TV sockets with male connector |
| Mounting Method | Flush-mounted with screw or claw mounting options |
| Connector Size | Male connector 9.52 mm |
| Tap Loss | 10 dB at 860 MHz |
| Number of Outlets | 1 |
| Color | White RAL 9003 |
| Surface Finishing | Glossy finish |
| Material | Thermoplastic |
| Halogen Free | Yes |
| Degree of Protection | IP21 |
| Impact Strength Rating | IK04 |
| Device Width | 88 mm |
| Device Height | 80 mm |
| Device Depth | 41 mm |
| Minimum Built-in Installation Box Depth | 40 mm |
| Operating Temperature Range | 5-45°C |
| Storage Temperature Range | -25-70°C |
| Compliance | CE directive compliant |
| Reference Number | 782115 |
