Shop Legrand Kaptika 2P+E French Standard Socket Outlet Shutters 16A White | 782127 In Iraq Best Prices
Premium 16A 250V French standard socket outlet with child safety shutters, flush-mounted design, halogen-free thermoplastic construction, and enhanced contact protection for residential and commercial use.

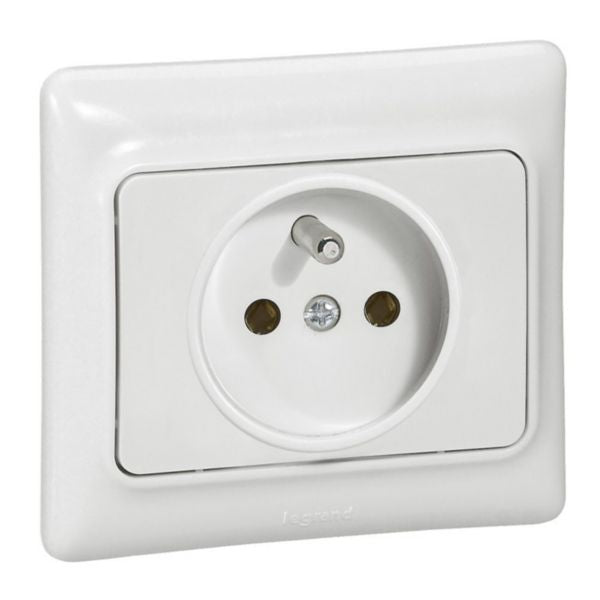

The Kaptika 2P+E French standard socket outlet is a premium flush-mounted electrical outlet designed to meet European safety standards with enhanced child protection features. This 16A, 250V AC outlet features integrated shutters that prevent accidental contact with live electrical contacts, making it ideal for residential and commercial installations where child safety is paramount. The outlet is manufactured by Legrand, a leading global provider of electrical and digital building infrastructure solutions, ensuring superior quality and reliability.
This socket outlet is part of the Kaptika range, which offers German and Italian standard-compliant wiring devices with both white RAL R910 and ivory RAL R113 glossy finishes. The unit comes complete with cover plates and mounting mechanisms, supporting both screw and claw mounting methods for flexible installation options. With a nominal current of 16A and voltage rating of 250V, it accommodates standard European electrical requirements across 50-60 Hz frequencies.
The Kaptika outlet features a thermoplastic construction that is halogen-free, meeting modern environmental and safety regulations. Its compact dimensions (88mm width x 80.5mm height x 43.8mm depth) and 32.55mm built-in depth make it suitable for standard European flush-mounting boxes. The protective contact design with round pins and enhanced contact protection ensures maximum safety, while the loop-through function allows for convenient daisy-chain installation in multi-outlet configurations.
Key Features
- Child Safety Shutters - Integrated protective shutters prevent accidental contact with live electrical contacts
- French Standard Compliance - 2P+E configuration meets French and European electrical standards
- Halogen-Free Construction - Thermoplastic material is environmentally friendly and meets modern safety regulations
- Enhanced Contact Protection - Round protective contacts with IK02 impact strength rating for durability
- Flexible Mounting Options - Supports both screw and claw mounting for easy installation in various configurations
- Loop-Through Function - Allows convenient daisy-chain installation for multi-outlet applications
- Complete Assembly - Supplied with cover plates and all necessary mounting mechanisms
- Compact Design - Optimized dimensions for standard European flush-mounting boxes
Technical Specifications
| Specification |
Value |
| Nominal Current | 16 A |
| Nominal Voltage | 250 V AC |
| Frequency Range | 50-60 Hz |
| Socket Configuration | 2P+E French Standard with Shutters |
| Number of Socket Outlets | 1 |
| Contact Type | Round Protective Contacts |
| Connection Method | Screwed Terminal |
| Material | Halogen-Free Thermoplastic |
| Mounting Method | Flush-Mounted with Screw and Claw Options |
| Device Width | 88 mm |
| Device Height | 80.5 mm |
| Device Depth | 43.8 mm |
| Built-in Depth | 32.55 mm |
| Number of Modules | 2 |
| Degree of Protection | IP20 |
| Impact Strength Rating | IK02 |
| Color | White (RAL 9010) |
| Surface Finish | Glossy |
| Operating Temperature Range | -5 to +40 °C |
| Storage Temperature Range | -25 to +40 °C |
| Cable Section | 2.5-2.5 mm² |
| Cable Type | Flexible or Rigid |
| Enhanced Contact Protection | Yes |
| Loop-Through Function | Yes |
| Reference Number | 782127 |
| EAN Code | 3414970006905 |
Order Legrand Kaptika 2P+E French Standard Socket Outlet Shutters 16A White | 782127 at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
