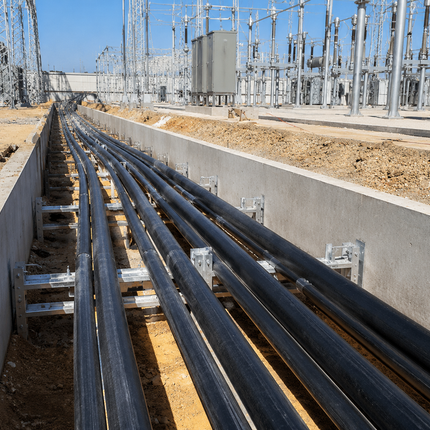

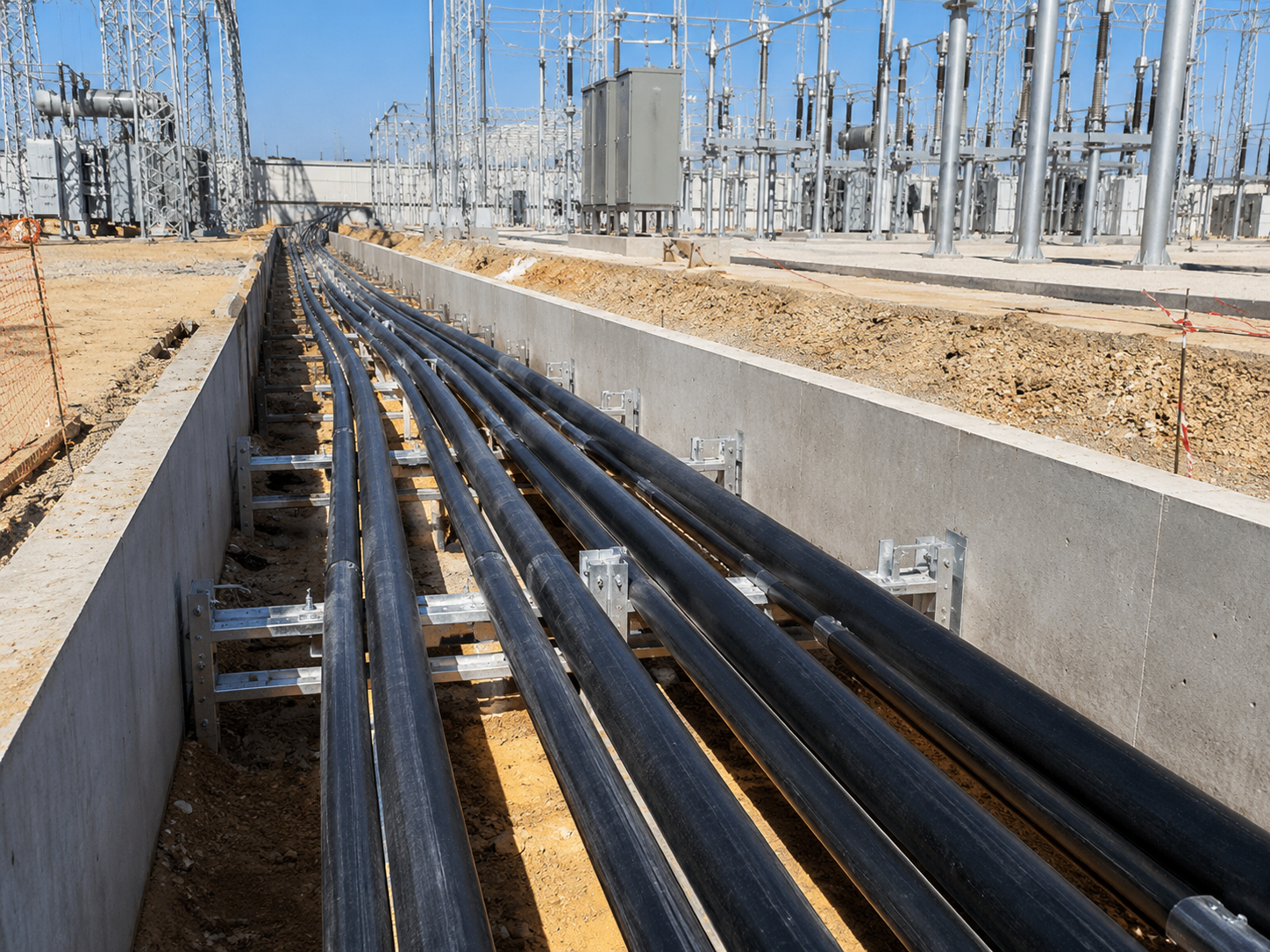

Jeddah Cables Medium Voltage Cable is designed for reliable power distribution in commercial buildings, residential developments, industrial distribution circuits, power supply stations, underground installations, cable ducts, and industrial cable trays. This cable range supports nominal system voltage ratings from 3.6KV up to 36KV, making it suitable for a wide range of medium voltage electrical networks.
The cable is available with copper or aluminium conductors and is constructed with XLPE insulation for strong electrical performance, thermal stability, and long service life. Jeddah Cables states that its medium voltage cables are KEMA type tested and comply with IEC standards, supporting safe and dependable use in demanding indoor and outdoor applications.
This product is listed as one quote-based item with four available cable construction options. Customers can add it to quote and specify the required cable option, voltage rating, conductor material, cable size, number of cores, armouring requirement, jacket type, quantity, and project application.
Features:
- Medium voltage power cable for reliable electrical distribution
- Suitable for commercial, residential, industrial, and infrastructure projects
- Voltage ratings from 3.6KV up to 36KV
- Copper or aluminium conductor options available

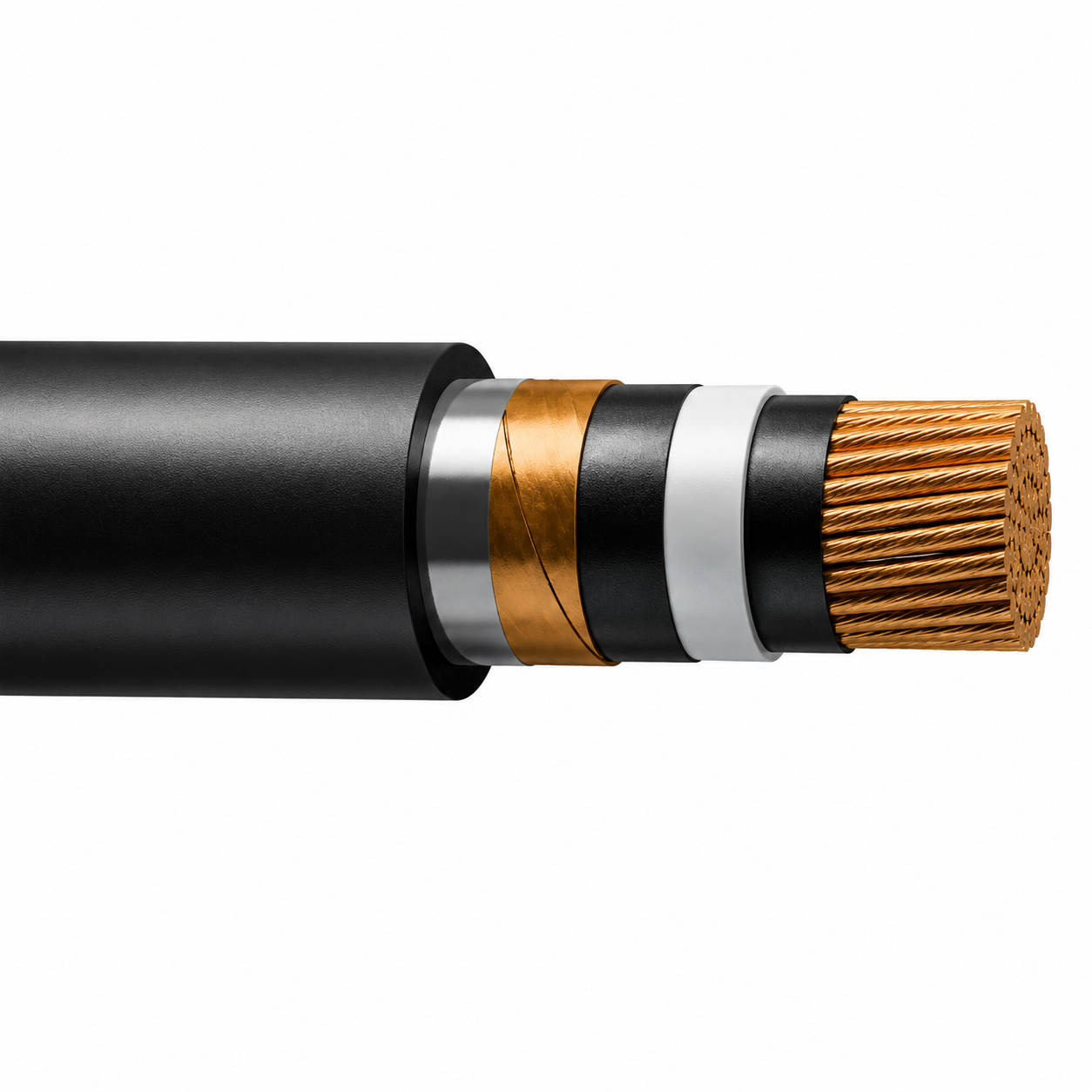

- Circular stranded compacted conductor according to IEC 60228
- XLPE insulation for electrical strength and thermal stability
- Jacket options include PVC, LSHF, and PE
- PVC jacket option offers flame, oil, sunlight, and UV resistance
- Available in single core and multi core constructions
- Available in unarmoured and armoured options
- KEMA type tested and compliant with IEC standards according to Jeddah Cables
- Supplied on non-returnable wood drums or steel drums
Available Cable Options:
| Option |
Cable Type |
Conductor Type |
Standard |
Rated Voltage |
Conductor |
Jacket |
Packing |
| 1 |
Single Core Unarmoured |
Copper or Aluminium |
IEC 60502-2 |
3.6/6 7.2KV, 6/10 12KV, 8.7/15 17.5KV, 12/20 24KV, 18/30 36KV |
Circular Stranded Compacted as per IEC 60228 |
PVC, LSHF, or PE |
Non-returnable wood drums or steel drum |
| 2 |
Single Core Armoured |
Copper or Aluminium |
IEC 60502-2 |
3.6/6 7.2KV, 6/10 12KV, 8.7/15 17.5KV, 12/20 24KV, 18/30 36KV |
Circular Stranded Compacted as per IEC 60228 |
PVC, LSHF, or PE |
Non-returnable wood drums or steel drum |
| 3 |
MV Multi Core Unarmoured |
Copper or Aluminium |
IEC 60502-2 |
3.6/6 7.2KV, 6/10 12KV, 8.7/15 17.5KV, 12/20 24KV, 18/30 36KV |
Circular Stranded Compacted as per IEC 60228 |
PVC, LSHF, or PE |
Non-returnable wood drums or steel drum |
| 4 |
MV Multi Core Armoured |
Copper or Aluminium |
IEC 60502-2 |
3.6/6 7.2KV, 6/10 12KV, 8.7/15 17.5KV, 12/20 24KV, 18/30 36KV |
Circular Stranded Compacted as per IEC 60228 |
PVC, LSHF, or PE |
Non-returnable wood drums or steel drum |
Specifications:
| Specification |
Details |
| Brand |
Jeddah Cables |
| Product Name |
Medium Voltage Cable |
| SKU |
MEDIUM-VOLTAGE-CABLE-36KV |
| Cable Type |
Medium Voltage Power Cable |
| Conductor Type |
Copper or Aluminium |
| Conductor Construction |
Circular Stranded Compacted as per IEC 60228 |
| General Conductor |
Soft annealed stranded circular copper conductor |
| Standard |
IEC 60502-2 |
| Rated Voltage |
3.6/6 7.2KV, 6/10 12KV, 8.7/15 17.5KV, 12/20 24KV, 18/30 36KV |
| Insulation |
XLPE Cross Linked Polyethylene |
| Jacket Options |
PVC with flame, oil, sunlight, and UV resistance, LSHF, or PE LLDPE, LDPE, MDPE, HDPE |
| Available Constructions |
Single core unarmoured, single core armoured, multi core unarmoured, and multi core armoured |
| Application |
Medium voltage power distribution and electrical supply networks |
| Suitable For |
Commercial buildings, residential buildings, industrial distribution circuits, power supply stations, underground installations, cable ducts, and industrial cable trays |
| Packing |
Non-returnable wood drums or steel drum |
| Available Options |
Cable option, voltage rating, conductor material, cable size, number of cores, armouring, jacket type, drum length, and project requirements |
| Quote Note |
Please mention cable option, voltage rating, conductor material, size, number of cores, armouring type, jacket type, quantity, and application when requesting a quote |
Usage Instructions:
- Select the required cable construction from the available four options
- Confirm voltage rating, conductor material, cable size, and number of cores based on project design
- Choose armoured or unarmoured construction according to installation environment
- Select the jacket material according to fire, UV, oil, sunlight, and environmental requirements
- Specify quantity, drum length, and application when requesting a quote
- Installation should be completed by qualified electrical professionals according to applicable standards and project specifications
