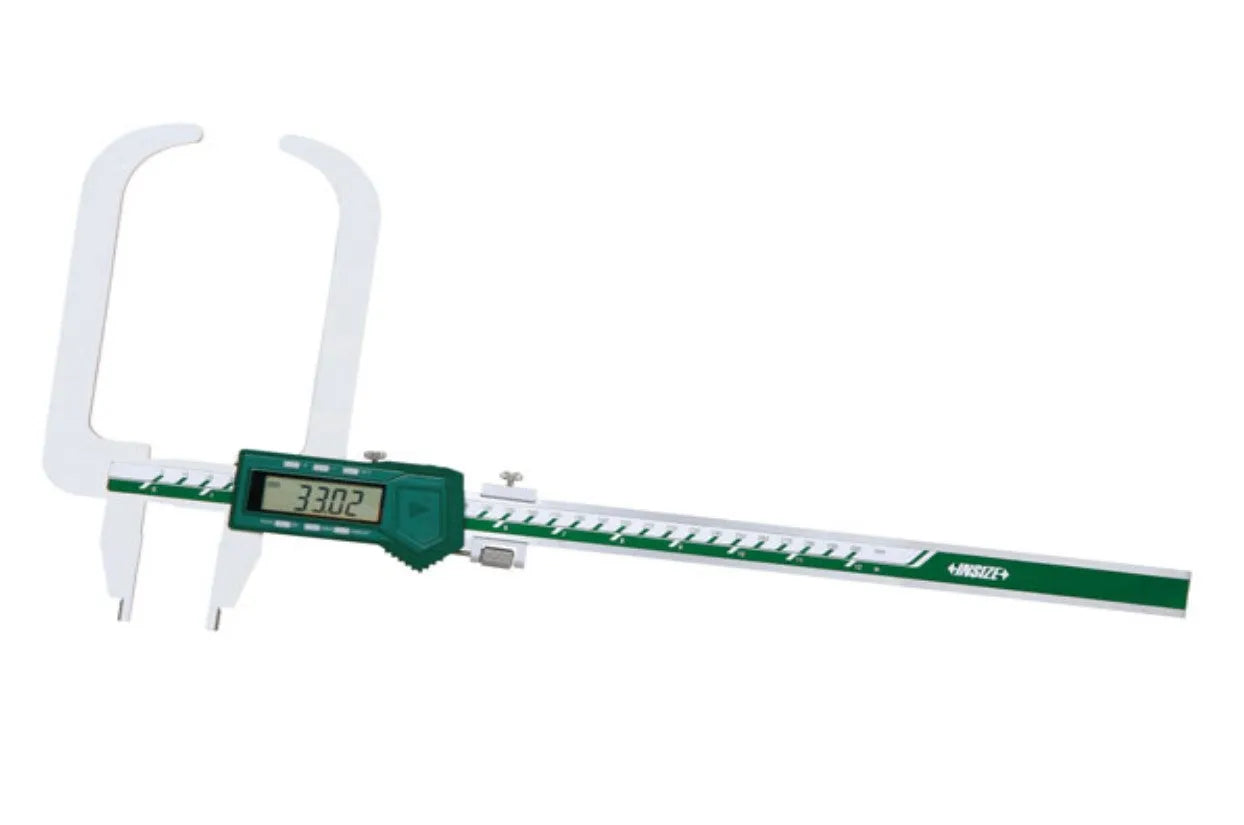

The INSIZE 1536‑300 Electronic Wall Thickness Caliper is designed specifically for measuring the wall thickness of helmets, domes, curved pot bottoms, and other hollow or curved components where a standard caliper won’t suffice.
It provides a measuring range of 0 to 300 mm (0 to 12 inches), with a resolution of 0.01 mm (0.0005″) and accuracy of ±0.05 mm. The display unit supports basic functions including zero, mm/inch conversion, ABS mode, data preset, and an automatic power‑off feature. The instrument is activated by sliding the digital unit, and it runs on a CR2032 battery.
Constructed from stainless steel, the caliper offers durability and reliable performance in workshop and inspection environments. An optional data output cable can be added for recording measurements digitally.
Key Features:
-
Specialized for wall thickness measurement on curved or hollow parts
-
Measuring range: 0–300 mm / 0–12″
-
Resolution: 0.01 mm / 0.0005″
-
Accuracy: ±0.05 mm
-
Digital functions: zero, mm/inch, ABS, data preset
-
Auto power-off; slide-to-activate digital unit
-
Powered by CR2032 battery
-
Made of stainless steel
-
Optional data output via cable
Specifications Table:
| Specification |
Value |
| Measuring Range |
0 – 300 mm / 0 – 12 in |
| Resolution |
0.01 mm / 0.0005 in |
| Accuracy |
±0.05 mm |
| Functions |
Zero, mm/inch, ABS, Data Preset |
| Activation |
Slide-to-activate digital module |
| Auto Power-Off |
Yes |
| Battery |
CR2032 |
| Material |
Stainless Steel |
| Optional Accessory |
Data output cable |
