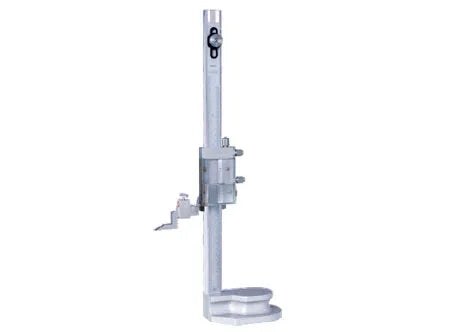

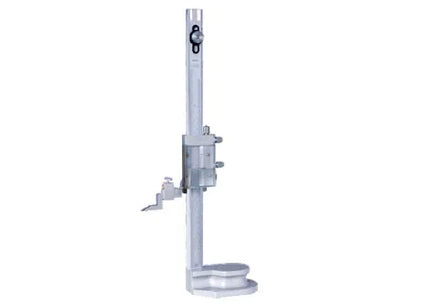

The INSIZE 1250‑1000 Vernier Height Gage is a robust mechanical measuring tool designed for precise vertical positioning, inspection, and layout tasks. It provides a measurement span from 0 up to 1000 mm (0 to 40 inches), with a fine vernier graduation of 0.02 mm (0.001″) and an accuracy tolerance of ±0.07 mm.
This gage features a heavy base for stability, a vertical scale with a vernier slide, and adjustment controls for fine positioning. Typical applications include checking part heights, comparing reference standards, marking out, and inspection in tool rooms, machining shops, and quality labs. Because it is fully mechanical, it is highly stable and not subject to electronic drift or battery issues.
Key Features:
-
Mechanical vernier height gage for vertical measurements
-
Measurement range: 0 to 1000 mm (0 to 40″)
-
Graduation (least count): 0.02 mm / 0.001″
-
Accuracy: ±0.07 mm
-
Stable base and rugged design
-
Fine adjustment mechanism for precise movement
-
Ideal for height checking, part layout, inspection
Specifications Table:
| Specification |
Value |
| Measuring Range |
0 – 1000 mm / 0 – 40 in |
| Graduation / Resolution |
0.02 mm / 0.001 in |
| Accuracy |
±0.07 mm |
| Overall Length (L) |
1310 mm |
| a1 |
270 mm |
| b |
70 mm |
| c |
50 mm |
| d |
40 mm |
