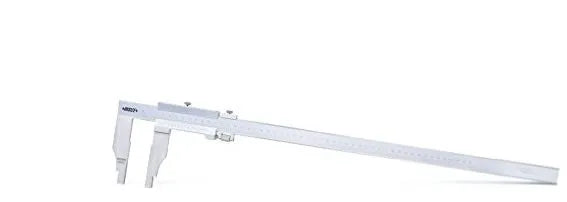

The INSIZE 1208‑1521 Long‑Range Vernier Caliper is designed for high‑precision measurements over large spans. It features a durable stainless steel body, a fine adjustment mechanism, and long jaws tailored for industrial and workshop use.
This caliper offers a measurement range from 0 to 1500 mm (0 to 60 inches) with fine graduation of 0.02 mm (some listings show 0.01 mm) and an accuracy of ±0.11 mm. The fine adjustment feature allows for controlled movements and precise readings. Its long jaw design grants access to deep components and extended lengths, surpassing what standard calipers handle.
Well suited for machine shops, fabrication, and inspection tasks, the 1208‑1521 is ideal when you need to measure large components, rails, shafts, or assemblies with confidence.
Key Features:
-
Long-range vernier caliper for measurements up to 1500 mm
-
Fine adjustment for precise control
-
Robust stainless steel construction
-
Graduation (least count): 0.02 mm
-
Accuracy: ±0.11 mm
-
Long jaws for extended reach
-
No electronics — fully mechanical and maintenance‑free
Specifications Table:
| Specification |
Value |
| Measuring Range |
0 – 1500 mm / 0 – 60 in |
| Graduation / Resolution |
0.02 mm |
| Accuracy |
±0.11 mm |
| Jaw Length (lower) |
150 mm |
| a (jaw width) |
24 mm |
| c dimension |
42 mm |
| d dimension |
150 mm |
| e dimension |
20 mm |
| Overall Length (L) |
1820 mm |
| Adjustment Mechanism |
Fine adjustment |
| Material |
Stainless Steel |
| Display Type |
Vernier (analog) |
